Power over Ethernet HAT (C) - PoE and 802.3af/at power overlay - for Raspberry Pi 3B+/4B - Waveshare 19445

Index: WSR-18771 EAN: 5904422364625

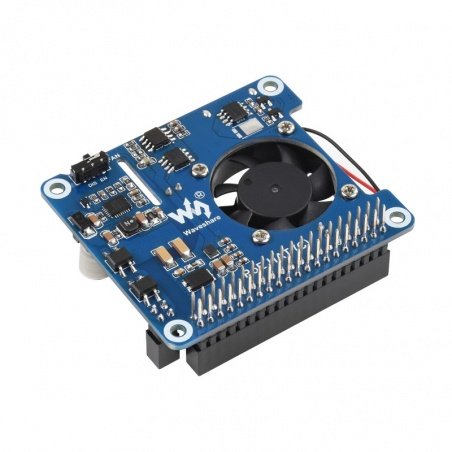

The Power over Ethernet HAT (C) is a module in the form of a HAT overlay that is designed for the Raspberry Pi. It is compatible with 3B+ and 4B versions of the minicomputer. It simultaneously enables 802.3af/at network connection and feeds power to the Raspberry Pi via an Ethernet connector - all using a single cable. The PoE input voltage ranges from 37 V to 57 V. It comes with an integrated MP8676 chip.
Power over Ethernet HAT (C) - PoE and 802.3af/at power overlay - for Raspberry Pi 3B+/4B -...
€20.50
€16.67 tax excl.
Delivery 10 pcs scheduled for 2024-07-19
Waiting for delivery
PayPal payment
Manufacturer: Waveshare
Compatibility: Raspberry Pi

Product description: Power over Ethernet HAT (C) - PoE and 802.3af/at power overlay - for Raspberry Pi 3B+/4B - Waveshare 19445

The Power over Ethernet HAT (C) is a module in the form of a HAT overlay that is designed for the Raspberry Pi. It is compatible with the3B+and4Bversions of the minicomputer. It simultaneously enables802.3af/atnetwork connectionandfeeds powerto the Raspberry Pi via an Ethernet connector - all using a single cable. The PoE input voltage ranges from 37 V to 57 V. It has an MP8676 chip built in. The overlay also has a built-in fan that is responsible for actively cooling the modules. For proper operation of Power over Ethernet HAT requiresa router / switchwith PoE function (Power over Ethernet).


Przedmiotem sprzedaży jest nakładka Power over Ethernet HAT (C), minikomputer Raspberry Pi należy nabyć osobno.The item sold is the Power over Ethernet HAT (C) overlay, theRaspberry Piminicomputer needs to be purchased separately.

Product compatible with Raspberry Pi 3B+ and 4B

The manufacturer provides aproduct wiki pagethat includes a detailed user guide to help you get started with the power module.

Nakładka posiada wentylator, który efektywnie ochładza Raspberry Pi.

The overlay has a fan to effectively cool down the Raspberry Pi.

Special features of the Raspberry Pi overlay

  • Overlay has connectors that are compatible with Raspberry Pi GPIO pins
  • Power over Ethernet (PoE) HAT (C) is compliant with IEEE 802.3af/at networking standard
  • Allows network connection and power supply using a single cable
  • Fully isolated Switch Mode Power Supply (SMPS)
  • Built-in high power active cooling fan

Kit contents

  • Power over Ethernet HAT (C) - PoE and 802.3af/at power overlay
  • Radiator
  • Mounting elements:
    • spacer - 4 pcs.
    • screw - 4 pcs.
    • cap - 4 pcs.

Technical specification of the cap

  • Type: power supply module
  • On board chip: MP8676
  • Compatible with Raspberry Pi version3B+/4B
  • PoE power input: 37 V to 57 V DC
  • Power output:
    • USB Type A: 5 V / 4 A (maximum)
    • 2-pin connector: 12 V / 2 A (maximum)
  • Network Standard: IEEE 802.3af/at PoE
  • Module dimensions: 56.5 mm x 65 mm
Power over Ethernet HAT (C) - nakładka zasilająca PoE i sieciowa 802.3af/at - do Raspberry Pi 3B+/4B

Power over Ethernet HAT (C) - PoE and 802.3af/at network overlay - for Raspberry Pi 3B+/4B.

Package width 11.6 cm
Package height 6.5 cm
Package depth 3.5 cm
Package weight 0.078 kg
