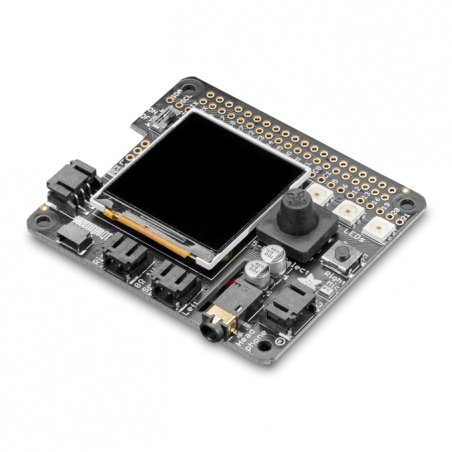

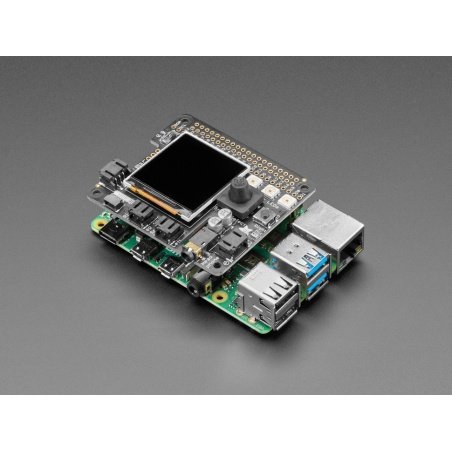

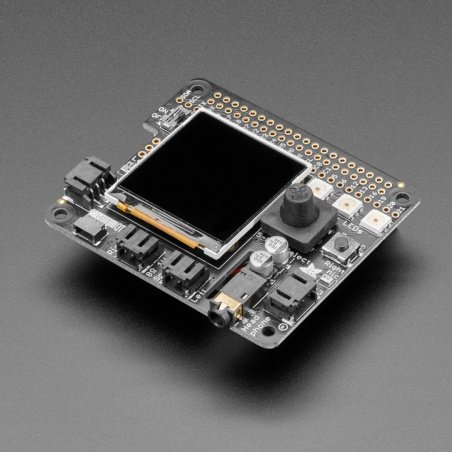

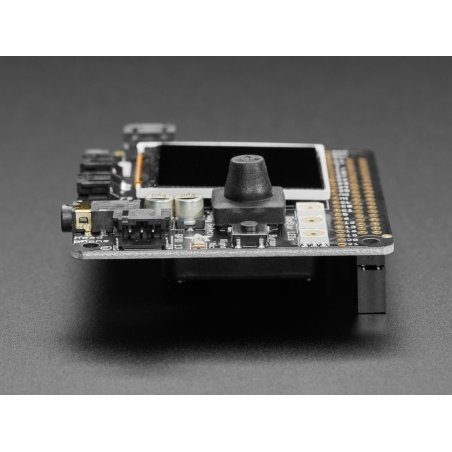

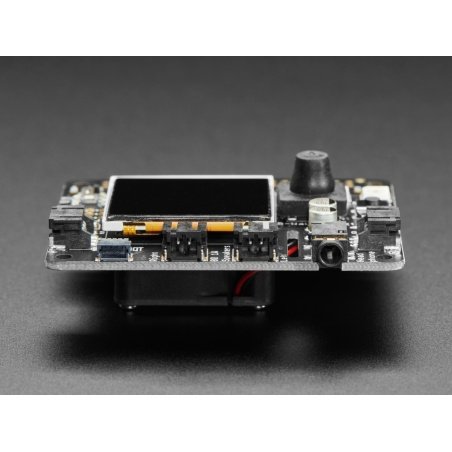

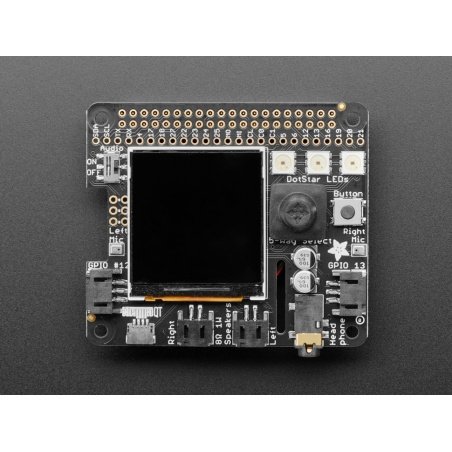

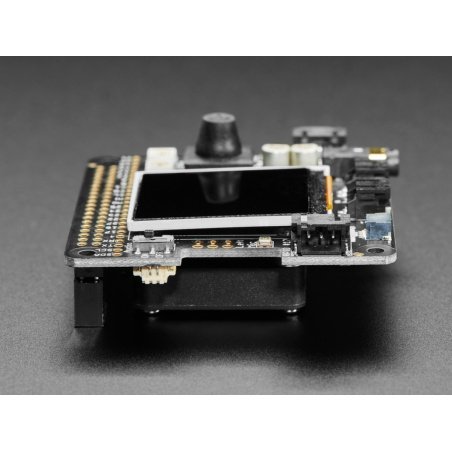

BrainCraft - module for machine learning - overlay for Raspberry Pi 4B - Adafruit 4374

Index: ADA-19088 EAN: 5904422354695

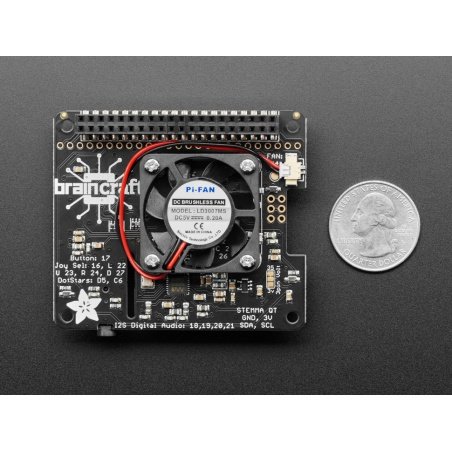

BrainCraft is an overlay for Raspberry Pi 4B that enables machine learning. It has a built-in IPS TFT display, with a diagonal of 1.54'' and a screen resolution of 240 x 240 px. It is also equipped with 5-way joystick, utility button, two microphones located on the left and right side of the module and headphone connector. The manufacturer has also equipped it with three DotStar RGB LEDs and two 3-pin STEMMA QT connectors that can be used to connect more utility buttons, relays, and some NeoPixel LEDs. A controllable mini fan has been placed at the bottom of the BrainCraft overlay to cool down the Raspberry Pi 4B when performing more intensive AI inference calculations.
€48.18
€39.17 tax excl.
Waiting time approx. 3-4 weeks
Only on request
30-day returns
PayPal payment
Manufacturer: Adafruit
Compatibility: Raspberry Pi

Product description: BrainCraft - machine learning module - overlay for Raspberry Pi 4B - Adafruit 4374

BrainCraftisan overlay for Raspberry Pi 4B that enablesmachine learning. It has a built-inIPS TFTdisplay, with a diagonal of1.54''and a screen resolution of 240 x 240 px. It is also equipped with5-way joystick, utility button, two microphones located on the left and right side of the module andheadphone connector. The manufacturer has also equipped it with three DotStar RGB LEDs andtwo 3-pinSTEMMA QTconnectorsthat can be used to connect more utility buttons, relays, and some NeoPixel LEDs. A controllable minifanhas been placed at the bottom of the BrainCraft overlay to cool down the Raspberry Pi 4B when performing more intensive AI inference calculations.


The subject of the sale is BrainCraft overlay.Raspberry Pi 4Bmodule can be purchased separately in our shop.

Functional overview

  • Display- allows you to display text and video on a 240 x 240 px screen
  • Stereo speaker ports for audio playback - designed to convert text to speech, alerts or to create a voice assistant
  • Headphone output - for audio playback through a stereo system, headphones or external speakers
  • Microphoneinput - ideal for creating your own intelligent home assistants
  • 5-way joystick andutility button

Technical specifications of the overlay for Raspberry Pi 4B

  • Compatible with: Raspberry Pi 4B
  • Type: machine learning module
  • Display:
    • Display type: IPS TFT
    • diagonal: 1,54''
    • resolution: 240 x 240 px
  • Controls:
    • 5-way joysick
    • utility button
  • Pinouts:
    • STEMMA QT / Qwiic connector
    • headphone output
    • microphone input
  • 3 DotStar RGB LEDs
Nakładka została wyposażona w wyjście słuchawkowe.

Overlay has been equipped with headphones output.
