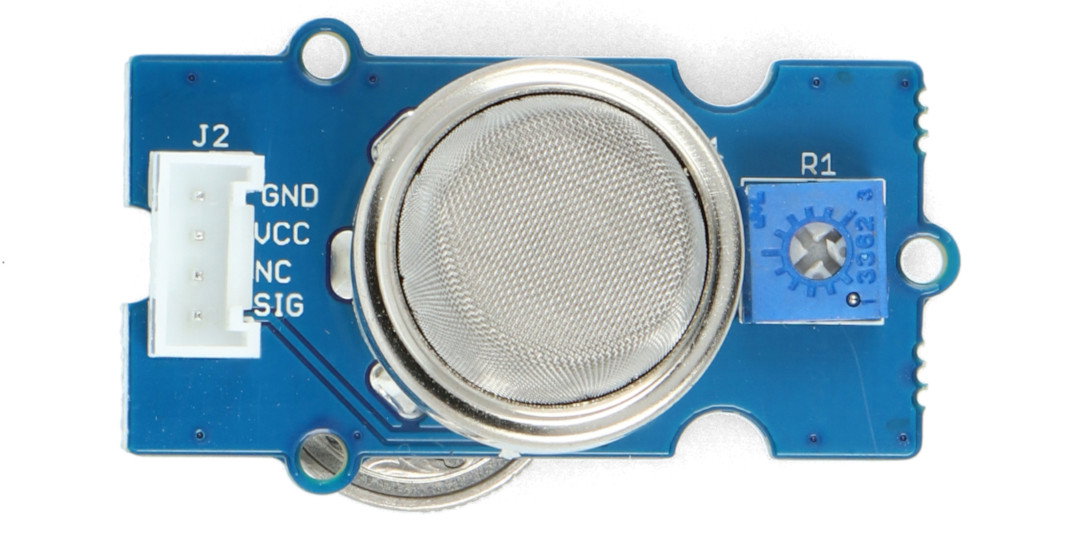

Gas sensor moduleMQ2capable of detecting smoke and leakage of gaseous fuels such as LPG, methane, hydrogen, butane etc. The sensor is compatible withArduinoandRaspberry, thanks to Grove connector it is possible to directly connect the module toGrove-Pi+andGrove Base Shield. The sensor usesanalog interfacefor communication, so in order to use it with Raspberry it is necessary to use Grove-Pi+ overlay orADC.There is a potentiometer on the board to adjust the sensitivity of the sensor.
|
Arduinocompatible product The manufacturer providesa user guideshowing its connection and programming. |
Connection of smoke detector and flammable gases - MQ2
The sensor is mounted in a holder on a PCB, which, thanks to the built-in Grove connector, allows for direct connection of the module to Arduinoor Raspberrybymeans ofGrove-Pi+orGroveBase Shield.Sensor communicates through analog interface and cannot be used with Raspberry itself, it is necessary to use Grove-Pi+ overlay orADC.
| Pin | Description |
|---|---|
| GND | The weight of the system. |
| VCC | The supply voltage is 5 V. |
| NC | Not connected. |
| SIG | Sensor output signal. |
Smoke and flammable gas sensor specifications - MQ2
- Power supply voltage: 5 V
- Sensitivity adjustment range: from 3 kΩto 30 kΩ
- Measurement range: from 300 to 10000 ppm
- Type: solid-state
- Dimensions: 40 x 30 x 20 mm
- Weight: 10,5 g
The kit includes:
- Gas sensor MQ2
- Grove cable
