Grove - VOC and CO2 gas sensor SGP30 - semiconductor MOS - Seeedstudio 101020512

Index: SEE-15542 EAN: 5904422323943

The SGP30 sensor module is used to detect volatile organic compounds (VOC) and carbon dioxide (CO2). It communicates through the I2C interface. On the board there is a Grove connector, which enables quick connection of the module with BaseShield cap. The supply voltage is 3.3 V or 5 V.

Grove - VOC and CO2 gas sensor SGP30 - semiconductor MOS - Seeedstudio 101020512
€19.50
€15.85 tax excl.
Delivery 10 pcs scheduled for 2024-04-05
Waiting for delivery
PayPal payment
Manufacturer: Seeedstudio
Compatibility: Arduino Raspberry Pi

Description: Grove - VOC and CO2 SGP30 gas sensor - MOS semiconductor - Seeedstudio 101020512.

The SGP30 sensor moduleisused to detect volatileorganic compounds (VOC) andcarbondioxide(CO2). It communicates through theI2Cinterface.On the board there is aGroveconnector, which enables quick connection of the module with BaseShield overlayandArduino orRaspberryPi module. Supply voltage is3.3 V or 5 V.

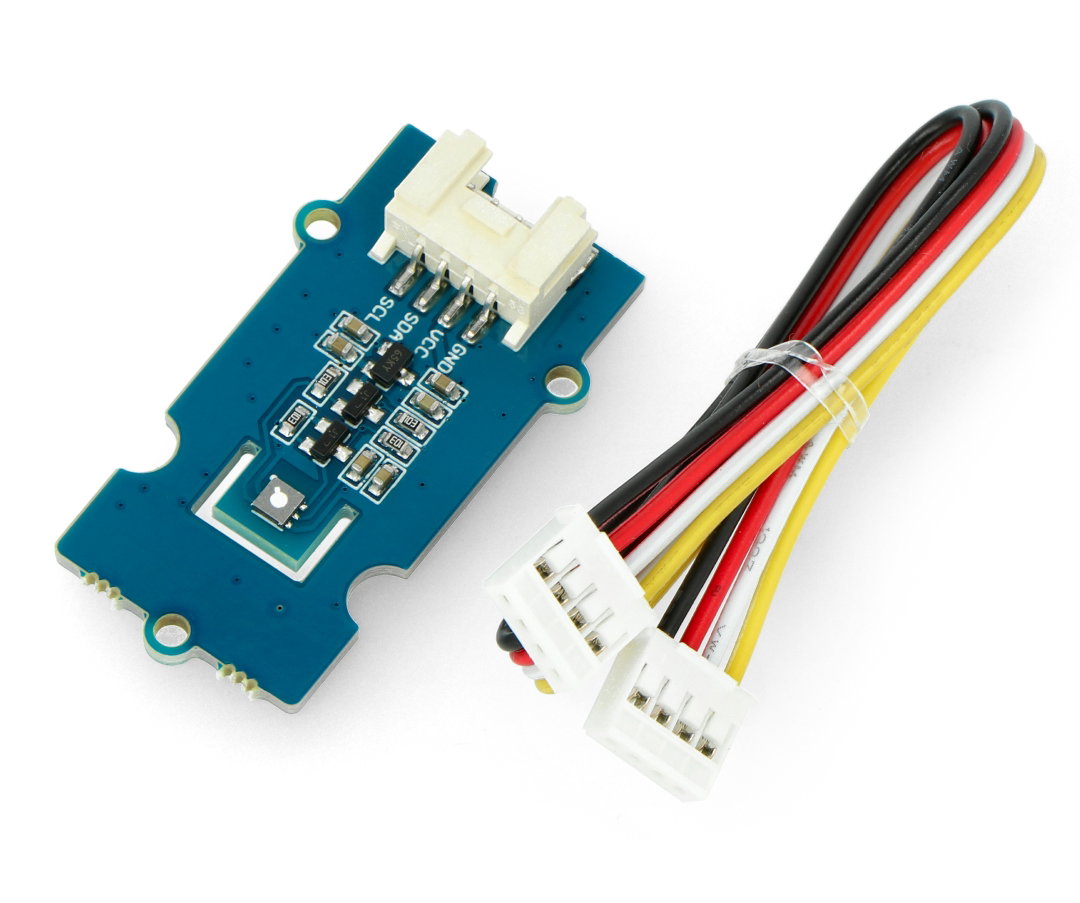

Moduł z czujnikiem gazu SGP30 oraz przewodem Grove

Module with SGP30 gas sensor and Grove cable.

Product compatible with Arduino and Raspberry Pi

The manufacturer has prepared auser guidewith a sample code for Arduino and Raspberry Pi users.

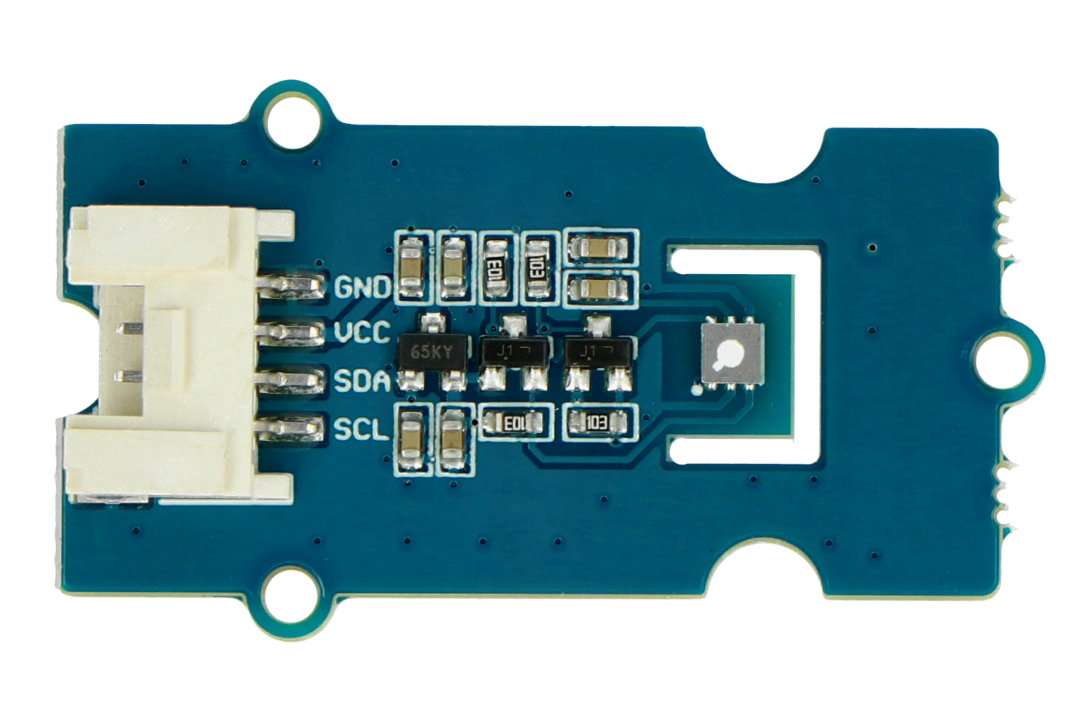

Module outputs with SGP30 sensor

The communication module uses an I2C interface. Thanks to the built-in Grove connector, it can be easily connected to the BaseShield base padfor Arduinoor Raspberry Pi.

Wyprowadzenia czujnika SGP30

Pin Description
GND The weight of the system.
VCC Supply voltage 3.3 V or 5 V.
SDA I2C interface data line.
SCL I2C interface data line.

Main features of VOC and CO2 gas sensor

  • Multi-pixel gas sensor for indoor use
  • Exceptional long-term stability
  • I2C interface with TVOC and CO2eq output signals
  • Low energy consumption

Specification of VOC and CO2 SGP30 gas sensor

  • Power supply voltage: 3.3 V or 5 V
  • Measuring range:
    • TVOC: from 0 ppb to 60000 ppb
    • CO2eq: from 400 ppm to 60000 ppb
  • Frequency of refreshment:
    • TVOC: 1 Hz
    • CO2eq: 1 Hz
  • Resolution:
    • TVOC:
      • from 0 ppb to 2008 ppb: 1 ppb
      • from 2008 ppb to 11110 ppb: 6 ppb
      • from 11110 ppb to 60000 ppb: 23 ppb
    • CO2eq:
      • from 400 ppb to 1479 ppb: 1 ppb
      • from 1479 ppb to 5144 ppb: 3 ppb
      • from 5144 ppb to 17597 ppb: 9 ppb
      • from 17597 ppb to 60000 ppb: 31 ppb
  • Type: solid-state MOS
  • Default I2C address: 0x58
  • Weight: 9 g

Voltage to 3.3 V
Voltage from 5.0 V
Interface I2C
Sensor - type air quality
Package width 3.8 cm
Package height 7 cm
Package depth 0.8 cm
Package weight 0.009 kg
