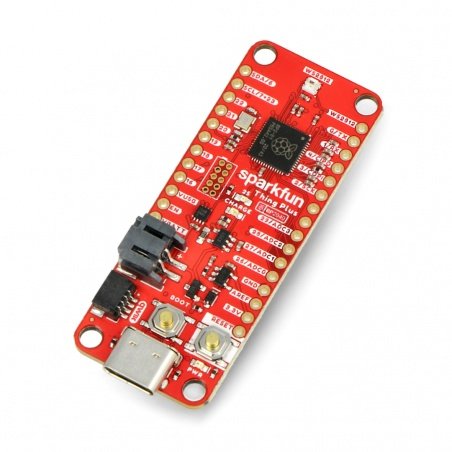

SparkFun Thing Plus - RP2040 - SparkFun DEV-17745
SparkFun Thing Plus - RP2040 - SparkFun DEV-17745
SparkFun Thing Plus - RP2040 - SparkFun DEV-17745
 - zdjęcie 1
SparkFun Thing Plus - RP2040 - SparkFun DEV-17745 - zdjęcie 2
SparkFun Thing Plus - RP2040 - SparkFun DEV-17745 - zdjęcie 3
SparkFun Thing Plus - RP2040 - SparkFun DEV-17745 - zdjęcie 4

SparkFun Thing Plus - RP2040 - SparkFun DEV-17745

Index: SPF-18867 EAN: 5904422370473
A small board based on Raspberry Pi RP2040 microcontroller with dual-core ARM Cortex M0+ clocked at 133 MHz. Equipped with 16 MB of flash memory, 264 kB of SRAM, 6 IOs for SPI Flash, 30 GPIOs and USB Host. Additionally, the board has a memory card slot, a JST connector with charging circuitry for battery connection, and a built-in WS2812 addressable RGB LED and Qwiic connector.
€23.10
€18.78 tax excl.

Available, 24 hours shipping!
(Check quantity)
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: SparkFun

Product description: SparkFun Thing Plus - RP2040 - SparkFun DEV-17745

A small board based on theRaspberry Pi RP2040microcontroller with a dual-coreARM Cortex M0+clocked at133 MHz. Equipped with 16 MB of flash memory, 264 kB of SRAM, 6 IOs for SPI Flash, 30 GPIOs and USB Host. Additionally, the board has amemory cardslot, a JST connector with charging circuitry for battery connection, and a built-inWS2812addressable RGB LED and Qwiic connector.

The RP2040 can be programmed in C/C++ and MicroPython. It has UF2 booting and floating point routines built into the chip. Despite the large RAM, the board has an additional 16 MB of QSPI Flash memory to store the program code.

The board is equipped with a Qwiic connector, which allows easy connection of modules and sensors equipped with the same connector, with an I2C interface.

Manufacturer prepareduser guidefor SparkFun Thing Plus module.
SparkFun Thing PlusSparkFun Thing Plus.
SpakFun Thing Plus RP2040SparkFun Thing Plus with RP2040 chip.

SparkFun Thing Plus specifications

  • Chip: Raspberry Pi RP2040
  • 16 MB Flash QSPI memory
  • JTAG PTH pin
  • Thing Plus:
    • 18 multi-function GPIO pins
    • 4-channel 12-bit ADC with built-in temperature sensor (500 kSa/s)
    • up to 8 2-channel PWM
    • up to 2 UART
    • up to 2 I2C
    • up to 2 SPI
  • USB C connector
  • 2-pin JST connector for Li-Pol battery with 500 mA charging circuit
  • Qwiic connector
  • Buttons:
    • Boot
    • Reset
  • LEDs:
    • PWR: 3.3V power status - red
    • CHG: battery charge status - yellow
    • 25: status / test of the built-in diode - blue (GPIO25)
    • WS2812: addressable RGB LED (GPIO08)
  • Four mounting holes
  • Dimensions: 58.4 x 22.8 mm

RP2040 chip specifications

  • Dual-core ARM Cortex M0+ clocked at 133 MHz
  • 264 kB SRAM on board
  • 6 dedicated IO for QSPI Flash
  • 30 programmable IO
  • SWD interface
  • Timer with 4 alarms
  • Real time clock (RTC)
  • USB 1.1 Host / Device functionality
  • Supported programming languages: C/C++ and MicroPython
Voltage nominal 5 V
UC - Microcontroller RP2040
UC - Core ARM Cortex-M0+
UC - Flash 16 MB
UC - core 2. Dual Core
UC - A/C 12-bit
UC - PWM 16
UC - USB USB C
UC - Connector USB typ C
