Product description: Adafruit KB2040 Kee Boar Driver - board with RP2040 microcontroller - Adafruit 5302
Adafruit Kee Boar Driver is a board based on RP2040 microcontroller. It has two ARM Cortex M0+ cores running at up to 133 MHz, 264 kB of RAM (no EEPROM) and an 8 MB SPI FLASH chip for storing files and CircuitPython / MicroPython code. Additionally, it allows external memory up to 16 MB to be connected via a dedicated QSPI bus. The small sized board has 20 GPIO pins (Including two on the QT port), a STEMMA QT connector and a USB Type C socket.

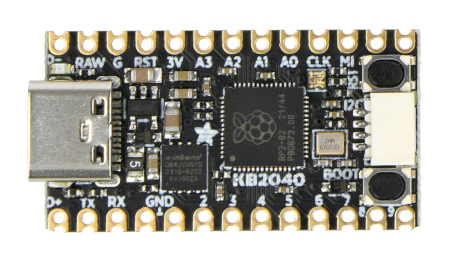

Adafruit KB2040 Kee Boar Driver.

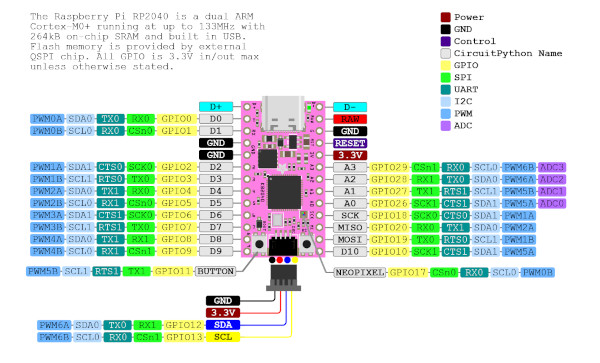

Adafruit KB2040 Kee Boar Driverpinouts.
GPIO pins on the board
- 18 GPIO pins located on the board edges
- 2 GPIO pins on QT port
- Four 12-bit ADCs
- Two I2C, two SPI and two UART peripherals
- 16 PWM outputs - for servos, LEDs etc.
- 10 digital GPIO (not using ADC)
- 4 analog GPIO inputs
Details of the pinouts on the board can be found in the manufacturer's guide.
Functions of Kee Boar Driver module
- Reset and Bootloader buttons to quickly reboot the board. The bootloader button is also available as a generic GPIO input button
- STEMMA QT connector is compatible with SparkFun Qwiic I2C connector and can be used to connect and play I2C devices or as 2 additional GPIO pins
- Built-in 3.3 V voltage regulator (peak current - 500 mA)
- Green LED informing about module power supply
- Compatible with NeoPixel
- RAW output for supplying NeoPixels or other 5 V devices. Jumper at the bottom to bypass the 500 mA fuse (up to 2 A from USB)
- USB type C connector allows access to built-in USB ROM bootloader and serial port debugging
- Additional D- and D+ pinouts for alternative USB connections

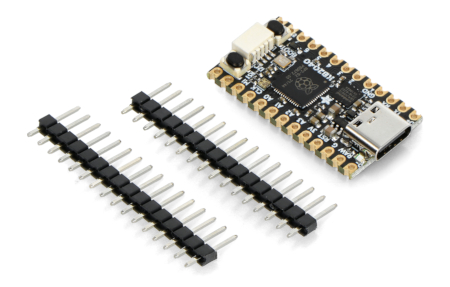

RP2040 microcontroller board - Adafruit 5302.
Specification Adafruit KB2040 Kee Boar Driver
- Processor: Dual ARM Cortex-M0+ / 133 MHz
- 264 kB SRAM
- Support for up to 16 MB of external Flash memory via dedicated QSPI bus
- DMA controller
- Fully interconnected AHB crossbar
- Peripherals with interpolator and integer divider
- Programmable LDO on chip for core voltage generation
- 2 on-chip PLLs for USB and core clock generation
- 30 GPIO pins, 4 of which can be used as analog inputs
- Communications:
- 2 x UART
- 2 SPI controllers
- 2 I2C controllers
- 16 PWM channels
- USB 1.1 and PHY controller, with host and device support
- Dimensions: 35.0 x 17.8 x 4.9 mm
- Weight: 2.8 g
Kit contents
- Adafruit KB2040 Kee Boar Driver - 1 pc.
- Goldpin strip for self-soldering - 2 pcs.
