Product description: Feather RP2040 SCORPIO - 8-channel NeoPixel controller - with RP2040 microcontroller - Adafruit 5650
Feather RP2040 SCORPIO is a compact board manufactured by Adafruit and equipped with a 32-bit dual-core RP2040 microcontroller. Allows you to control NeoPixel LED strips ( WS2812 compatible) and other connected peripherals. The Feather RP2040 SCORPIO has 264 kB of SRAM and 8 MB of QSPI FLASH memory for storing CircuitPython / MicroPython files and code. The board does not have EEPROM memory.
Also check the manufacturer's user guide .

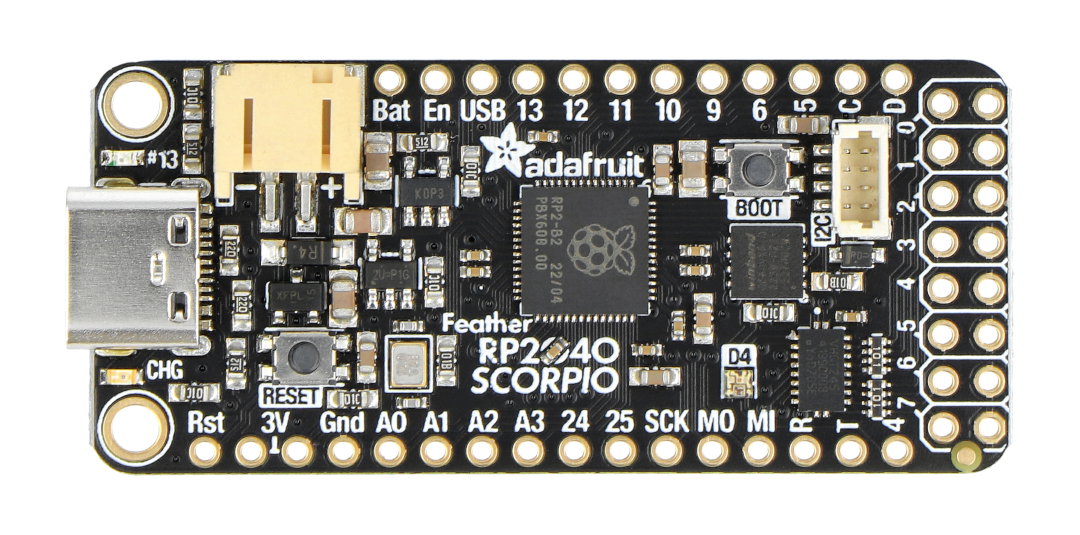

Feather RP2040 SCORPIO - 8-channel NeoPixel controller - with RP2040 microcontroller - Adafruit 5650.

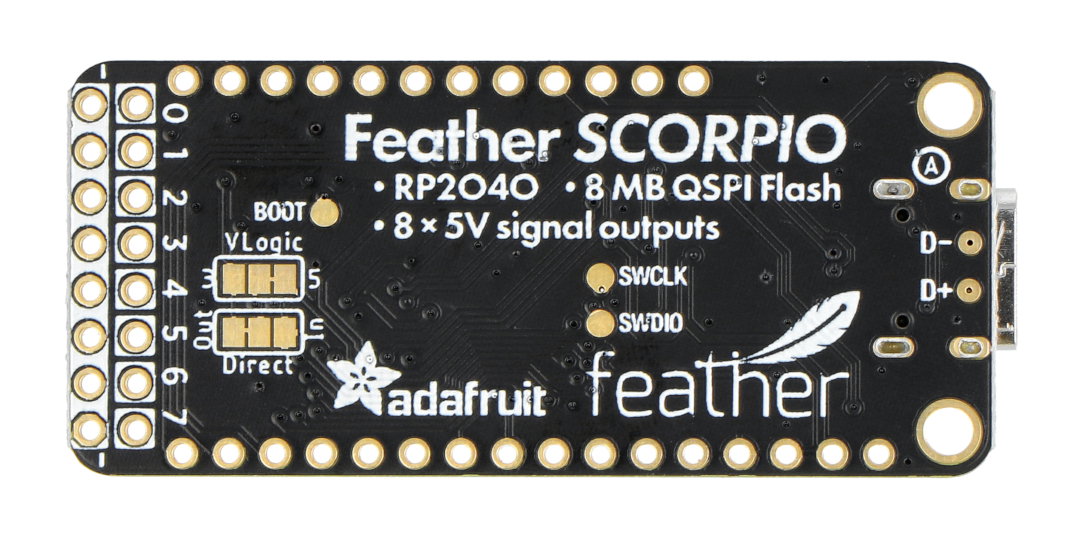

Feather RP2040 SCORPIO - 8-channel NeoPixel controller.
Special features of the Feather RP2040 SCORPIO board
- Dual-core ARM Cortex-M0+ processor clocked up to 133MHz
- 21 GPIO pins, including: 4x 12-bit ADCs (one more than Raspberry Pi Pico), 2x I2C, 2x SPI, 2x UART, 16x PWM outputs (for connecting servos, LEDs and others), 8x additional inputs/ go out
- Built-in STEMMA QT/Qwiic connector that allows you to quickly connect additional peripherals without soldering
- Built-in voltage regulator 3.3 V / 5 V
Technical specification of the RP2040 chip
- Dual-core ARM Cortex M0+ clocked at 133 MHz
- 264 kB onboard SRAM
- 21 GPIO pins
- 4x 12-bit ADCs
- 2x I2C
- 2x SPI
- 2x UARTs
- 16x PWM outputs
- 8x additional inputs/outputs
Technical specification of the Feather RP2040 SCORPIO module
- Type: driver
- Number of channels: 8
- Purpose: for NeoPixel LEDs
- Built-in microcontroller: RP2040
- Leads: solder pads, STEMMA QT / Qwiic connectors
- Board dimensions: 52 x 22.8 x 7.2 mm

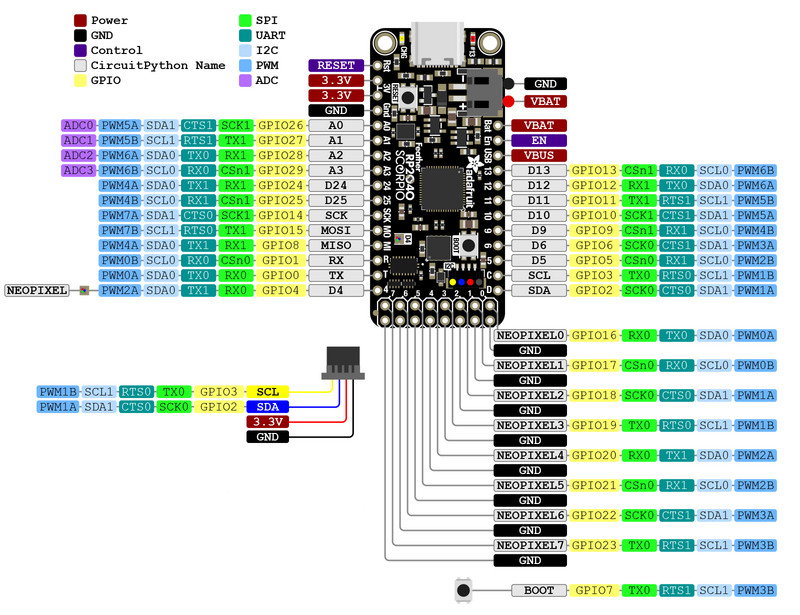

Pin placement.

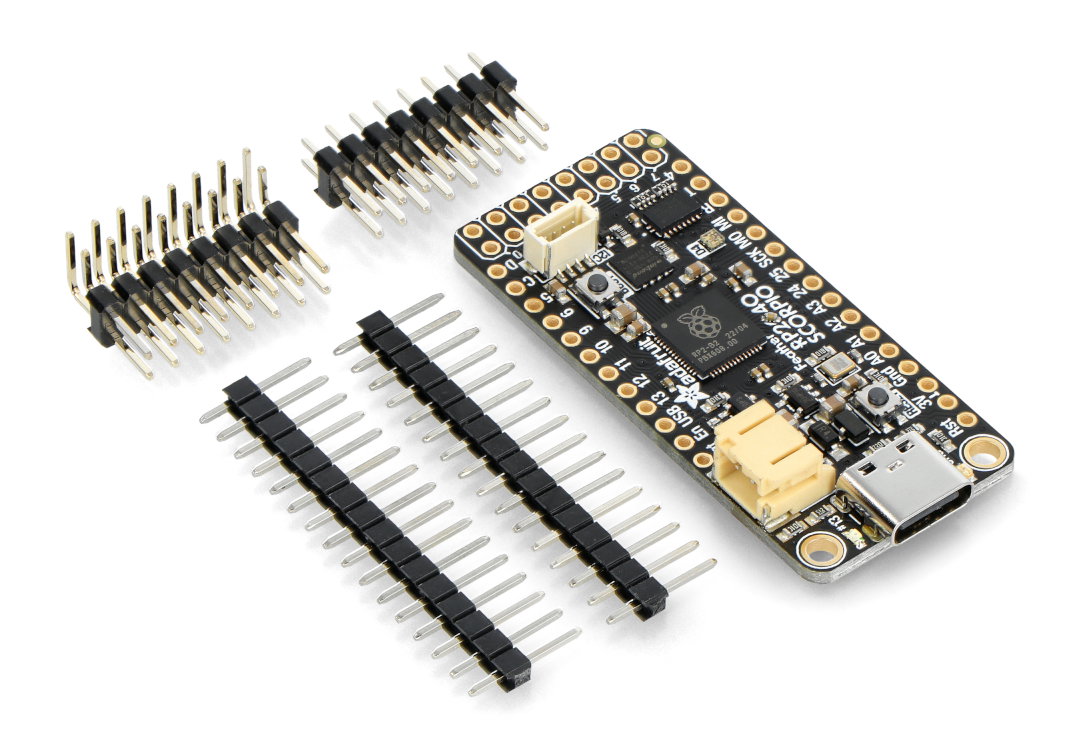

Components included in the set.
Kit contents
- Feather RP2040 SCORPIO - 8-channel NeoPixel controller - with RP2040 microcontroller*
- A set of goldpin connectors - pitch 2.54 mm
