C-Back Driver HAT - overlay with servo driver - STM32F0 - for the M5StickC M5Stack development module

Index: MSS-19422 EAN: 5904422363710

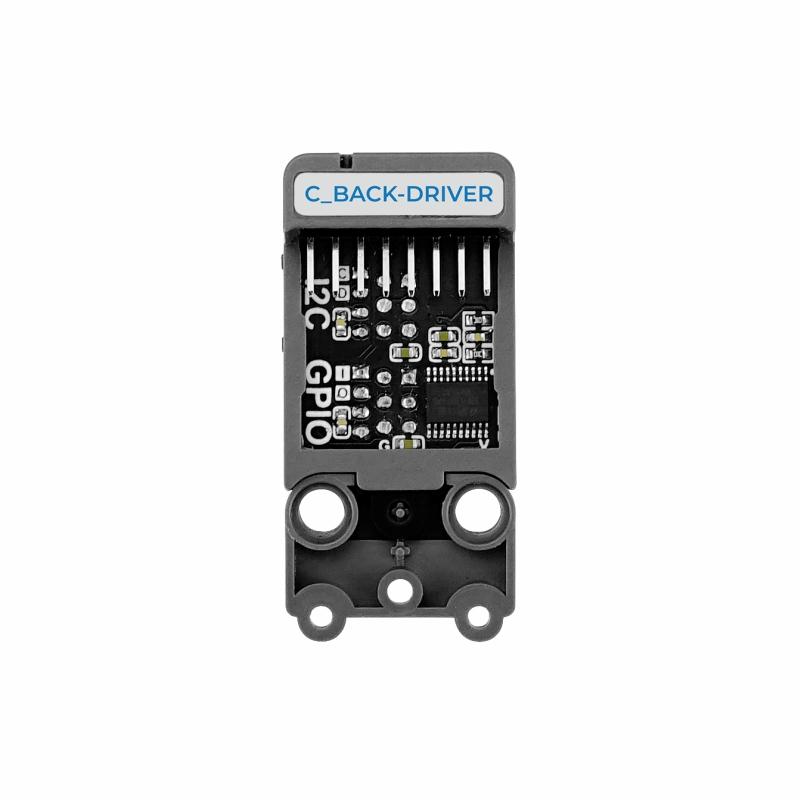

TheC-Back Driver HAT is an extension for the M5StickC and M5StickC Plus. It is based on the STM32F030F4P6 chip, which allows to control the operation of up to 4 servos via PWM. It uses an I2C communication interface with address 0x38. It can be used for general logic level readout and analog ADC input signal. Additionally, the cap has two holes, compatible with the LEGO standard, with which you can easily attach the module to many surfaces.
C-Back Driver HAT - overlay with servo driver - STM32F0 - for the M5StickC M5Stack development...
€9.74 -15%
€8.28
€6.73 tax excl.
Available
Check quantity
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: M5Stack
Compatibility: M5Stick

Product description: C-Back Driver HAT - servo driver overlay - STM32F0 - for M5StickC M5Stack development module

C-Back Driver HATis an extension for M5Stick series modules -M5StickCandM5Stick Plus. It is based on theSTM32F030F4P6chip, which allows to control the operation of up to 4 servos viaPWM. It uses anI2Ccommunication interface with address 0x38. It can be used for general logic level readout and analogADCinput signal. Additionally the cap has two holes, compatible with LEGO standard, with which you can easily fix the module to many surfaces.

C-Back HAT - nakładka ze sterownikiem serwomechanizmu - STM32F0 - do modułu deweloperskiego M5StickC M5Stackck. Przedmiotem sprzedaży jest nakładka C-Back, moduł M5StickC należy kupić oso

C-Back HAT - overlay with servo controller - STM32F0 - for M5StickC M5Stackck development module. The object of sale is the C-Back overlay, theM5StickCmodule must be purchased separately.

C-Back Driver HAT wyposażona w złącza GPIO i I2C.C-Back Driver HAT is equipped with GPIO and I2C connectors.

Features

  • Used in robot control applications
  • Used as a control element for servos
  • 4-channel, allows control of four servos simultaneously
  • Supported programming platforms: Arduino
  • Equipped with two holes compatible with the LEGO standard

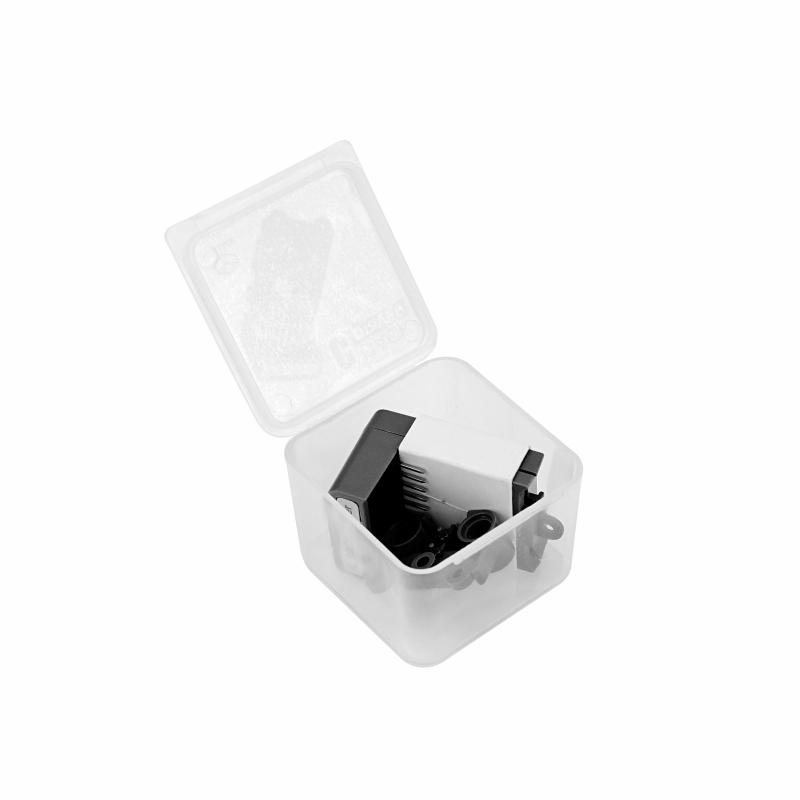

Contents of the kit

  • C-Back Driver HAT module - overlay with servo driver
  • Mounting elements:
    • M2 x 5 screws - 2 pcs.
    • Allen wrench

In our shop you will also find other extensions for theM5Stickdevelopment module, which will allow you to expand any project according to individual needs.

Technical Specification C-Back Driver

  • Add-on forM5StickCandM5Stick Plusdevelopment modules
  • Type: servo controller
  • Number of built-in drivers: 4
  • GPIO and I2C extensions
  • Operating voltage: 3.3 V to 5 V
  • Operating current: 15 mA
  • Communication interface: I2C bus
  • Interface address: 0x38
  • Module dimensions: 23.7 x 49.2 x 21 mm
  • Weight: 9 g

Obsługiwany przez popularne środowiska programistyczne takie jak Arduino.Supported by popular programming environments such as Arduino.
