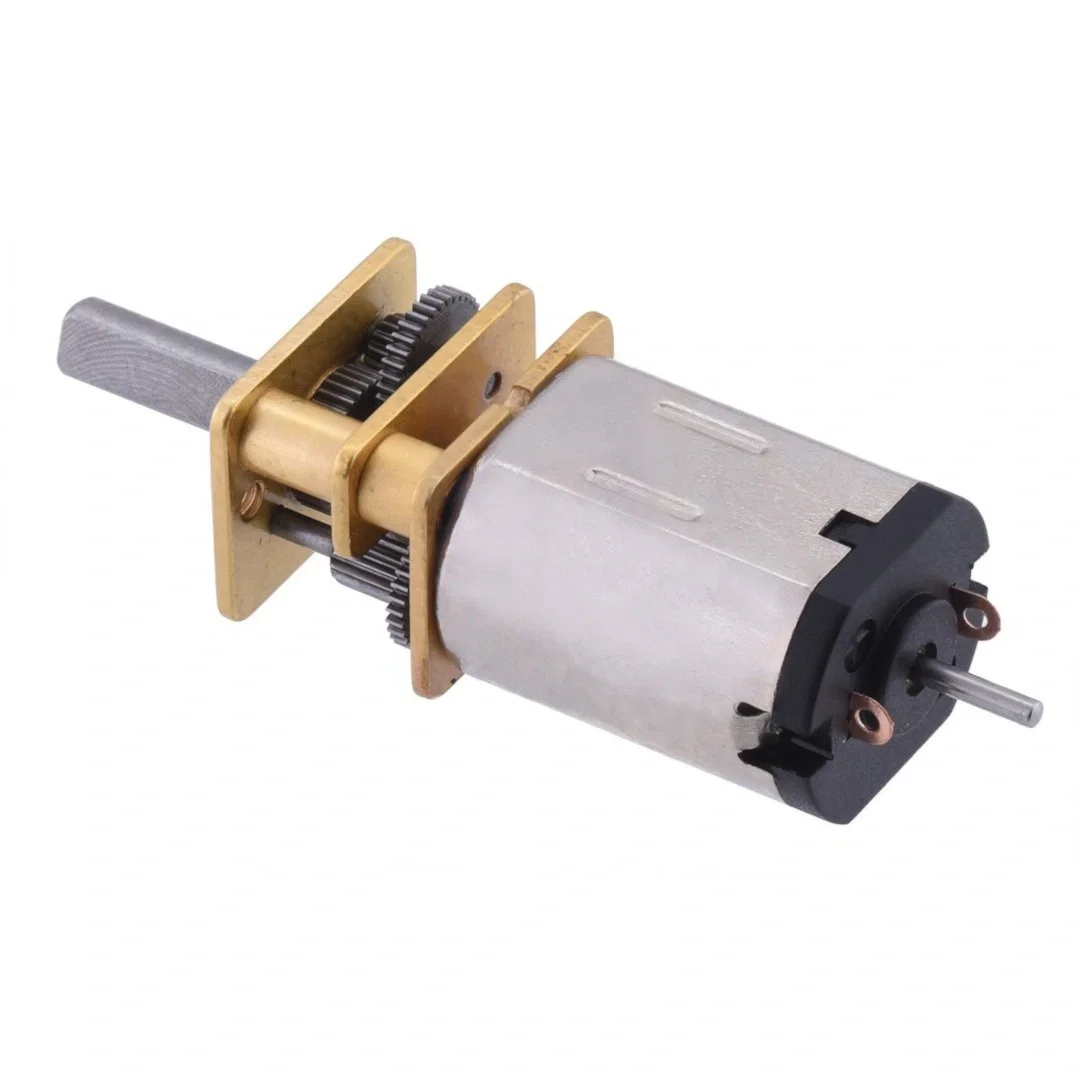

HPCB Motor with 1000:1 Gear - doublesided shaft - Pololu 3080
Polol' s miniature high power engine with durable carbon brushes. It has a 1000:1 gearbox, speed is 32 rpm, and torque is 9.0 kg*cm (0.89 Nm). It has an extended shaft for mounting speed sensors.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: HPCB motor 1000:1 double-sided shaft
Polol's small, lightweight yet powerful engines are used as drive units by robot constructors. The units can be supplied with voltage up to 9 V, the useful power is above 3 V. The optimum voltage at which the power to strength ratio is best is 6 V. This version has an extended shaft with a length of 5.0 mm, allowing the installation of speed sensors - encoders.
HPCB Motor with 1000:1 Gear - doublesided shaft - Pololu 3080.
Botland is an official distributor of Pololu electronics and robotics parts. Countless robots hold at least one component of this brand in their build. Our team guarantees that all Pololu products presented here are original.
Body dimensions.
Specification
- Power supply voltage: 3 V - 9 V
- Unloaded current (6 V): 120 mA
- Current at stopped shaft (6 V): 1600 mA
- Speed without load (6 V): 32 rpm
- Torque (6 V): 9.0 kg*cm (0.89 Nm)
- The gearing: 986.41:1
- Brushes: Carbon brushes, high strength
- Shaft diameter: 3 mm
- Two-sided shaft: Yes
- Body dimensions: 29.5 x 12 x 10 mm
- The weight: 10 g
This version has carbon brushes with increased strength and a shaft on both sides for mountingthe encoders.
| Name | Value |
|---|---|
| Length | 26 mm |
| Voltage to | 3.0 V |
| Voltage from | 9.0 V |
| Motor - gear | 1000:1 |
| Rotation speed | 32 obr/min |
| Torque | 9.0 kg*cm |
| Mass | 10 g |
| Motor - shaft | 3 mm |
| Motor - 2x shaft | yes |
| Voltage nominal | 6.0 V |
| Width | 8.5 cm |
| Height | 10 cm |
| Depth | 1.5 cm |
| Weight | 0.011 kg |
