Description

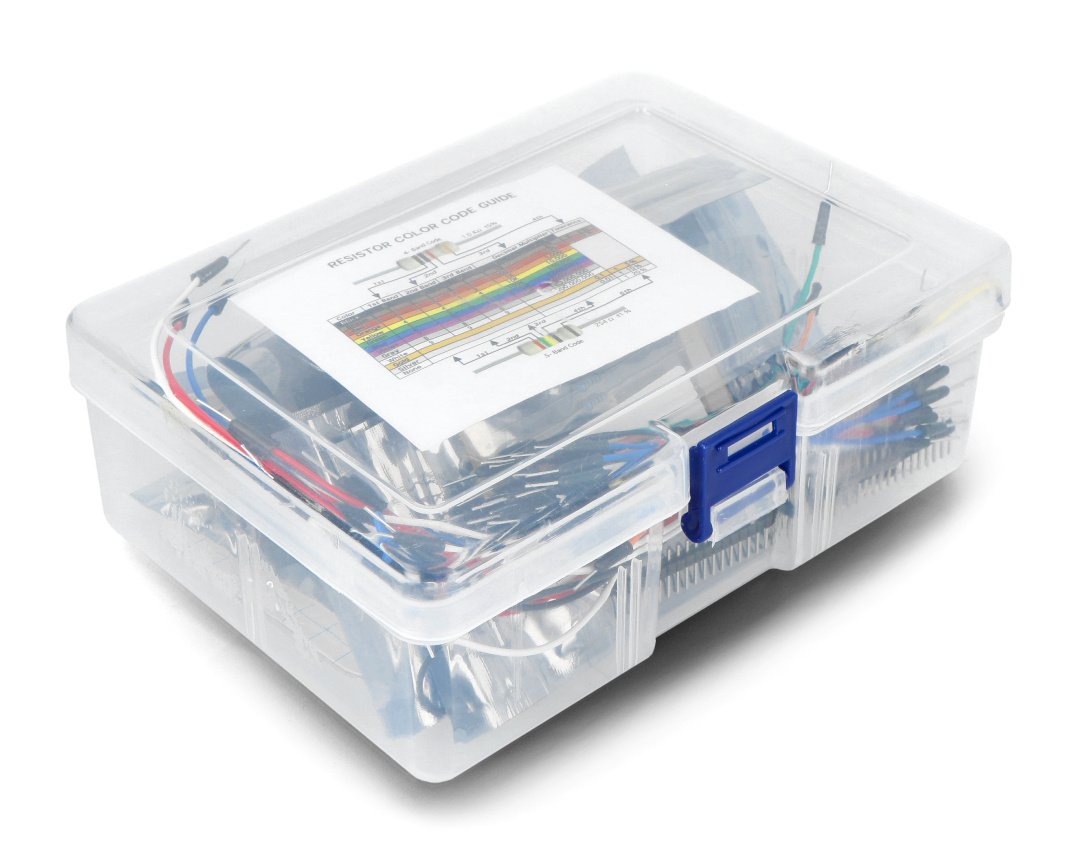

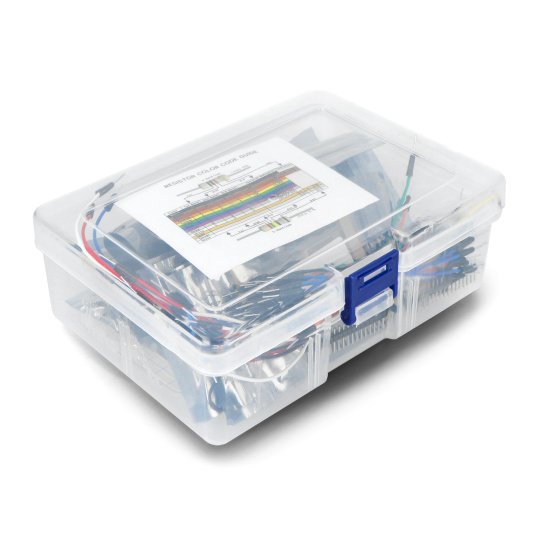

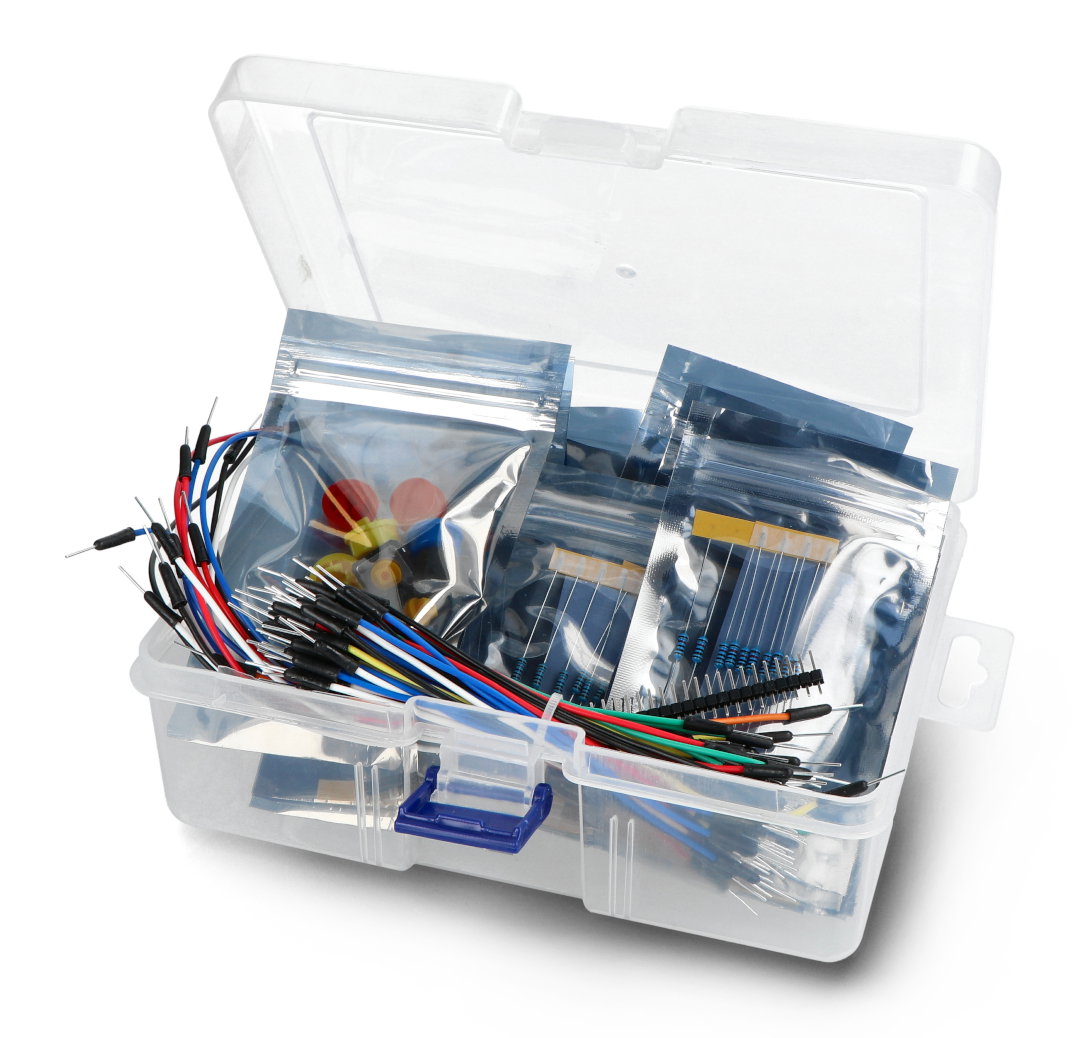

The set of the prototype elements that can be used to create electronic circuits withArduino or other microcontrollers. Kit includes:breadboard,wires,buttons Tact Switch,LEDs,capacitors,resistors, and an array that facilitates identification of resistors, and more. All is closed in a small container.
The set consists of:
| N. p. | Photo | Description |
|---|---|---|
| 1 |  |
Breadboard with 400 holes- 1 PC. Used for fast prototyping. |
| 2 |  |
Passive buzzer- 1 PC. Buzzer without generator of continuous tone. It allows you to add sound alarm. |
| 3 |  |
Active buzzer- 1 PC. Buzzer with continuous tone generator. It allows you to add sound alarm. In the active buzzer, it is sufficient to indicate the low status at its leg to make it make a sound. |
| 4 |  |
Accurate potentiometer of 10 kΩ- 1 PC. It can be used as a knob in the user's interface. |
| 5 |  |
Electrolytic capacitor of 470 uF / 25V - 10 pcs. Passive electric element characterized by the ability to accumulate the electric charge used in filtering of power and to create voltage regulators. It has the capacity of 470 UF / 25 V. |
| 6 | |
Electrolytic capacitor of 10 uF / 50 V - 10. Passive electric element characterized by the ability to accumulate electric charge used in filtering of power supply and to create voltage regulators. It has the capacitance of 10 µf / 50 V. |
| 7 |  |
Button Tact Switch- 8 PCs. Monostable button mounted in a through the hole way THT. Its dimensions are 12 x 12 mm, height of 7 mm. |
| 8 |  |
Shield for Tact Switch- round - yellow - 2 PCs |
| 9 |  |
Shield for Tact Switch-round- red - 2 pieces |
| 10 |  |
Shield for Tact Switch -round- blue - 2 PCs. |
| 11 |  |
Shield for Tact Switch -round- white - 2 PCs |
| 12 |  |
RGB LED - 2 PCs LED emitting the colors from a palette of RGB colors. |
| 13 |  |
Ceramic capacitor 104 - 10 pcs. Passive electric element characterized by the ability to accumulate electric charge used in filtering of power supply and to create voltage regulators. It has a capacity of 100 nF. |
| 14 |  |
Ceramic capacitor22 pf - 10 pcs. Passive electric element characterized by the ability to accumulate electric charge used in filtering of power supply and to create voltage regulators. It has a capacity of 22 PF. |
| 15 | |
The ceramic capacitor101 pf - 10 pcs. Passive electric element characterized by the ability to accumulate electric charge used in filtering of power supply and to create voltage regulators. It has a capacity of 101 PF. |
| 16 | |
Capacitor ceramic103 pf - 10 pcs. Passive electric element characterized by the ability to accumulate electric charge used in filtering of power supply and to create voltage regulators. It has a capacity of 103 PF. |
| 17 |  |
LED - red - 10 PCs. LED emitting light in red color. |
| 18 |  |
LED - green - 10 PCs. The LED that emits light in green color. |
| 19 |  |
LED - yellow - 10 PCs LED that emits light in yellow color. |
| 20 |  |
LED - blue - 10 PCs The LED that emits light in blue color. |
| 21 |  |
Goldpin strap 1x40- 1 PC. |
| 22 |  |
Connecting male-to-male wires - 65 PCs. |
| 23 |  |
Resistor100Ω - 10 PCs. Passive electric element that is used to limit the current of an electric circuit. |
| 24 | |
Resistor220Ω - 10 PCs. Passive electric element that is used to limit the current of an electric circuit. |
| 25 | |
Resistor330Ω - 10 PCs. Passive electric element that is used to limit the current of an electric circuit. |
| 26 | |
Resistor1 kΩ - 10 PCs. Passive electric element that is used to limit the current of an electric circuit. |
| 27 | |
Resistor4.7 kΩ - 10 PCs. Passive electric element that is used to limit the current of an electric circuit. |
| 28 | |
Resistor10 kΩ - 10 PCs. |
| 29 | |
Resistor47kΩ - 10 PCs. Passive electric element that is used to limit the current of an electric circuit. |
| 30 | |
Resistor100kΩ - 10 PCs. Passive electric element that is used to limit the current of an electric circuit. |
| 31 |  |
Card with the colors of resistor - 1 PC. Card to facilitate the distinction of the resistance of the resistor basing on the colored bands on its body. |
| 32 |  |
Plastic container. |
