Product description: SparkFun GPS-RTK Dead Reckoning Kit - GPS module with ZED-F9R chip and SMA antenna - SparkFun KIT-23452
SparkFun GPS module with u-blox ZED-F9R chip using Automotive Dead Reckoning (ADR) technology. Using sensor fusion technology, it provides incredible accuracy by combining GNSS measurements, 3D IMU data, wheel signals and vehicle dynamics model. The kit supports simultaneous reception of four GNSS systems: GPS , GLONASS, Galileo and BeiDou , guaranteeing positioning with an accuracy of 0.1 m using RTK correction. Maintains precise positioning even in places with weak GNSS signal, such as tunnels, cities or underground parking lots. ZED-F9R works in "rover" mode, so it requires connection to an RTK base . The kit also includes a multi-band GNSS antenna with a magnetic base and a USB A to USB C cable for easy connection and installation.
The manufacturer has prepared a detailed user guide that will help you get started with the module. Check it out!

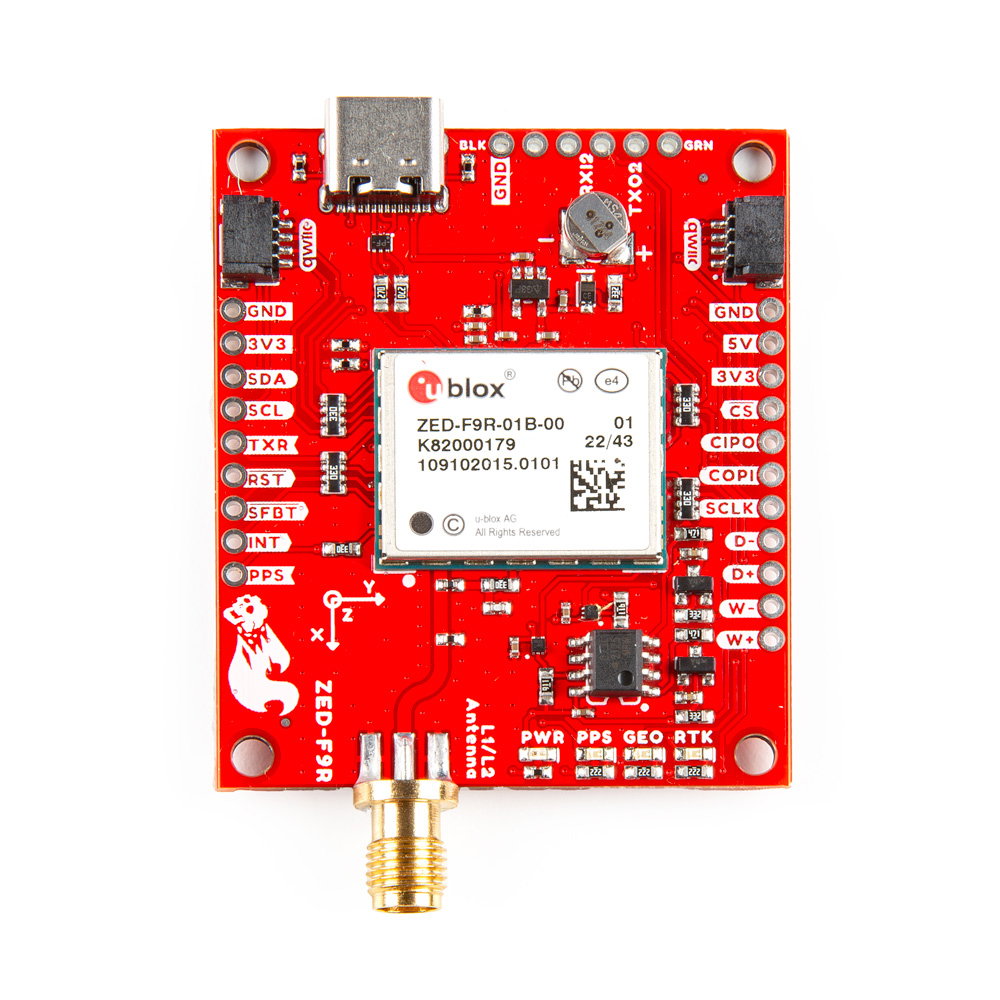

SparkFun GPS-RTK Dead Reckoning Kit - GPS module with ZED-F9R chip and SMA antenna - SparkFun KIT-23452.
The module uses Automotive Dead Reckoning technology.
Special features of the module
- Precise RTK navigation : positioning accuracy up to 0.1 m.
- Dead Reckoning technology : continuous positioning even with GNSS signal loss.
- Support for multiple GNSS constellations : GPS, GLONASS, Galileo, BeiDou.
- Built-in IMU sensor : accelerometer and gyroscope for better precision.
- Easy setup : compatible with UART and I2C interfaces and Qwiic system.
- Fast time to first positioning : from 2 seconds from hot start thanks to the built-in battery.
- Extensive configuration options : variable update rates, geofencing, spoofing detection and more.
Applications of the kit
- Autonomous vehicles and robots requiring precise positioning.
- Drones for site inspection, surveying and mapping.
- Navigation systems in cities and hard-to-reach places (tunnels, parking lots).
- Industrial applications where reliable, real-time navigation is required.
- Research and academic projects related to RTK and Dead Reckoning technology.

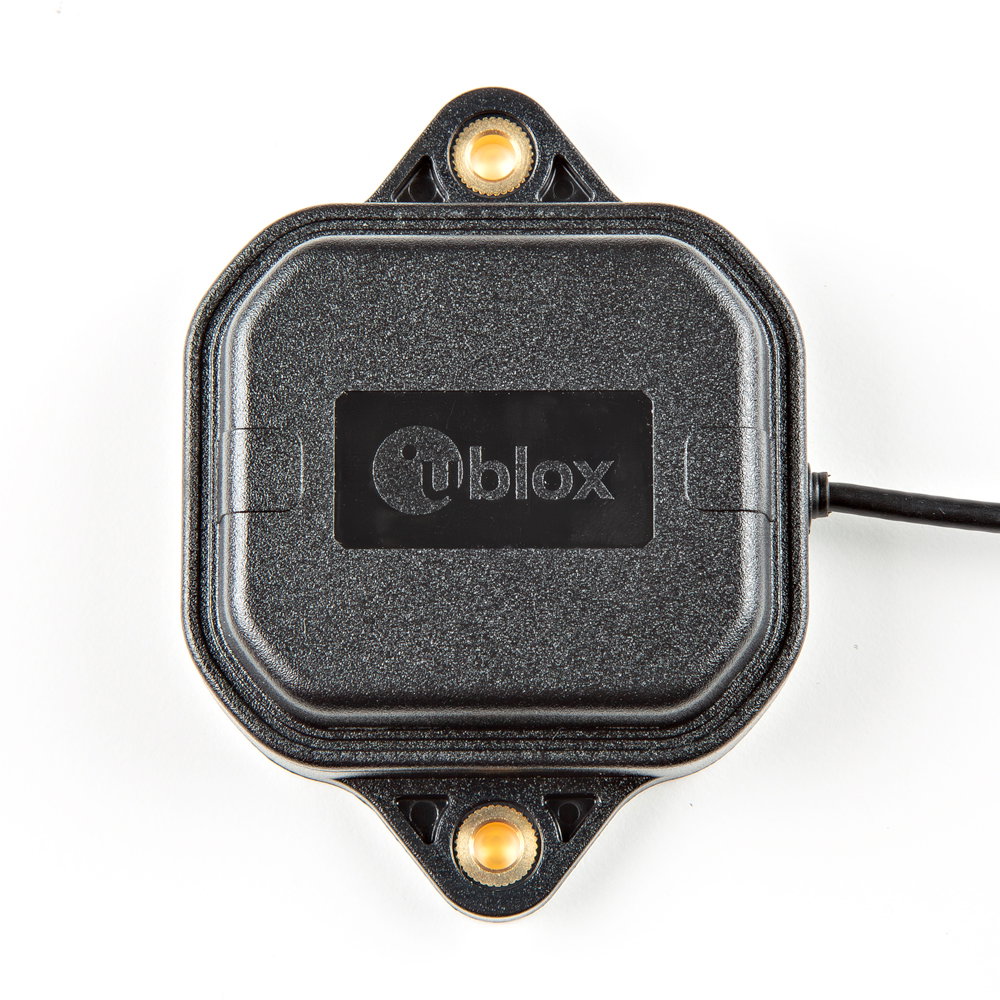

The kit includes a multi-band GNSS antenna.
Items included in the set.

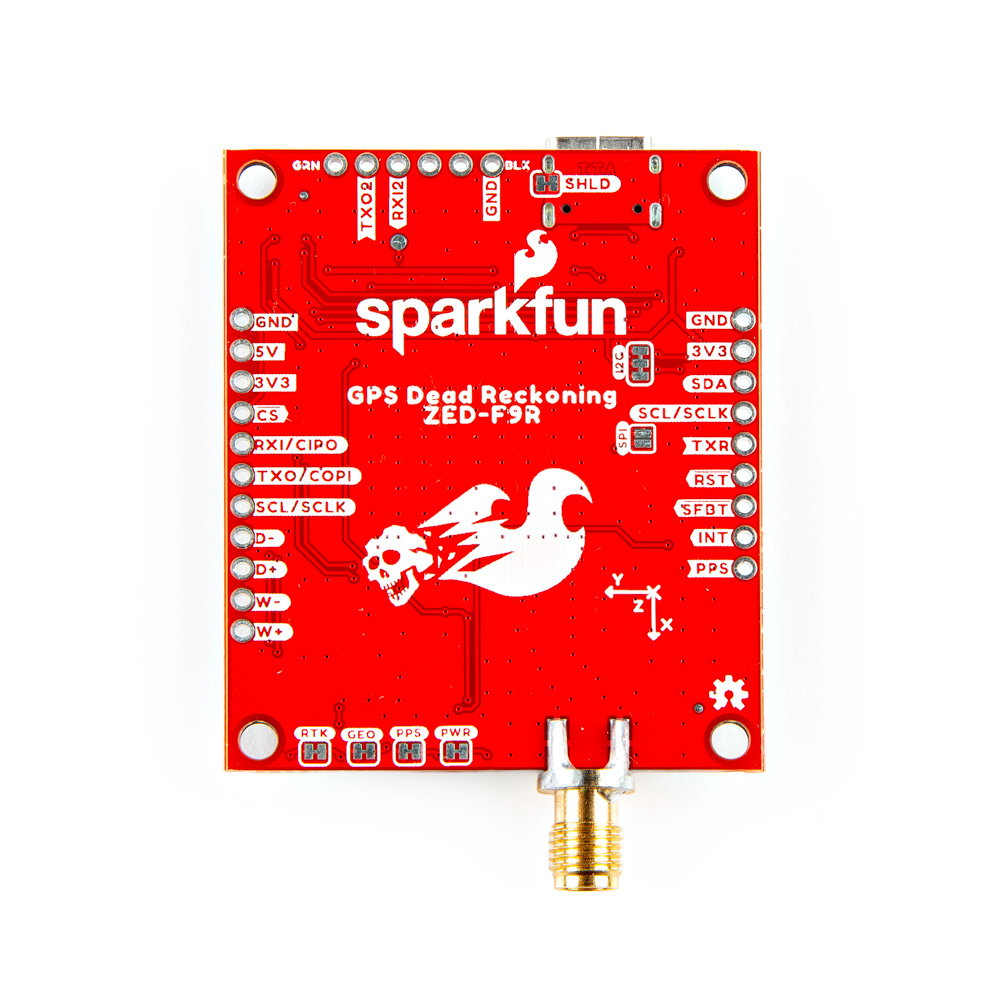

Technical specification of the module
- GNSS module: ZED-F9R (u-blox, 184 channels)
- Received constellations: GPS, GLONASS, Galileo, BeiDou
- Positioning accuracy: 0.01 m (with RTK)
- Maximum update rate: up to 30 Hz
- Time to first fix: cold start: 26 s, hot start: 2 s
- Operational limitations: max. g-force: ≤ 4G, max. altitude: 80 km, max. speed: 500 m/s
- Speed Accuracy: 0.05 m/s
- Direction accuracy: 0.2°
- Power supply: 3.3V / 5V (3.3V logic)
- Interfaces: I2C (Qwiic), UART
- Board dimensions: 43.18 x 50.8 mm
- Weight: 12.1 g

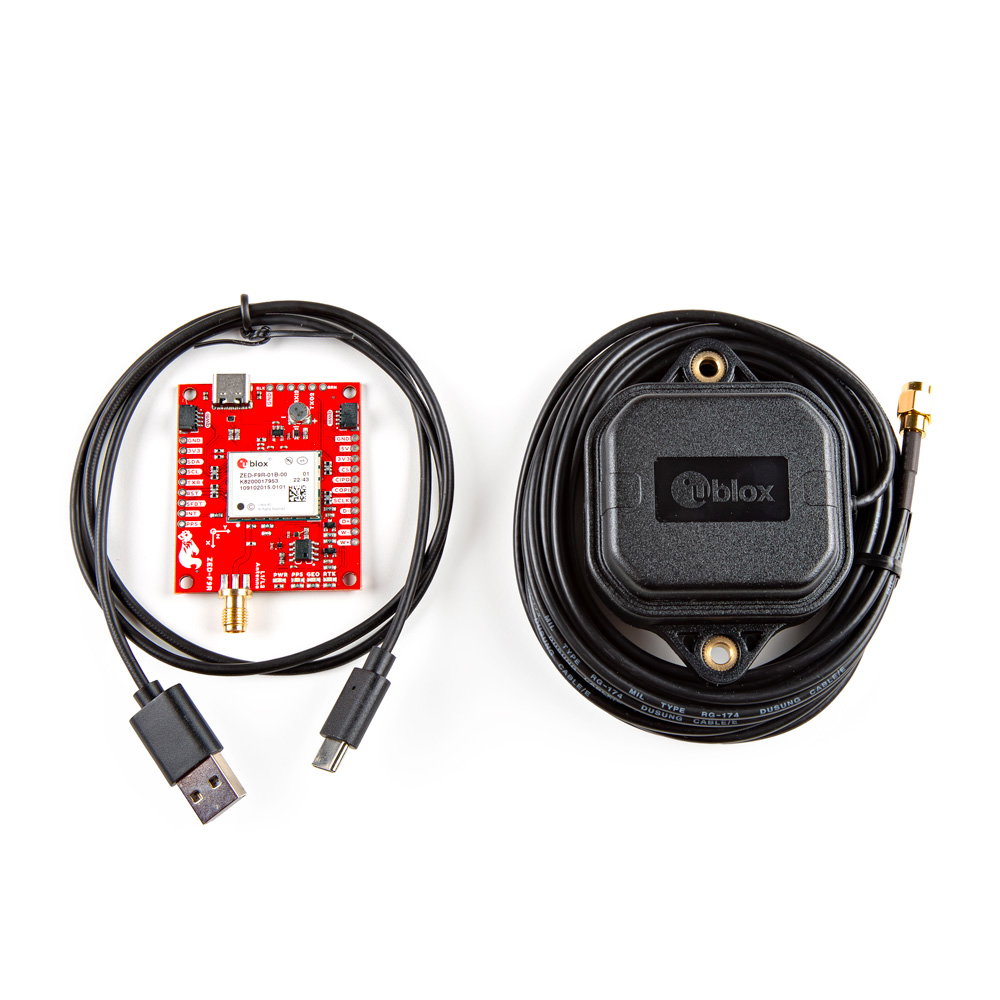

Kit Contents
- 1x SparkFun GPS-RTK Dead Reckoning Breakout - ZED-F9R, SMA (Qwiic)
- 1x Multi-band GNSS antenna for magnetic mount - 5m (SMA)
- 1x USB A to USB C Cable - 0.8m
