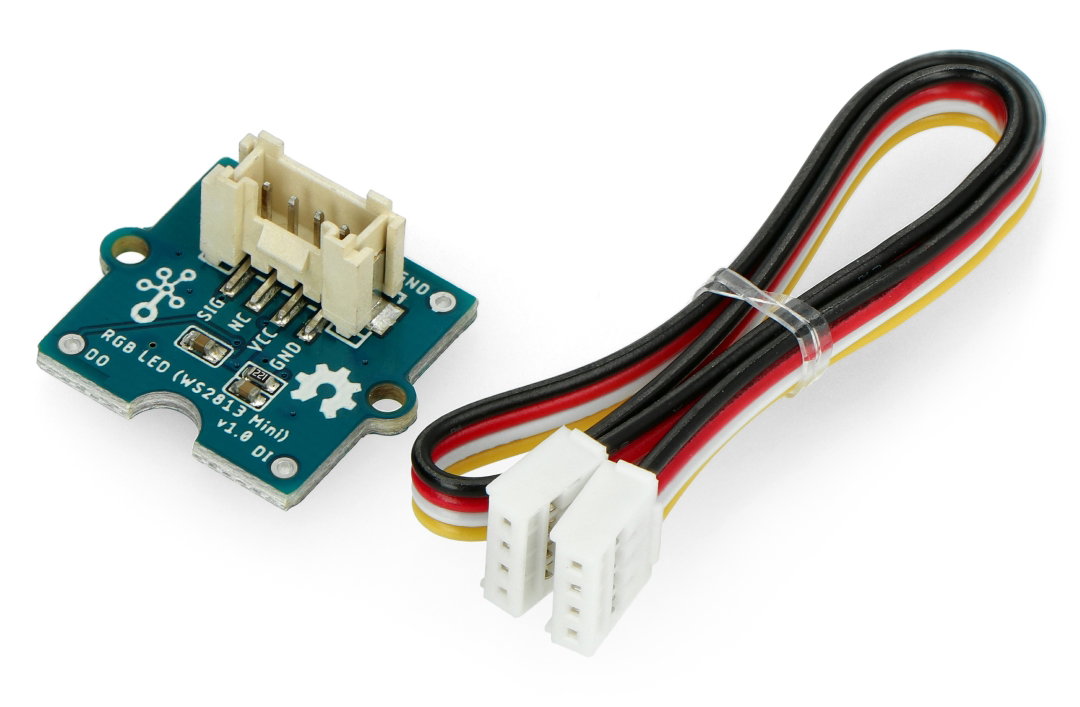

Grove - module with LED RGB WS2813 diode - Seeedstudio 104020169
The module is equipped with RGB LED with WS2813 chip. It works with a voltage of 3.3 V and 5 V. The use of Grove connector makes it much easier to connect the module to the Base Shield cover for Arduino or Raspberry Pi.
We could not load the price.
The promotional price does not combine with quantity discounts.
Botland is an official distributor of electronics and robotics solutions from Seeedstudio. Hundreds of ready to use devices, components and modules are available from stock or to order. Our team guarantees that all Seeedstudio products presented here are original.
Product description: Grove - RGB LED module WS2813 - Seeedstudio 104020169.
The module is equipped with RGB LED with WS2813 chip.Thanks to the built-in controller, the diode can be programmed to display a given colour from the RGB colour palette. It works with a voltage of 3.3 Vand 5 V.Theuse of Grove connector makes it much easier to connect the module with Base Shield overlay forArduinoor RaspberryPi.
The modules can be connected together in a cascade using the holes located on the plates. In case of several boards connected together, the signal can be connected to the DI pin on the board.
Module outputs
Main features of the RGB LED module
- 256 grey levels, 256*256*256=16777216 displayed colors.
- Built-in control system in 3535 components.
- Cascade connection possible.
- Supports 3.3 V and 5 V power supply.
- Cables with two signals, one LED interruption does not interrupt the entire module.
As long as two or more adjacent LEDs are not damaged, the remaining LEDs will operate normally.
RGB LED module specification
- Power supply voltage: 3.3 V or 5 V
- Number of diodes: 1
- Type of diodes: WS2813
- Average power consumption: 16 mA / LED
- Number of colours displayed: 16777216
- Dimensions: 20 x 20 mm
Useful links
| Name | Value |
|---|---|
| LED - color | RGB |
| LED - type | module |
| LED - digital | yes |
| LED - LEDs | 1 |
| LED lens | clear |
| LED wavelength | RGB |
| Sensor - type | LED diode |
| Width | 5.5 cm |
| Height | 1.5 cm |
| Depth | 6.5 cm |
| Weight | 0.008 kg |
