Product description: Joystick adapter - with D-SUB 15 pin connector - I2C - STEMMA QT / Qwiic - Adafruit 5753
A board from Adafruit in the form of an adapter that allows you to quickly introduce a joystick into the project. It has a 15-pin D-SUB connector to which you can connect any classic PC joystick . It is also equipped with the ATtiny816 system with I2C communication. Among the pins on the board there are also two STEMMA QT / Qwiic connectors allowing you to connect the module to any development module. It is used in the modernization of already completed projects, without the need to modify the existing installation. The set also includes goldpin connectors with a pitch of 2.54 mm, requiring independent soldering.
The manufacturer has prepared a detailed user guide that will help you start working with the product. Check!

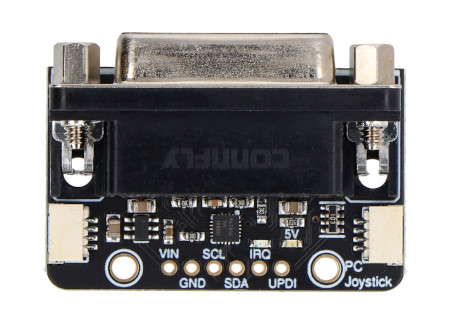

Joystick adapter - with D-SUB 15 pin connector - I2C - STEMMA QT / Qwiic - Adafruit 5753.

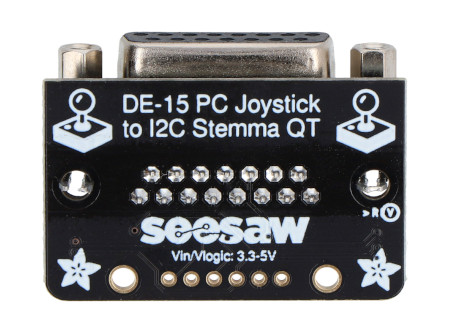

The module also has soldering pads to which the goldpin connectors included in the kit should be soldered.
Pinout description
- VIN - voltage supply pin in the range from 3 V to 5 V,
- GND - system ground,
- SCL - clock line of the I2C bus,
- SDA - I2C bus data line,
- IRQ - interrupt output pin; it can be configured so that the connected diode flashes after detecting the input signal from the connected joystick,
- UPDI - Programming and Debugging Interface.
Are you using the module for an Arduino project? You will need the Adafruit_Seesaw library.
Technical specifications of the board
- Module type: joystick adapter
- Communication interface: I2C bus
- Bus address: 0x49
- Pins: solder pads, 1x D-SUB 15-pin connector, 2x STEMMA QT / Qwiic connectors
- Module dimensions: 40.7 x 29 x 17 mm
- Weight: 14.1 g
Set contents
- Joystick adapter - with D-SUB 15 pin connector - I2C - STEMMA QT / Qwiic - 1 piece
- Goldpin strip 1x6 - raster 2.54 mm - 1 piece

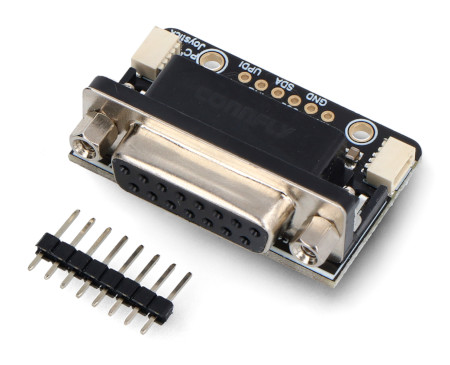

Elements included in the set.
Our offer also includes many joysticks for Arduino . We invite you to familiarize yourself with the available assortment.
