DS2484 - I2C to 1-Wire Bus adapter breakout - STEMMA QT/Qwiic JST SH - Adafruit 5976
The DS2484 I2C to 1-Wire adapter from Adafruit features ESD protection and split-voltage support. It can be easily connected to I2C systems with STEMMA QT . It supports many 1-Wire sensors , such as the popular DS18B20. The compact design with a screw terminal block and adjustable supply voltage makes it a versatile solution for a variety of projects.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: DS2484 - I2C to 1-Wire adapter - STEMMA QT / Qwiic JST SH - Adafruit 5976
The DS2484 adapter from Adafruit is a versatile tool that allows you to easily integrate 1-Wire devices with the I2C bus . The adapter supports a variety of 1-Wire sensors, such as the DS18B20 , while providing protection against electrostatic discharge (ESD). Equipped with STEMMA QT and compatible with SparkFun Qwiic , it allows for quick connection to development boards without the need for soldering. The screw-type connector makes it easy to connect sensors, and the adjustable voltage allows you to adjust the power supply to different components. The compact size and easy programming in Python or CircuitPython make it ideal for professionals and hobbyists.
DS2484 - I2C to 1-Wire adapter - STEMMA QT / Qwiic JST SH - Adafruit 5976.
Botland is an official distributor of Adafruit electronics. These dependable American solutions cover sensors, controllers, Arduino shields, educational systems, smart building and a wide range of accessories. The Botland range holds original Adafruit products only.
STEMMA QT connectors on both sides are compatible with SparkFun Qwiic I2C connectors.
Main features of the adapter
- I2C to 1-Wire conversion: supports many sensors, e.g. DS18B20
- STEMMA QT / Qwiic: I2C bus connection without soldering
- ESD protection: protects devices from electrostatic damage
- Adjustable voltage: adjustable voltage on 1-Wire pin
- Python and CircuitPython Programming: Broad Support for Microprocessors and Computers

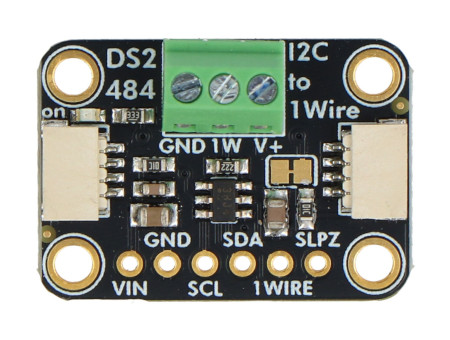

Board pins
- Power supply:
- VIN: 3V or 5V power supply, compatible with microcontroller logic
- GND: common ground for power and logic
- I2C pins:
- SCL: clock line
- SDA: data line
- 1-Wire Line:
- 1WIRE: 1-Wire bus signal
- V+: sensor power supply (shared with VIN)
- GND: ground for the sensor
- SLPZ: Sleep mode input

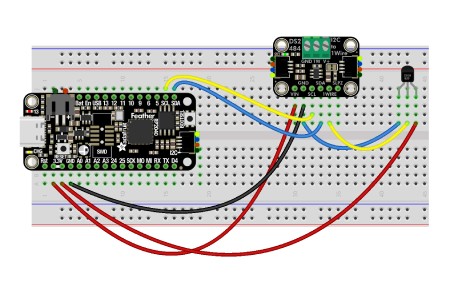

Adapter connection diagram with Feather RP2040 and DS18B20.
Programming the board using CircuitPython and Python
The Adafruit DS2484 adapter lets you easily program and control 1-Wire devices over I2C in Python and CircuitPython. The key component is the Adafruit_CircuitPython_DS248x library, which lets you read data from sensors like the DS18B20. To get started, install the library with the command:
pip3 install adafruit-circuitpython-ds248x .
For CircuitPython users, simply copy the necessary files to the lib folder on the CIRCUITPY drive. There are also ready-made projects available in the form of a "Project Bundle", containing sample code and all required libraries.
Technical specification of the board
- I2C address: 0x18
- Voltage support: 3V or 5V on VIN
- Protection: ESD on 1-Wire lines
- Connectors: STEMMA QT / Qwiic, 1x3 screw terminal
- Programming: Python and CircuitPython support
- Dimensions: 25.3 x 17.7 x 10 mm
- Weight: 2.5 g
Kit Contents
- 1x DS2484 - I2C to 1-Wire adapter - STEMMA QT/Qwiic JST SH - Adafruit 5976
- 1x 8-pin goldpin connector

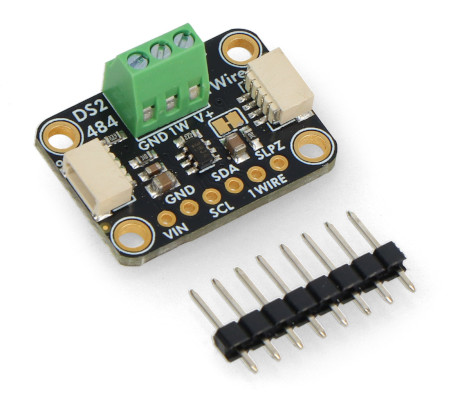

Items included in the set.
Useful links
- Manufacturer website: Adafruit 5976
- User Guide
- Board pins
- CircuitPython and Python Programming Guide
- Technical Documentation DS2484
- GitHub Repository
- I2C bus - what is it and what is it used for?
- Temperature Sensor DS18B20 – Digital 1-Wire THT – Product Details and Application Examples
| Name | Value |
|---|---|
| Width | 7.5 cm |
| Height | 13.5 cm |
| Depth | 1 cm |
| Weight | 0.005 kg |
