Pine64 Quartz64 Model-A - Rockchip RK3566 ARM Cortex A55 Quad-Core - 8GB RAM

Index: PIN-20189 EAN: 5904422303211
Quartz64 is a minicomputer designed by Pine64. The minicomputer is based on Rockchip RK3566 chip along with quad-core ARM Cortex A55 and Mali-G52-2EE graphics chip. It has 8 GB of RAM, but no built-in storage, you can install it in the form of eMMC modules or microSD card. The Quartz64 also features a 0.8 TOPS neural network acceleration engine and RISC-V 32-bit CPU. It also has standard communication and GPIO interfaces.
Pine64 Quartz64 Model-A - Rockchip RK3566 ARM Cortex A55 Quad-Core - 8GB RAM
€136.90
€111.30 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: Pine64

Product Description: Pine64 Quartz64 Model-A - Rockchip RK3566 ARM Cortex A55 Quad-Core - 4GB RAM

Quartz64 is a minicomputer designed by Pine64. The minicomputer is based on Rockchip RK3566 chip along with ARM Cortex A55 quad-core and Mali-G52-2EE graphics chip. It has 8 GB of RAM, but no built-in storage, you can install it in the form of eMMC modules or microSD card. The Quartz64 also features a 0.8 TOPS neural network acceleration engine and RISC-V 32-bit CPU. It also has standard communication and GPIO interfaces, these are: PCIe x1, USB C 3.0 port, SATA 3.0, three USB 2.0 ports, Gigabit Ethernet, MIPI DSI, e-ink interface, eDP, touch panel interface, MIPI CSI and UART, SPI, I2C.

Pine64 Quart64 z silnikiem akceleracji sieci neuronowych

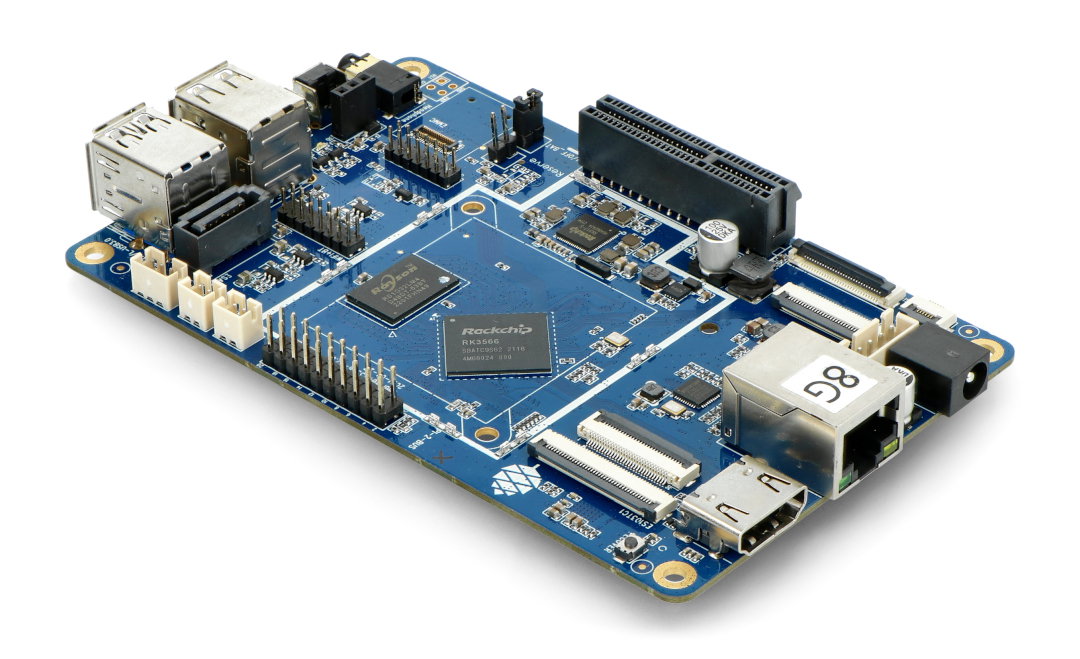

Pine64 Quart64 with neural network acceleration engine.

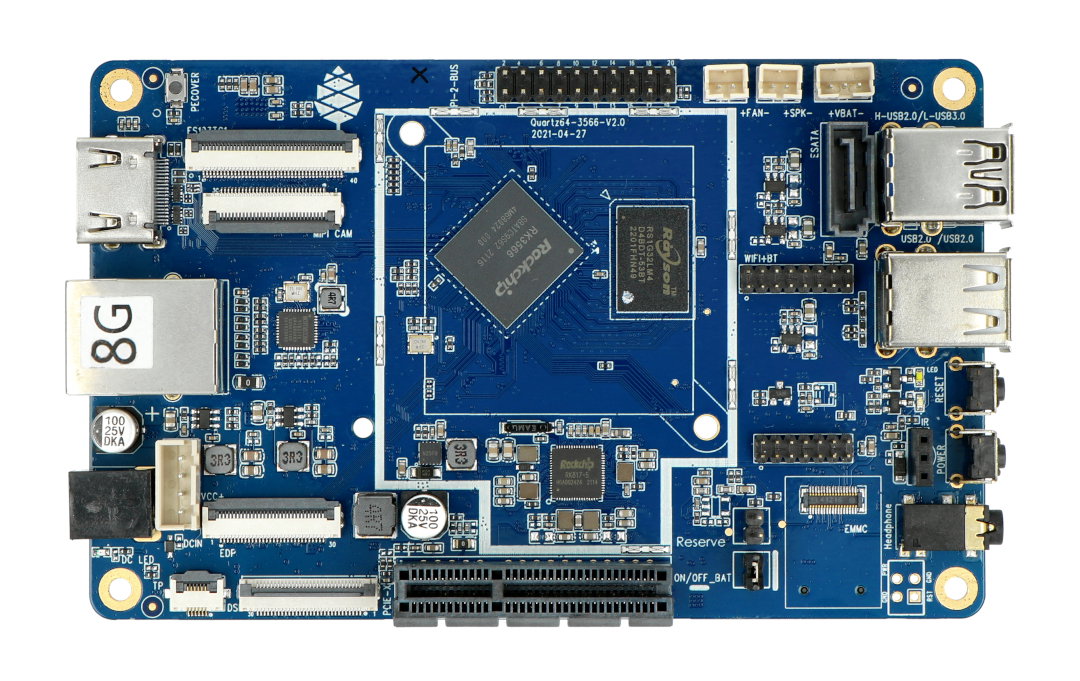

Minikomputer Pine64 Quart64Pine64 Quartz64 minicomputer.

What is needed to run the Quartz64 minicomputer?

Power supply Quartz64

Quartz64 from Pine54 is powered by 12 V and requires a minimum 3 A power supply. It is powered via a DC 5.5 / 2.1 mm connector. Module is also equipped with charging circuit for 3-pin Li-Pol 3.7 V packs with protection against too high temperature.

In our shop offer are also available 12 V / 3 A power supplies with DC 5.5 / 2.1 mm connector and Li-Pol 3.7 V batteries.

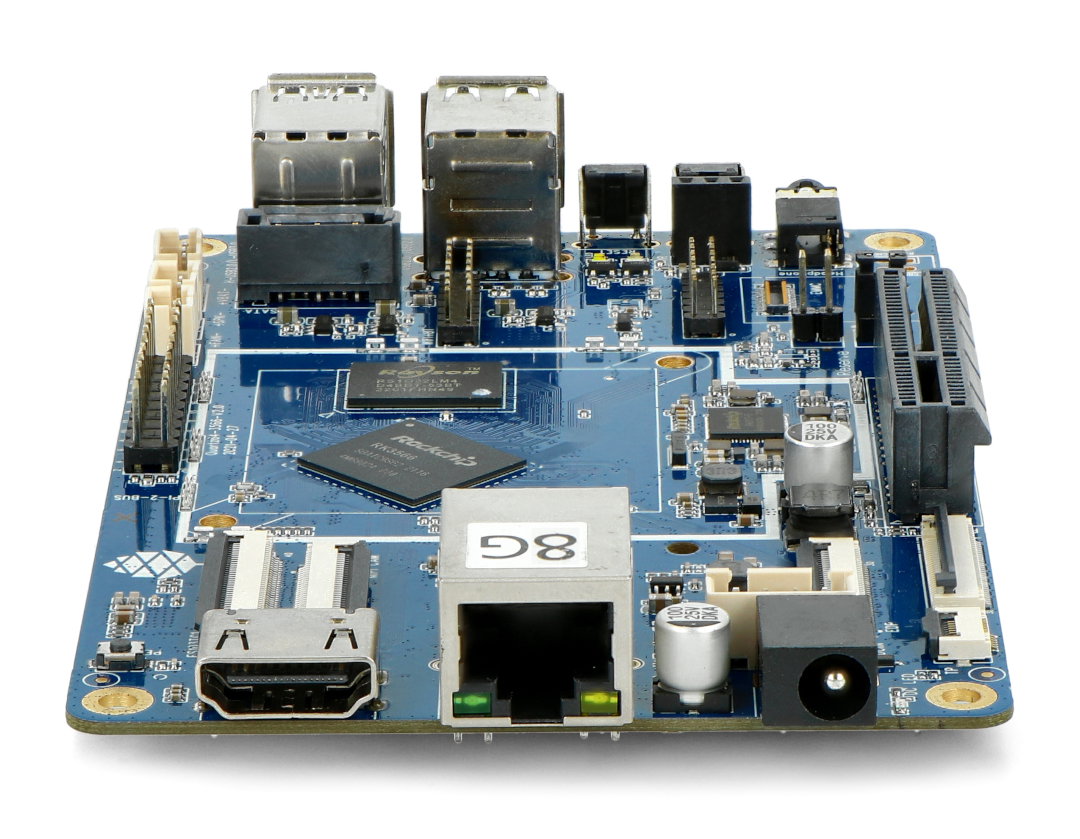

Złącze zasilające Quart64Quartz64 minicomputer equipped with DC 5.5 / 2.1 mm power connector.
Pine64 Quartz64 Minicomputer Specifications
Chip Rockchip RK3566 ARM Cortex A55 Quad-Core 64-bit
RISC-V 32-bit CPU
Neural Network Acceleration Engine 0.8 TOPS
Graphics chip Mali-G52-2EE
Memory

8 GB RAM
optional eMMC module (up to 128 GB)

microSD card slot

Display Interface

eDP

e-ink

MIPI DSI - 4-line

HDMI 4K@60fos 10-bit

Camera interface MIPI-CSI - 4-lines
Human machine interfaces

I2C touch panel port

Optional IR port

Audio

3.5 mm audio jack with microphone input

2-pin speaker port

Communications

Gigabit Ethernet

Optional SDIO WiFi / BT interface

Interfaces

1x native USB 3.0 host port or 1x SATA 3.0

3x native USB 2.0 host ports

PCIe x1 slot

GPIO: I2C, SPI, UART

Battery

Li-Pol charging system

3-pin 3.7V Li-Pol battery connector with overheat protection

Dimensions 133 x 80 x 19 mm
UC - Microcontroller RK3566
UC - Core Cortex A55
UC - RAM 8 GB
UC - core 4. Quad Core
UC - External memory microSD card
UC - Ethernet yes
UC - USB 3x USB
UC - microSD yes
UC - HDMI yes
UC - I2C yes
UC - UART yes
UC - Connector 5V - DC 5.5/2.1mm
UC - SPI interface yes
UC - LCD interface yes
UC - Camera interface yes
UC - Linux yes
UC - Android yes
Package width 15.5 cm
Package height 9 cm
Package depth 3 cm
Package weight 0.107 kg
