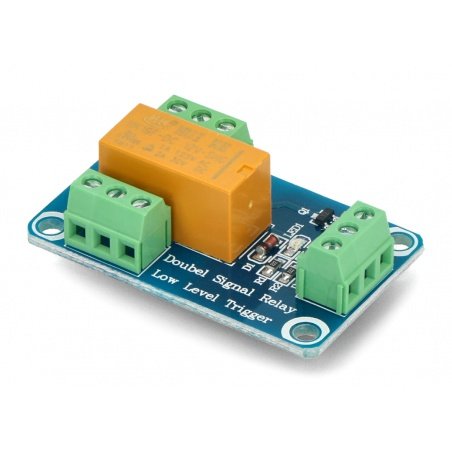

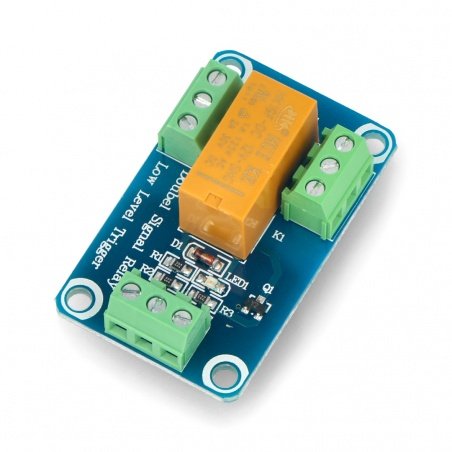

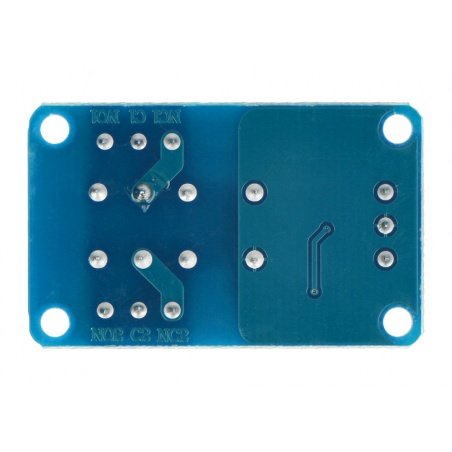

Relay module DPDT 1 channel - 1A / 125VAC contacts - 12V coil

Index: AKS-19501 EAN: 5904422358006
Single channel 12 V DPDT relay module equipped with two pairs of changeover contacts. For proper operation it is sufficient to connect the relay power supply and a 12 V digital control signal. The module allows the control of actuators drawing current up to 2 A.
€4.99
€4.06 tax excl.

Available
(Check quantity)
Shipping in 24 hours
30-day returns
PayPal payment

Product description: DPDT relay module 1 channel - contacts 1A/125VAC - coil 12V

Single channel12 V DPDTrelay module equipped with two pairs of changeover contacts. For proper operation it is enough to connect the power supply of the relay and the 12 V digital control signal. The module allows the control of actuators drawing current up to 2 A. On the module there is LED diode which indicates operation of the relay.

Moduł przekaźnika DPDT 1 kanał - styki 1A/125VAC - cewka 12V.

DPDT relay module 1 channel - contacts 1A/125VAC - coil 12V.

Przekaźnik HK19F-DC 12V-SHG.

HK19F-DC 12V-SHG relay.

DPDT relay module specification

  • VCC supply voltage: 12 V
  • Relay state switching by high state
  • HK19F-DC 12V-SHG Relay(documentation)
    • Coil voltage: 12 V
    • Maximum contact voltage: 125 VAC, 30 VDC*
    • Maximum current:
      • 1 A for 125 VAC
      • 2 A for 30 VDC
  • Board dimensions 45 x 28 mm

Maximum contact voltage depends on load

DPDT relay module 1 channel - contacts 1A/125VAC - coil 12V

This relay is distinguished by a very short release time of only 4 ms when the rated voltage is unexpectedly disconnected. The time of energizing is 6 ms. The maximum coil temperature must not exceed 40°C. Temperature measurement of this electronic component should not take into account the ambient temperature. It should be carried out after the voltage has stabilized.

DPDT 1 relay module - usage

The 12 V relay can safely operate within a wide operating temperature range of -25 °C to +70 °C. It can be successfully used as a component of a smart home system. The DPDT relay works with popular minicomputers and microcontrollers. The 1-channel controller is equipped with a LED which indicates its status. The safe humidity range is from 40 % to 85 %.

Na module zamontowana jest dioda LED sygnalizująca pracę przekaźnika.

There is a LED mounted on the module to indicate the operation of the relay.


Channels 1
Interface Digital I / O
