Description

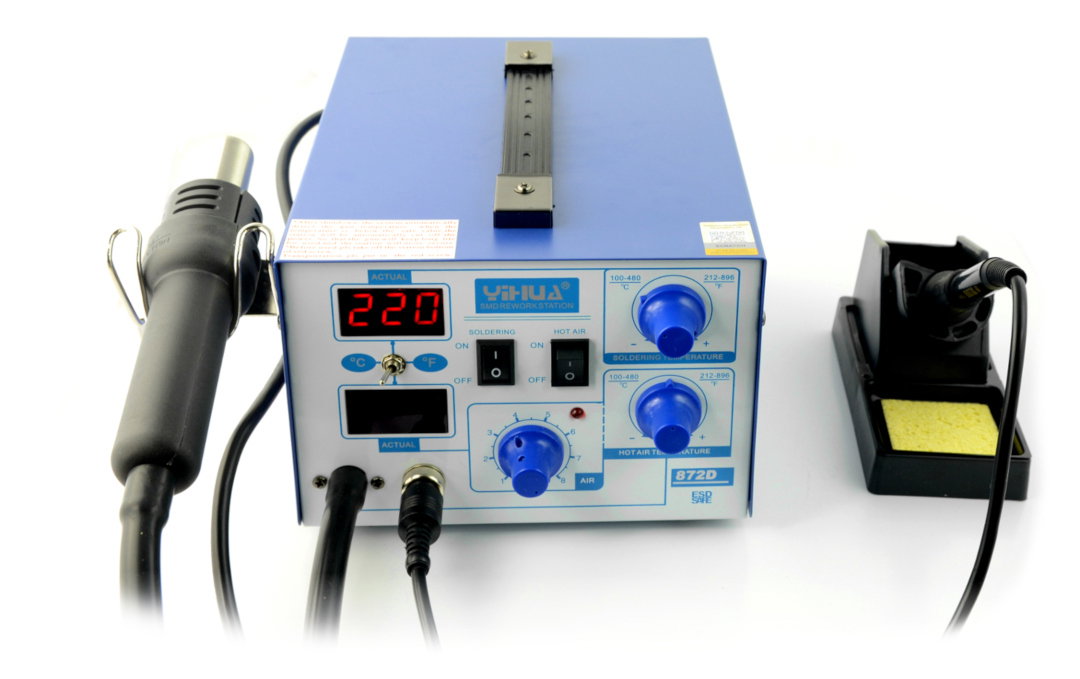

Soldering iron Yihua 872D total capacity of 700 wattswith adjustable temperature controller,PID.The device has a soldering iron with heating power 50W. Temperature of soldering iron and hotair iron is set by using the knobs.
The station is used in the electronic repair services for safe soldering of QFP, BGA, SMD,PLCC, and other sensitive elements on temperature.
Specification
- Supply voltage: 230 V / 50 Hz (network)
- Power: 700 W
- Station is controlled through the microcontroller for PID control, which ensures high stability
- Two LED displays show the value on the tip and Hotair and also display the current temperature
Hotair Soldering Iron
- Adjustable temperature hot air from 100°Cto 480 °C
- Temperature stability: +/- 1 °C
- Temperature setting with knob
- Air consumption: max. up to 24 l/min
- Display: LCD
Tip-based Soldering Iron
- Adjustment of the soldering tip temperature from 100°Cto 480 °C
- Temperature stability: +/- 2 °C
- Potential between tip and ground: < 2mV
- The resistance between tip and ground: < 2 Ohm
- Iron: 907 I
- Soldering iron power: 50
- Display: LCD
Includes:
- Soldering station Yihua 872D
- Set of nozzles:
- round nozzle with a diameter of 2 mm
- round nozzle with a diameter of 4.4 mm
- round nozzle with a diameter of 6 mm
- round nozzle with a diameter of 9 mm
- Soldering iron stand with a cleaning sponge
- A gripper for lifting circuits
- Soldering iron 907A with tip I
|
First run
Note Heating elements (heaters) and tips are not subject to warranty, you should purchase new ones. |
