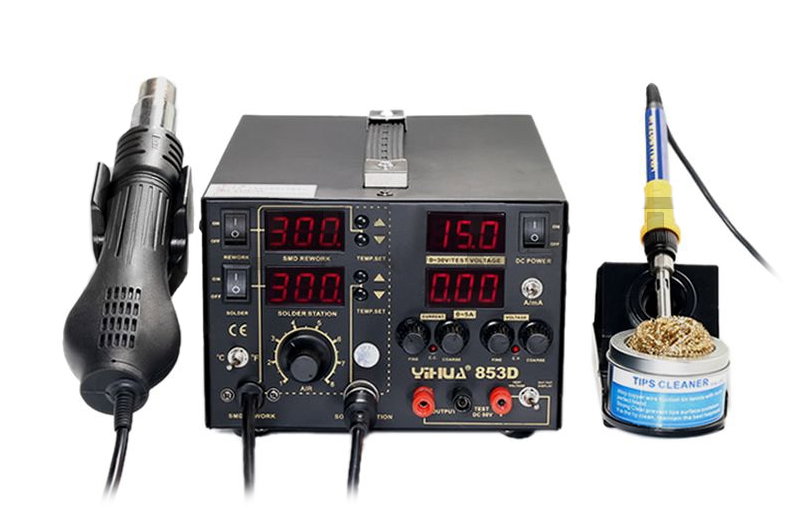

Soldering station hotair and tip-based + power supply 30V/5A Yihua 853D with fan in iron - 800W
Yihua 853D soldering station, in addition to soldering function, also allows you to power devices through a built-in power supply with adjustable voltage and current of 30 V / 5 A. It has been designed for soldering work with components such as SPOC, QFP, PLCC, BGA, SMD, etc. The station works with a series of 900M Tx tips. Temperature control is available in the hotair ranges: from 100 ° C to 480 ° C , tip: from 200 ° C to 480 ° C. The air is blown out by a fan located in the flask.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: Yihua 853D hotair soldering station with a fan in a stock - 800W + 30V / 5A power supply
Yihua 853D soldering station , in addition to soldering function, also allows you to power devices through a built-in power supply with adjustable voltage and current of 30 V / 5 A. It has been designed for soldering work with components such as SPOC, QFP, PLCC, BGA, SMD, etc. By blowing hot air, it is also possible to heat, heat -shrink sleeves , dissolve adhesives, burn paints, heat up. The Yihua is also equipped with a flask with a high heating power. It has an ESD Safe protection that protects electronic components against damage. The station works with the 900M Tx series of tips. Temperature control is available in the hotair ranges: from 100 ° C to 480 ° C , tip: from 200 ° C to 480 ° C. The air is blown out by a fan located in the flask.
The station is compatible with the 900M Tx series tips .
Yhua 853D kit contents
- Hotair soldering station, tip Yihua 853D with fan in stock - 800W + power supply 30V / 5A
- Stand for a soldering iron with a chip cleaner for cleaning the tip
- Tip cleaning sponge (must be moistened before use)
- A tipped stock with a type I or B tip
- Gripper for lifting systems
- Nozzles:
- round with a diameter of 4.4 mm
- round with a diameter of 7 mm
- round with a diameter of 9 mm
- round for BGA 12 x 12 mm
- Two sets of cables for the power supply
- Power cord
- Manual in Polish
3 in 1 soldering station - Yihua 853D
A soldering station with hot air blowing and a laboratory power supply.
Yihua 853D soldering station specification
- Supply voltage: 220 V to 240 V AC
- Power consumption: 800 W
- Working temperature: 0 ° C to 40 ° C
- Storage temperature: -20 ° C to 80 ° C
- HotAir
- Hot air temperature control: from 100 ° C to 480 ° C
- Temperature stability: +/- 2 ° C
- LED display
- Temperature setting with buttons
- Air flow: up to 120 liters / minute
- Smooth regulation of airflow by means of a knob
- Air exhaust is provided by a fan located in the flask
- Cable length: 100 cm
- Grotowa soldering iron
- Tip temperature control: from 200 ° C to 480 ° C
- Temperature stability: +/- 2 ° C
- Earth voltage: <2 mv="" li="">
- Earth resistance: <2 ohm="" li="">
- Security: ESD Safe
- Cable length: 100 cm
- Charger
- DC output voltage: 0V to 30V
- Intensity: up to 5 A.
- LED digital display
- Stability: from 0.01 mV to 2 mV
- Ripple DB: up to 1 mvrms
- Temperature coefficient: <300 ppm="" c="" li="">
The offer also includes the Yihua 853D station with a 15 V / 1 A power supply
| Name | Value |
|---|---|
| Voltage to | 220 V AC |
| Voltage from | 240 V AC |
| Voltage nominal | 230 V AC |
| Nominal power | 800 W |
| Temperature | 200 - 480 °C |
| Solder - Fan | yes |
| Solder - real temperature reading | yes |
| Solder - Hotair | yes |
| Solder - Type A/C | digital |
| Width | 34 cm |
| Height | 18 cm |
| Depth | 27 cm |
| Weight | 7 kg |
