Description

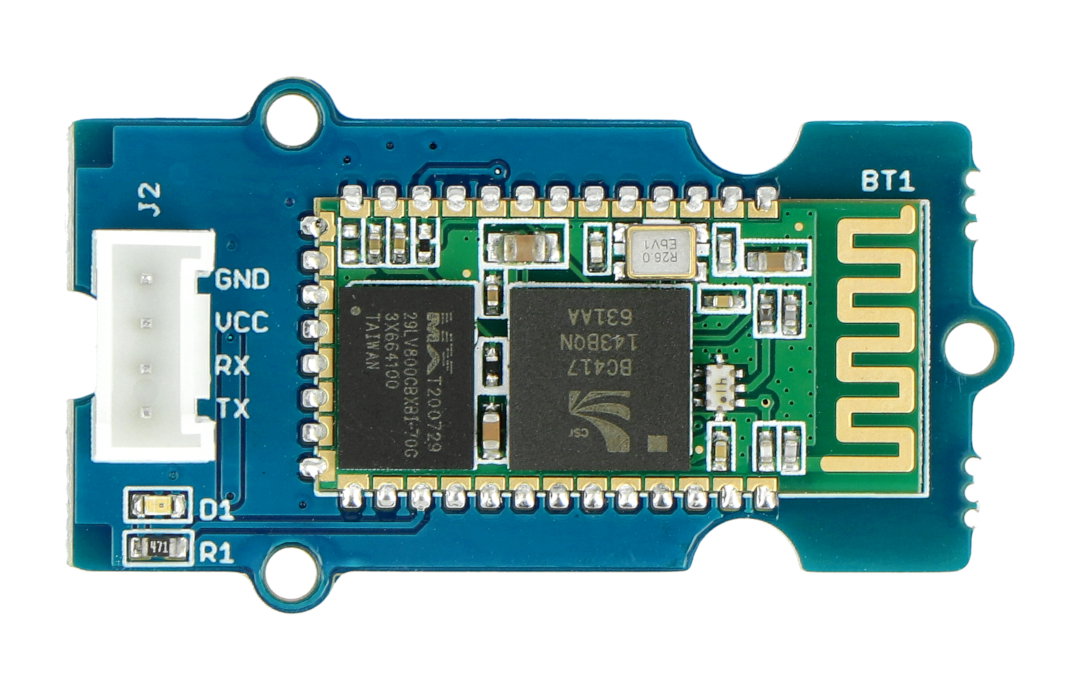

Module from the Grove series, allowing to connect via Blootooth v3.0 + EDR(Enhanced Data Rate), class 2. It works with a voltage of5 V, it communicates through a standardGrove slot (serial interface, pins RX, TX), it supports the AT command. Maximum transmitter power:+ 4 dBm, receiver sensitivity is- 80 dBm. The module is based on aCSR Bluecore 04with the technology ofCMOSandAFH(Adaptive Frequency Hopping Feature). The product is fully compatible withArduino, the manufacturer provides a detailed manual, along with samplesource codes on its website.The kit includes a cable adapted to Seeedstudio Base Shield v2.0.

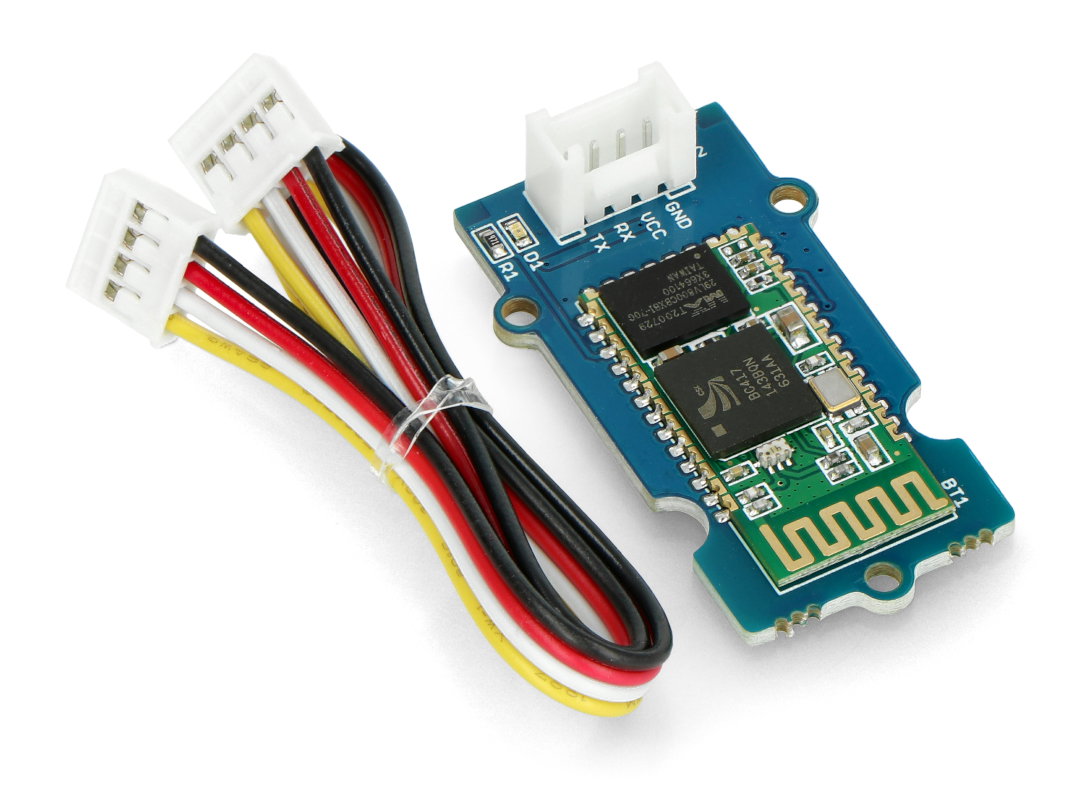

Module has a 4-pin cable forBase Shield v2.
Pins
The module is equipped with Grove interface that facilitates its connection tothe Arduinoalong withBase Shield v2.0.
| Pin | Description |
|---|---|
| VCC | Power Supply 5 V. |
| GND | The ground of the system. |
| TX | Transmitting data line of UART interface. |
| RX | Receving data line of UART interface. |
|
Grove is a series of modules and sensors that are compatible with Base Shields working withArduinoandSTM32 Nucleo. |
Specification
- Supply voltage: 5 V
- Transfer: 2 Mbps
- The RF transmit power (Max)：+4dBm
- Sensitivity：-80 dBm
- Standard: Bluetooth V3.0+EDR
- The choice of capacity
- Auto re-connect within 30 minutes after leaving the range
- Dimensions: 140 x 85 x 11.6 mm
- Weight: 10 g
