Description
GroveWi-Fimodule based on aESP8285 system with built-inTCP/IPand supportAT commands. It supports the most popular protection, such asWEP, WPA/WPA2, TKIP, AES and WAPI. It can also work as anAccess Point with DHCPor serve as aconnection for two other Wi-Fi networks.It also has the possibility ofconfiguring the MAC address and IP.It is supplied with the voltage from3.3 V to 5.5 V. It communicates with the microcontroller throughUART interface. The kit includes a cable adapted to SeeedstudioBase Shield v2.0.The manufacturer provides on its website detailed instructions, along with sample source codes forArduino.

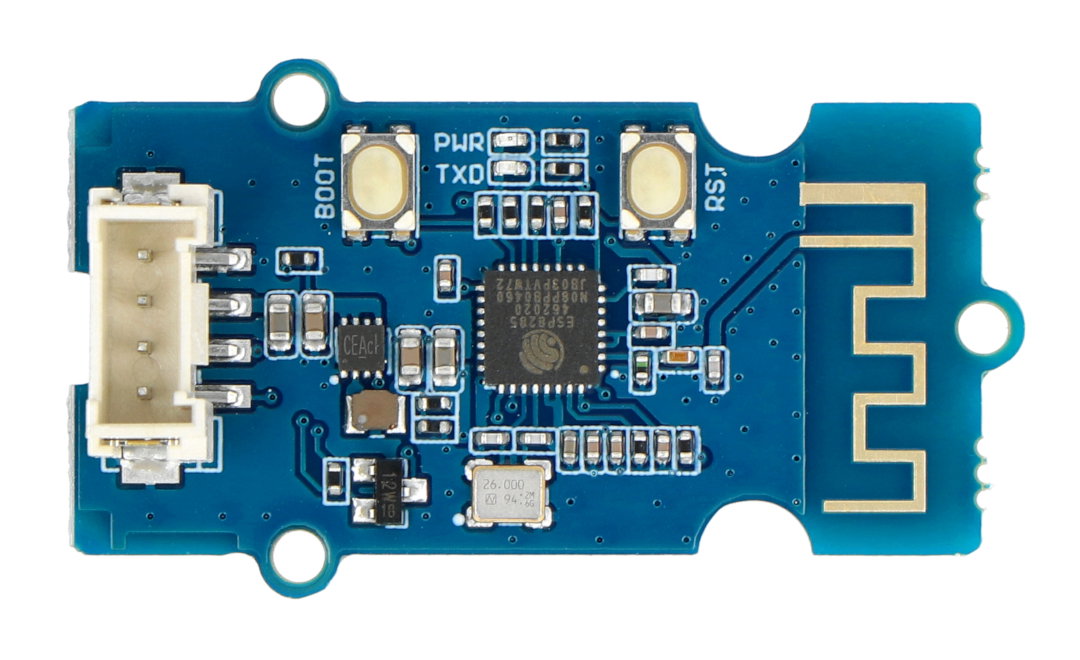

Grove ESP8285 V2 - WiFi UART module.
|
The product is compatible with Arduino The manufacturer provides auser manualfor Arduinolibrarieson GitHub |
Outputs

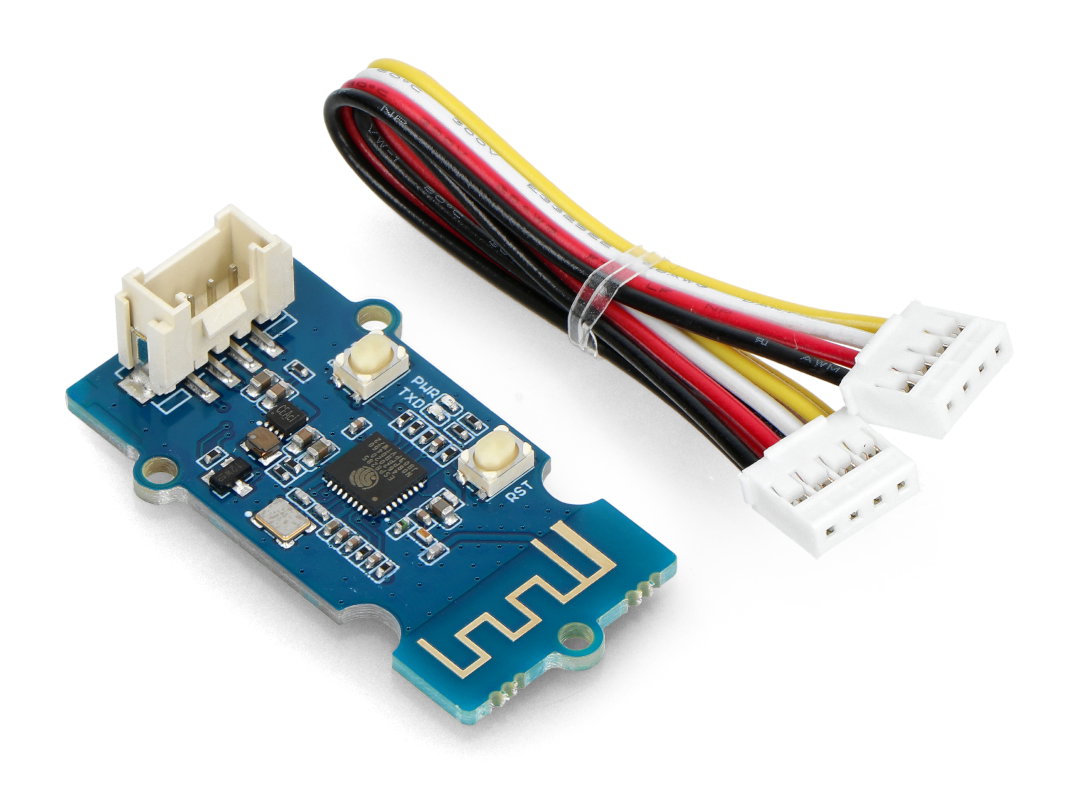

The system has four outputs on a special connector from the Grove series, cable to which is included in the kit.
| Pin | Description |
|---|---|
| VCC | Supply voltage: from 3.3 V to 5.5 V. |
| GND | The ground of the system. |
| TX | Transmitter UART interface. |
| RX | Receiver UART interface. |
|
Grove is a series of modules and sensors that are compatible with Base Shield boards working withArduinoandSTM32 Nucleo. |
Specification
- System Wi-Fi: ESP8285 ESP-07
- Support AT command
- Built-in antenna
- Protocol:802.11 b/g/n (2.4 GHz)
- QoS
- Interface: UART
- Capacity: 11520 bit / s
- Memory: 1MB
- Supply voltage: from 3.3 V to 5.5 V
- Dimensions: 40 x 20 x 7 mm
- Weight: 3.4 g
