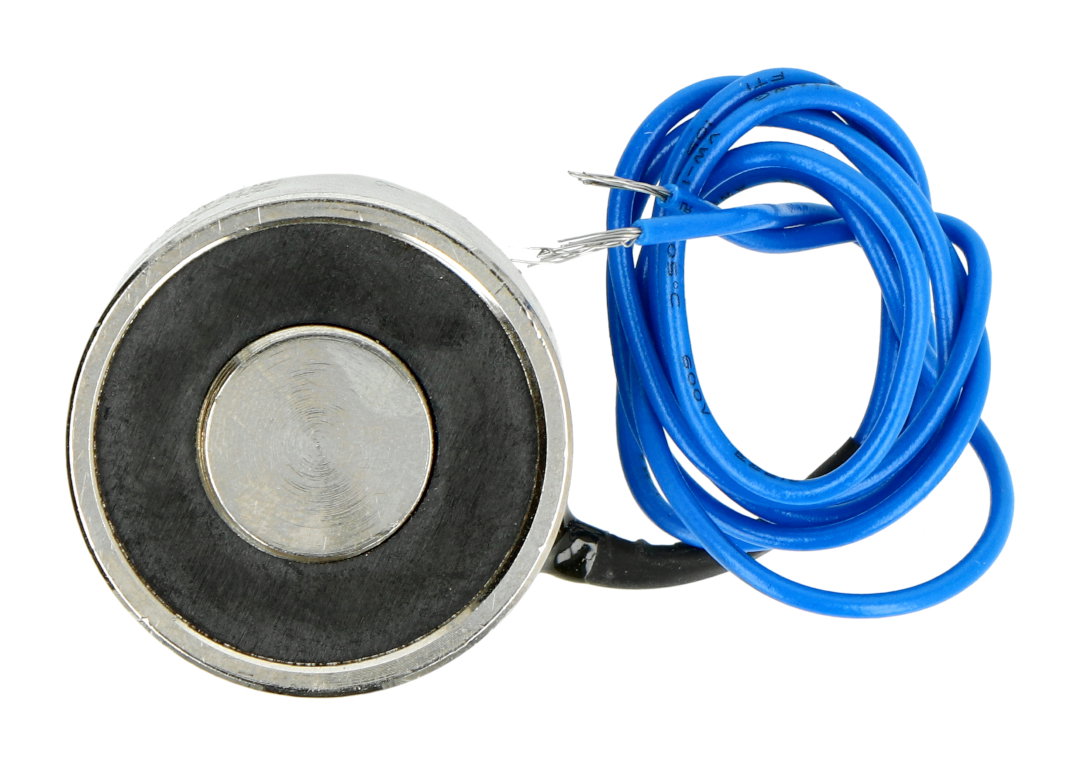

Electromagnet holding 6V 3W 0,48A 15kgf
Holding electromagnet powered by 6 V , with a maximum load capacity of 15 kg at a standard gravitational acceleration of 9.8 m/s 2 . Current consumption is approx. 0.48 A, nominal power is 3 W. The magnet has a mounting hole with an M4 thread (the set also includes an appropriate screw). The product has dimensions: 30 x 25 mm. The cables that come out are approximately 30 cm long.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product Description: Holding electromagnet 6V 3W 0.48A 15 kgf
Holding electromagnet powered by 6 V , with a maximum load capacity of 15 kg at a standard gravitational acceleration of 9.8 m/s 2 . Current consumption is approx. 0.48 A, nominal power is 3 W. The magnet has a mounting hole with an M4 thread (the set also includes an appropriate screw). The product has dimensions: 30 x 25 mm. The cables that come out are approximately 30 cm long. When using a magnet as an actuator controlled by Arduino , do not connect it directly to the microcontroller pins. Due to the high power consumed by the magnet, an additional relay , opto-isolator or transistor amplifier should be used in the system.
Holding electromagnet 6V 3W 15 kgf.
Electromagnet holding a load .
6V Holding Electromagnet Specification
- Supply voltage: 6V
- Power: 3W
- Current consumption: approx. 0.48 A
- Load capacity: 15 kgf (holds a mass of 15 kg for a gravitational acceleration of 9.8 m/s 2 )
- Cables with stripped insulation at the ends, approx. 30 cm long
- Mounting hole with M4 thread (screw included)
- Dimensions: 30 x 25 mm
- Weight: 98 g
Attention ! The manufacturer recommends maintaining good heat dissipation from the housing, because as the coil temperature increases, the holding force decreases. |
Useful links
| Name | Value |
|---|---|
| Width | 7 cm |
| Height | 10 cm |
| Depth | 3 cm |
| Weight | 0.104 kg |
