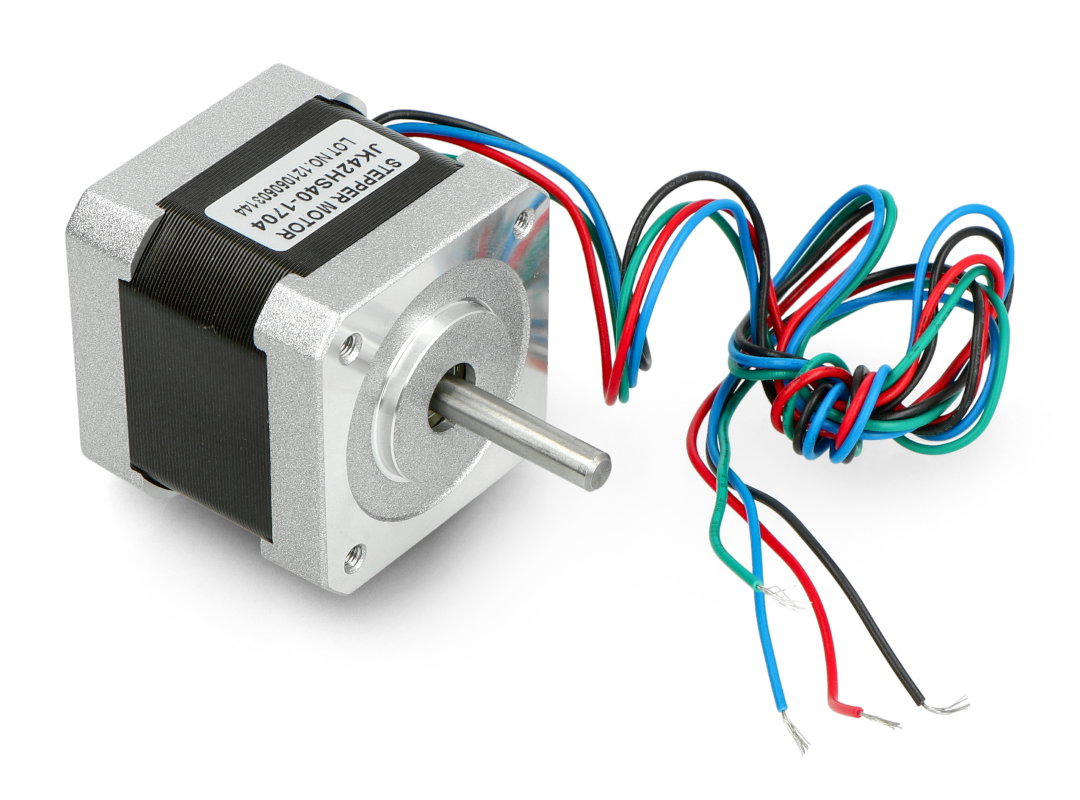

Stepper motor JK42HS40-1704 200 steps 2.8V/1.7A/0.4Nm

Index: MOT-06429 EAN: 5904422334635

Bipolar stepper motor, four wire. It has a resolution of 200 steps per revolution (1.8 degrees). It is powered by 2.8 V and draws 1700 mA per coil. The torque is 4.0 kg*cm (0.4 Nm). Dimensions are 42 x 42 x 40 mm (NEMA 17).

€13.00
€10.57 tax excl.
Delivery scheduled for 2022-06-30
Waiting for delivery
30-day returns
PayPal payment
Manufacturer: OEM

Product description: JK42HS40-1704 stepper motor 200 steps/rev 2,8 V / 1,7 A / 0,4 Nm

Bipolar stepper motor, four wire. It has a resolution of 200 steps per revolution (1.8 degrees). It is powered by 2.8 V and draws 1700 mA per coil. The torque is 4.0 kg*cm (0.4 Nm). Dimensions are 42 x 42 x 40 mm (NEMA 17).

Sterowniki silników krokowych

Accessories for the motor

There are also accessories available in our shop to make stepper motors easier to use:

  • 5 mm mounting hub - allows to mount mechanical elements on the motor shaft
  • Stepper motor driver - simple to use, small modules allowing to control direction, speed and resolution. We have also prepared instructions for connecting different types of stepper motors.

Applications of stepper motors:

  • printers
  • CNC devices
  • 3D printers
  • laser devices
  • manipulators

Specification of the JK42HS40-1704 stepper motor

  • Resolution: 200 steps/rev (1.8 °)
  • Rated voltage: 2,8 V
  • Current consumption per coil: 1,7 A
  • Coil resistance 1.65 Ω
  • Winding inductance: 3.2 mH
  • Holding torque 4.0 kg*cm (0.4 Nm)
  • Leads: bipolar (four wires)
  • Shaft diameter: 5 mm
  • Weight: 280 g
  • Standard: NEMA 17
  • Dimensions: 42 x 42 x 40 mm (without shaft)

Details in the technical documentation.

Silnik krokowy JK42HS40-1704 200 kroków/obr 2,8V/1,7A/0,4NmStepper motor JK42HS40-1704 200 steps/rev 2.8 V / 1.7 A / 0.4 Nm.



Length 42 mm
Width 42 mm
Height 40 mm
Voltage to 2.8 V
Voltage from 2.8 V
Torque 4.0 kg*cm
Mass 280 g
Motor - shaft 5.0 mm
Voltage nominal 2.8 V
Stepper - current: 1.7 A
Stepper - coil resist. 1.65 Ω
Stepper - resolution 200 steps
Stepper - induct. 3.2 mH
Stepper - fixing NEMA17
Stepper - type bipolar
