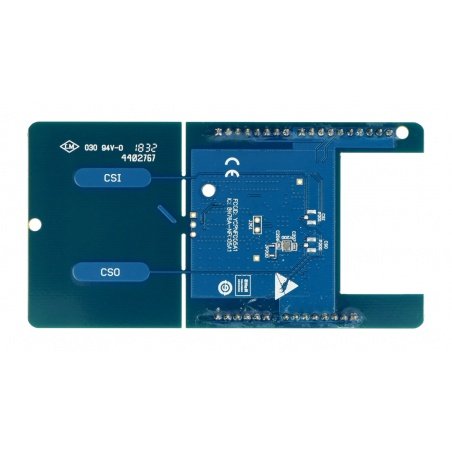

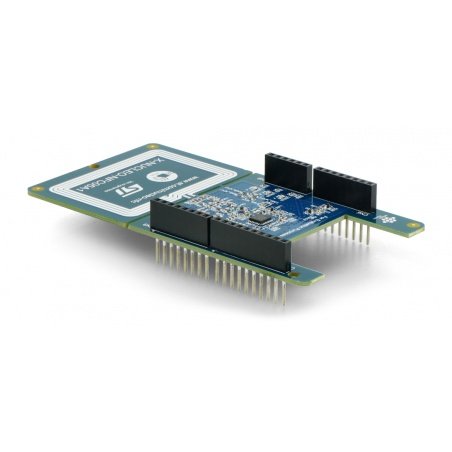

X-NUCLEO-NFC05A1 - NFC card reader expansion board - ST25R3911B - for STM32 and STM8 Nucleo

Index: MAS-18798 EAN: 5904422365073
Expansion board for STM32 Nucleo and STM8 Nucleo equipped with NFC card reader based on ST25R3911B chip. Supports communication in accordance with ISO14443A / B, ISO15693, FeliCa and AP2P standards. It enables detecting, reading and writing NFC tags of type 1, 2, 3, 4 and 5. Equipped with ST25R3911B microcontroller. The device works with AAT technology - automatic antenna tuning - which allows to use the reader even near metal parts.
€17.36
€14.11 tax excl.

Available
(Check quantity)
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: STMicroelectronics

Product description: X-NUCLEO-NFC05A1 - NFC card reader expansion board - ST25R3911B - for STM32 and STM8 Nucleo.

Expansionboardfor STM32 Nucleo and STM8 Nucleo equipped with NFCcardreader based onST25R3911Bchip. Supports communication in accordance with ISO14443A / B, ISO15693, FeliCa and AP2P standards. It enablesdetecting,readingandwritingNFC tags of type 1, 2, 3, 4 and 5. Equipped with ST25R3911B microcontroller. The device works with AAT technology - automatic antenna tuning - which allows to use the reader even near metal parts.

Płytka rozszerzeń czytnika kart NFC.
NFC card reader expansion board.
Oparta o mikrokontroler ST25R3911B.
Based on ST25R3911B microcontroller.

Technical specification

  • Built-in NFC IC card reader: ST25R3911B
  • Antenna:
    • type: inductive
    • number of turns: 4
    • Frequency: 13.56 MHz
    • Dimensions: 47 x 34 mm
  • Six general purpose LEDs
  • Support for P2P ISO 18092 (NFCIP-1)
  • Support for ISO 14443A and ISO14443B
  • Support for ISO 15693
  • FeliCa
  • VHBR
  • 6.8 Mbps AFE and PCD to PICC framing
  • 3.4 Mbps PICC to PCD framing
  • Up to 1.4 W output power with diversity antenna
  • Dual antenna capability in single-ended configuration
  • Inductive and capacitive wake-up
  • Automatic antenna tuning system
  • Connectors compatible with Arduino Uno Rev3
  • Possibility to implement MIFARE Classic and other protocols
