The sensor of temperature and humidity DHT11 from the Grove series with a digital interface. The output is a digital signal. The temperature measurement range is from 0 °C to 50 °C and humidity is from 20 to 90% RH.
This product is only available in our market in Poland and cannot be sold to other countries.
The product is compatible with Arduino
The system has four pins on a special connector to which the cable is not included in the package.

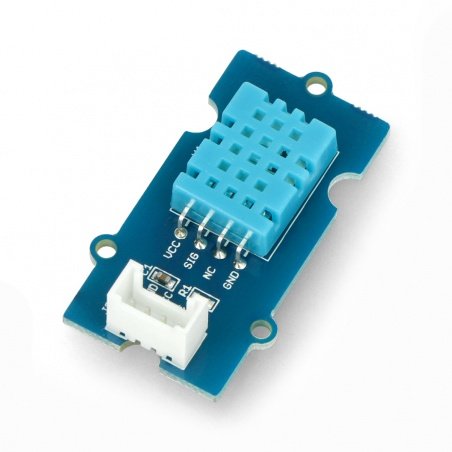

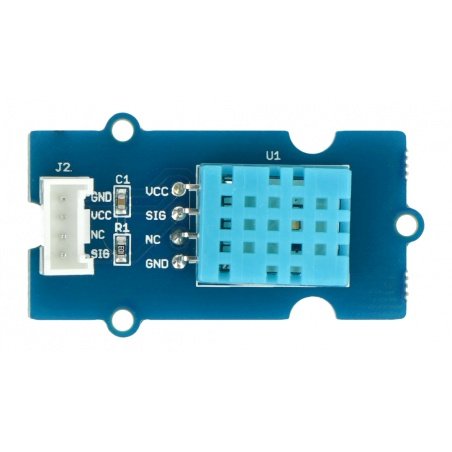

The distribution of elements on the board.
|VCC||Supply voltage from 3.3 V to 5 V.|
|GND||The ground of the system.|
|SIG||The sensor's signal.|
The sensor is compatible with the Raspberry
Our offer also has a shield for the Raspberry facilitating the sensors from the Grove series.
The manufacturer has prepared auser guidefor those wanting to support the sensor using the Raspberry.
- Supply voltage: from 3.3 V to 5 V
- Measuring range:
- Humidity: 20% to 90% RH
- Temperature: 0 °C to 50 °C
- Measurement accuracy:
- Humidity: ± 5 % RH
- Temperature: ± 2 °C
- Communications: digital signal
- Dimensions: 40 x 20 x 8 mm
- Weight: 10 g
