Description: Digital intensity sensor TSL25911 I2C - Waveshare 17146
Digitallight intensity sensorfrom Waveshare. The module is based onTSL25911chip, which enables detection of light intensityup to 88000 lx. The dynamic range is600M:1. It is compatible withArduinoandRaspberry Piand usesI2Cinterface to communicate with the main module. It is used when working in different lighting conditions and has low power consumption.
|
The product is compatible withArduinoandRaspberry Pi |

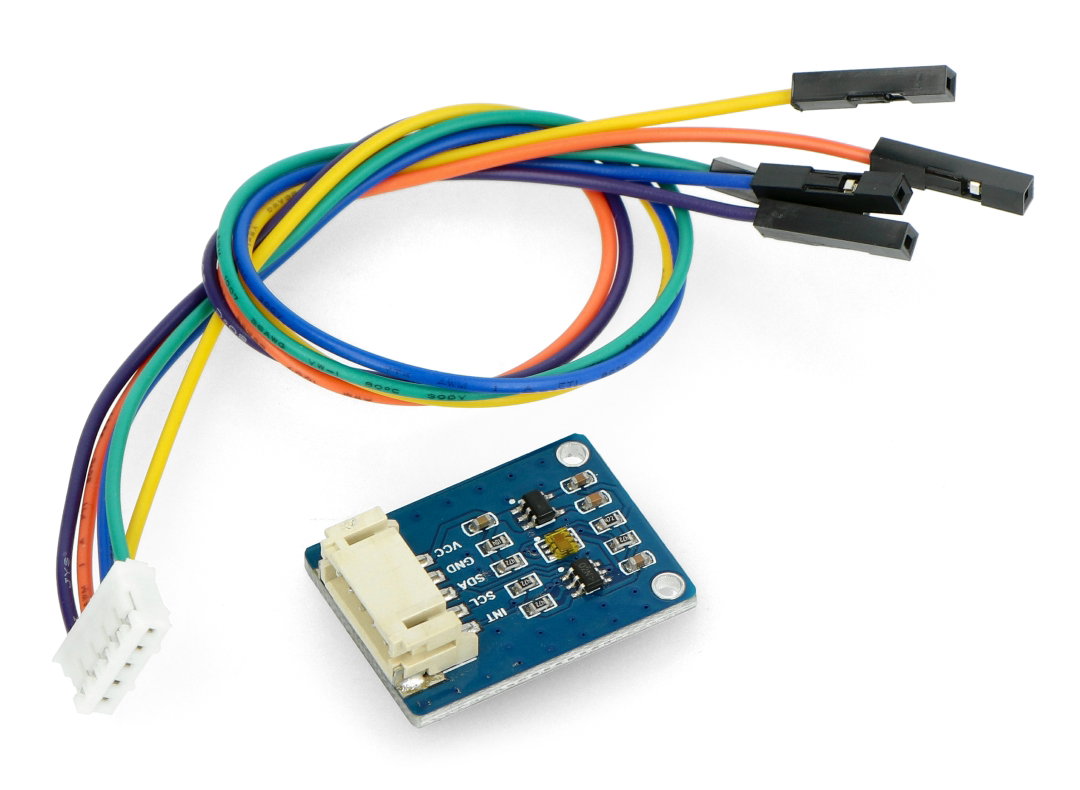

A dedicated connection cable is included.
Technical specification of the sensor TSL25911
- Supply voltage: 3.3 V to 5 V
- System: TSL25911FN
- Communication interface: I2C
- Interface address: fixed 0x29
- Measurement range: from 0 lx to 88000 lx
- Sensitivity: up to 188 ulx
- Dynamics: 600M:1
- The device is compatible with: Arduino, Raspberry Pi, STM32

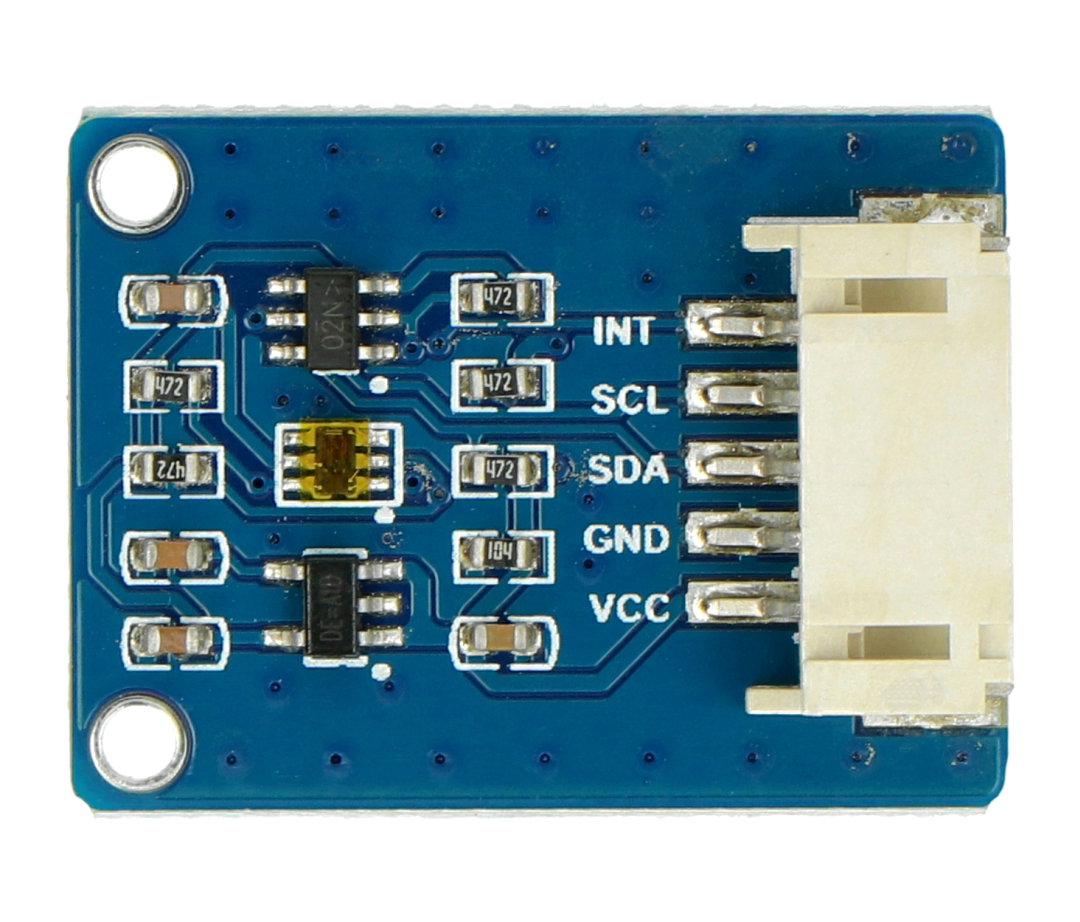

- The exits:
- VCC - power pin
- GND - system weight
- SDA - data line
- SCL - clock line
- INT - interrupt output (optional pin)
- Dimensions: 27 mm × 20 mm
- The size of the mounting hole: 2 mm
