SenseCAP Outdoor Enclosure - outdoor enclosure kit for Helium gateways - Seeedstudio 110991747

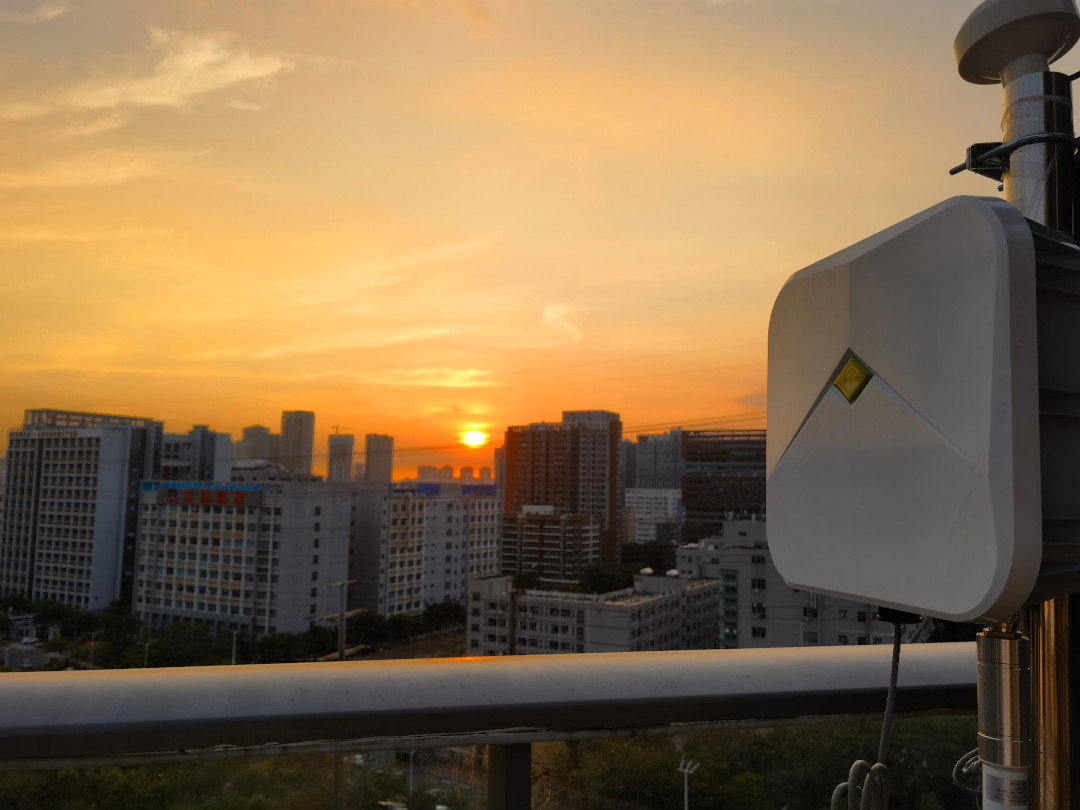

Enclosure specially designed for Helium gateways. It is waterproof , with an IP66 protection degree, thanks to which it allows the gate to be placed outside buildings when the ambient temperature is in the range from -40 ° C to + 85 ° C. Carefully selected size and design make the SenseCAP Outdoor Enclosure compatible with most popular hotspots such as SenseCAP M1 and M2, BobCat miner 300, RAK hotspot, Cal-Chip, Nebra and more. The kit also includes the necessary mounting accessories.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: SenseCAP Outdoor Enclosure - set of external enclosure for Helium gates - SenseCAP M1, M2, BobCat, RAK, Nebra - Seeedstudio 110991747
Enclosure specially designed for Helium gateways . It is waterproof , with an IP66 protection degree, thanks to which it allows the gate to be placed outside buildings when the ambient temperature is in the range from -40 ° C to + 85 ° C. Carefully selected size and design make the SenseCAP Outdoor Enclosure compatible with most popular hotspots such as SenseCAP M1 and M2, BobCat miner 300, RAK hotspot, Cal-Chip, Nebra and more. The kit also includes the necessary mounting accessories.
Botland is an official distributor of electronics and robotics solutions from Seeedstudio. Hundreds of ready to use devices, components and modules are available from stock or to order. Our team guarantees that all Seeedstudio products presented here are original.
The accessories included in the kit allow the housing to be mounted on a pole.
Special features of the product
- Waterproof casing with IP66 protection that allows the gateway to be placed outdoors
- Universal and suitable for most Helium gates, e.g. SenseCAP M1, SenseCAP M2, BobCat, RAK and others
- The set includes all the necessary mounting elements that allow you to mount the device on a wall or pole
- It allows you to get a wider range of the LoRaWAN application

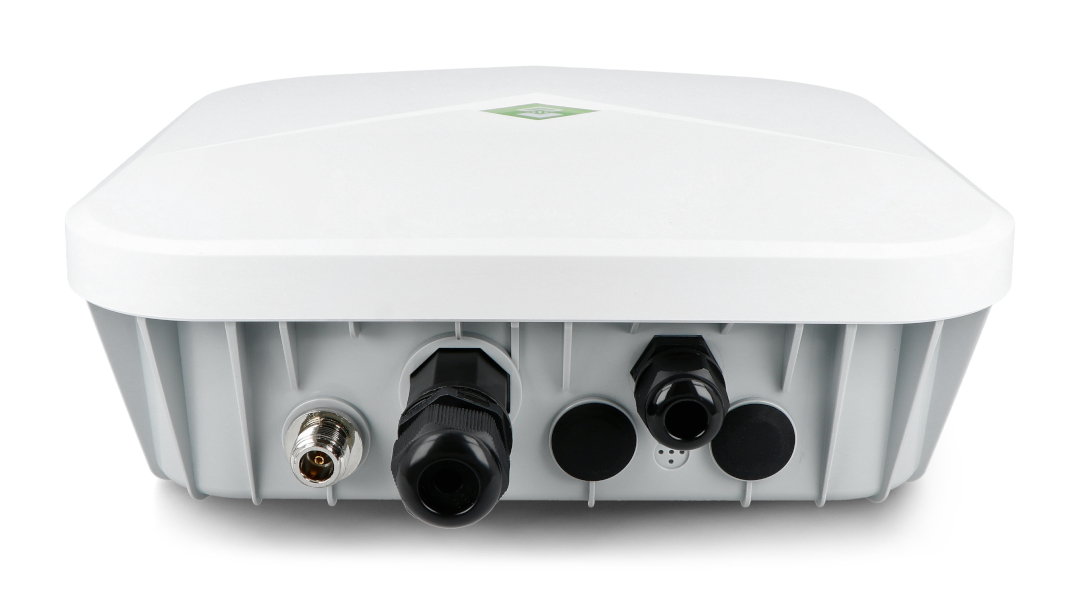

- Access to many useful interfaces including 3x N-type female interface for LoRa antenna, 1x Ethernet connector with cable gland for Ethernet cable, 1x PG9 interface for power supply and 1x lightning arrester ground connector
- Cable entries are not fitted by default, which provides the user with flexibility and allows the housing to be individually adapted to the gateway
Technical specification of the housing
- Purpose: for Helium gates (e.g. SenseCAP M1, M2, BobCat, RAK, Nebra)
- For external use: yes
- Waterproof: yes, protection grade IP66
- Holes:
- N x3 antenna cable gland holes,
- Ethernet x1 cable gland hole,
- PG9 hole x1
- Housing material: PC
- White color
- Housing dimensions without connectors: 255 x 275 x 92 mm
- Kit weight: 2.2 kg

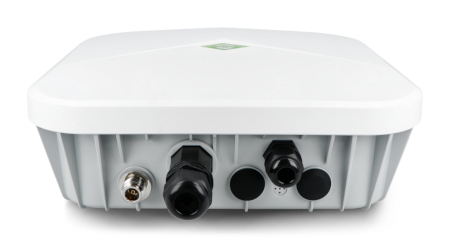

Housing openings with cable glands and plugs.

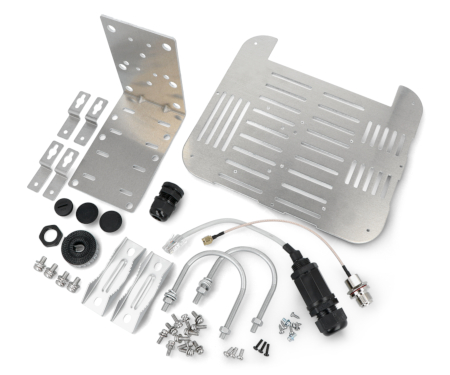

Mounting elements included with the SenseCAP Outdoor Enclosure kit.
Kit contents

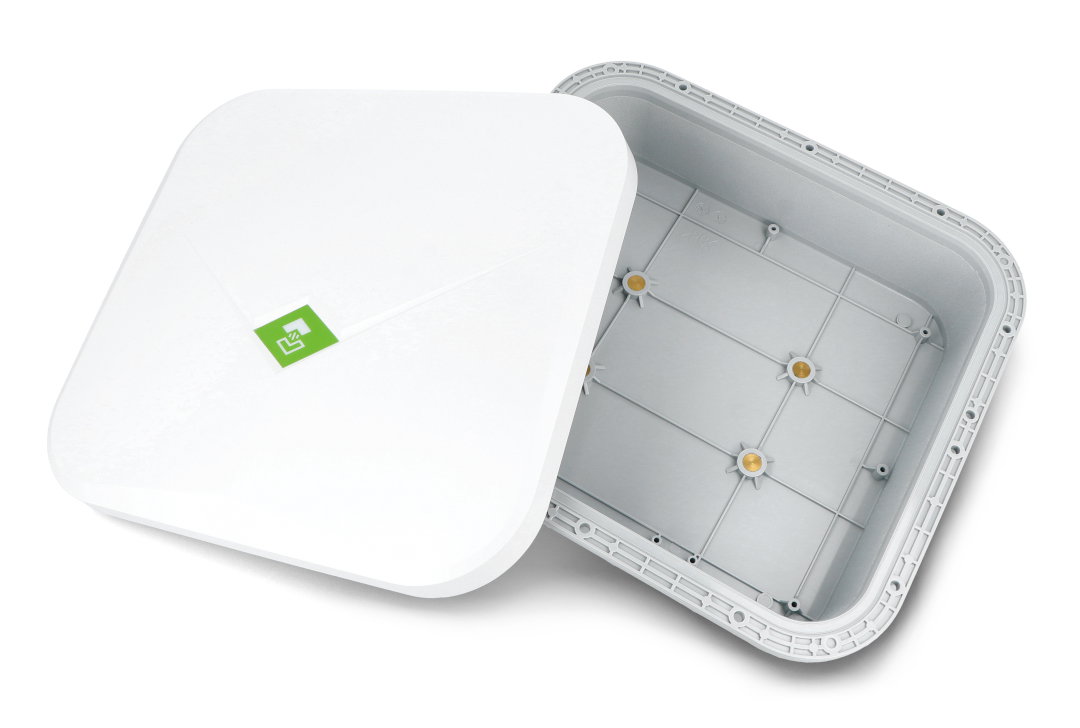

- Housing consisting of a chamber and a lid
- Mounting elements for mounting the housing on a pole
- Mounting elements for mounting the housing on the wall
- Plate stabilizing the gate inside the housing
- Ethernet cable gland
- Antenna cable gland
- Cable organizer - Velcro band - 1 m
- Waterproof silicone plug (2 pieces)
- PG9 connector
- PG9 plug
- A set of mounting screws
Useful links
| Name | Value |
|---|---|
| Width | 35.5 cm |
| Height | 31.5 cm |
| Depth | 12.5 cm |
| Weight | 2.2 kg |
