Product description: Limit switch with roller WK7141
A limit switch with a 5 cm spring-loaded lever and a roller at the end. It operates at 250 V and has a maximum load of 2 A. A limit switch detects the position of a moving element. When it reaches a specific position, it disconnects the circuit or the entire device. These switches are used in industrial automation systems and even building automation.

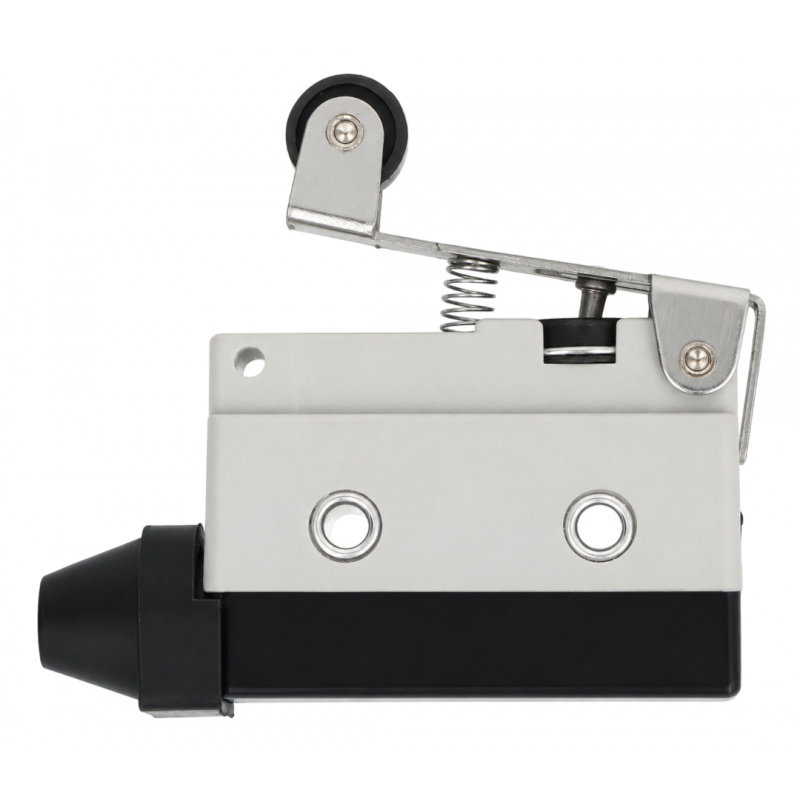

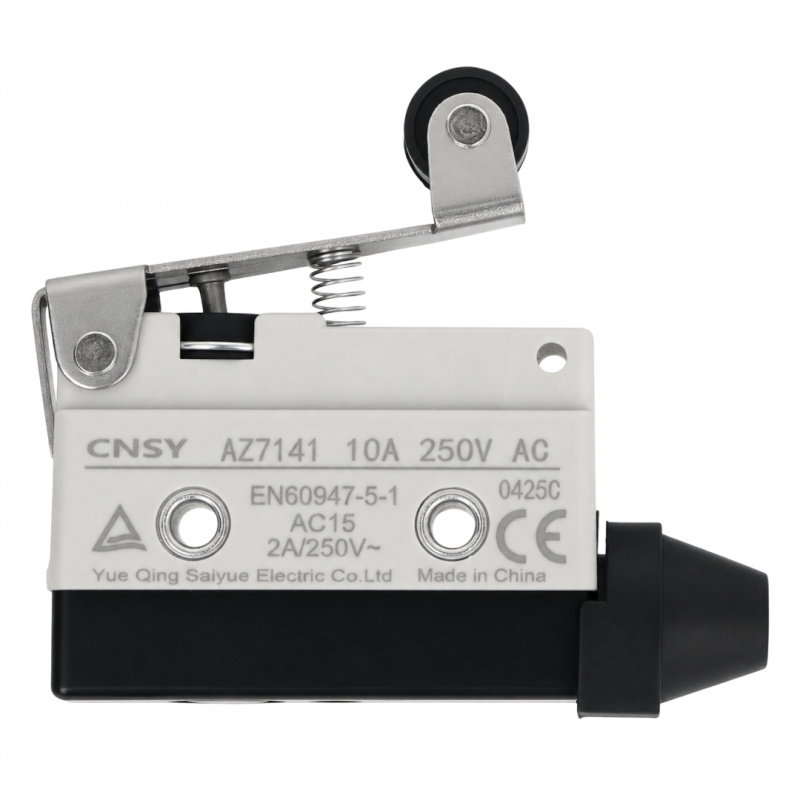

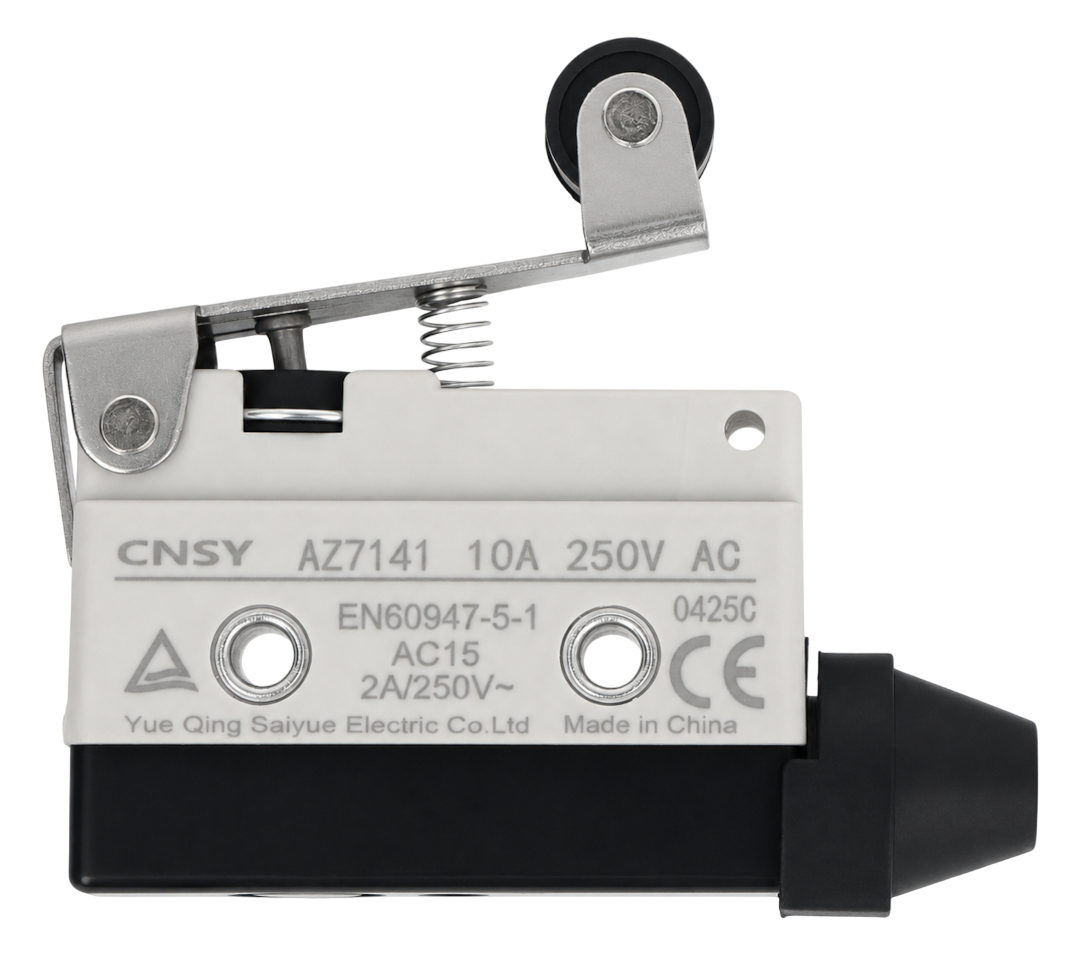

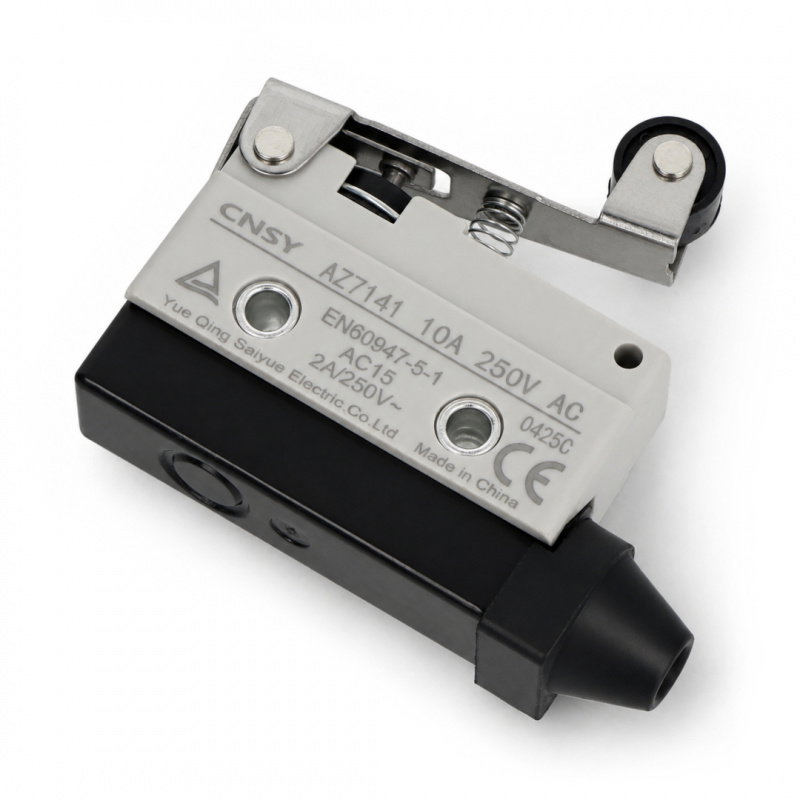

Limit switch with roller - WK7141.
WK7141 limit switch specifications
- Number of switch positions: 2
- Switch type: monostable
- Number of switch circuits: 1
- Switch type: limit switch
- Switch current: 2 A
- Switching method: ON - (OFF) / OFF - (ON)
- Switch voltage: 250 V
- Number of pins: 3
- Terminal type: screw
- Mechanical mounting method: screwed
- It has a lever with a roller at the end
- Lever length: 50 mm
- Dimensions: 70 x 40 x 20 mm
