The Raspberry Pi Zero V1.3 - 512 MB OF RAM
Description
Popularminicomputer Raspberry Piin a miniature version. This model has a processor Broadcom BCM2835 with a clock frequency of 1 GHz and 512 MB of RAM. Plate features: port miniHDMI, microUSB OTG slot, 40 GPIO, camera connector, a connector for memory card microSD and four mounting holes.
0%
|
Raspberry Pi Zero is one of the smallest minicomputers available on the market. The manufacturer claims that the used CPU is 40% faster than this in the first version of the raspberry. |
Key features
Raspberry has the main communication interfaces, which can be found in office computers of class PC:
- processor Broadcom BCM2835 ARM11with clock frequency of 1 GHz,
- 512 MB RAM- internal memory,
- microSD slot- just like in the previous versions, the operating system is onthe microSD card, which must be purchased separately
- the miniHDMI port, the Raspberry Pi Zero has a connector miniHDMI 1.4, through which can be sent image and sound,
- connector for micro USB OTGallows to connect peripherial devices, compatible with the USB OTG,
- CSI camera connector- allows you to connect a camera compatible with the version of the Raspberry Pi viaan additional adapter.To connect the camera, adapter is necessary.
- 40 x GPIO- outputs/inputs with general purpose that can be used to control the LEDs, buttons, drivers of engines. Among them are the pins supportting interfaces: I2C, SPI and UART,
- Power- as with previous versions, Raspberry Pi Zero is powered via microUSB slot (in our offer you will find alsospecial power supplies),
- Blade dimensions: 65 x 30 x 5 mm.

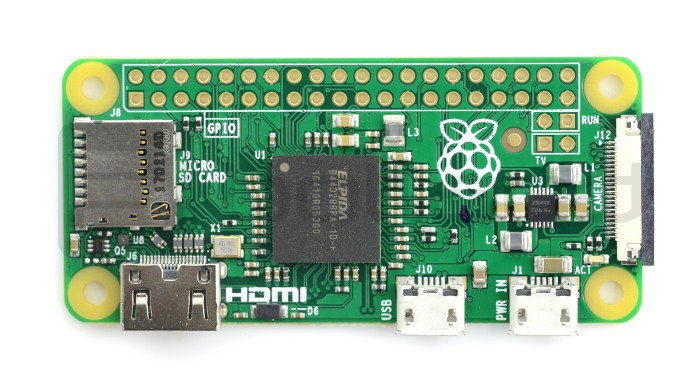

The distribution of elements on the board of Raspberry Pi Zero. In our offer, you will also find special cases.
