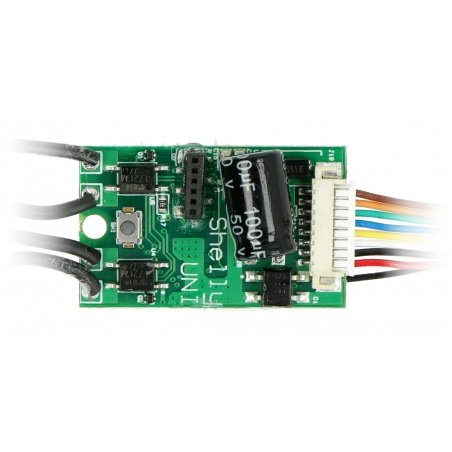

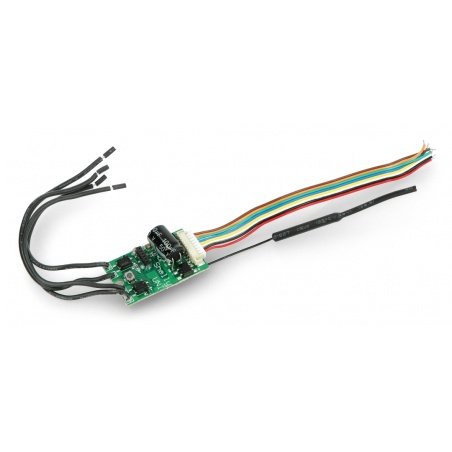

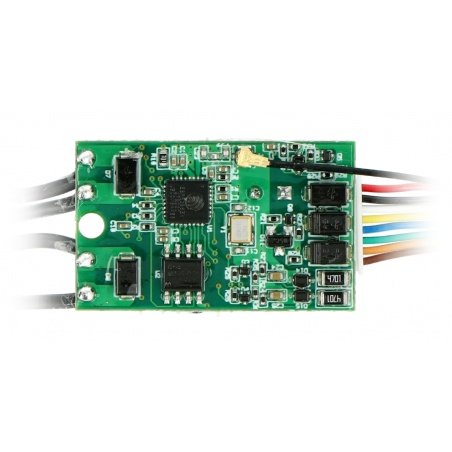

Shelly Uni - universal WiFi module

Index: ALT-17755 EAN: 5904422369309
Shelly Uni's universal WiFi module, which allows you to control any legacy device via WiFi, such as a coffee machine. Powered by 12 V to 36 V DC and 12 V to 24 V AC. The module is equipped with 2 digital inputs that support voltages from 2.2 V to 35 V DC and from 12 V to 24 V AC, as well as two potential-free outputs that allow switching voltages up to 36 V AC and up to 24 V DC / 100 mA. Three DS18B20 temperature sensors can also be connected to the module.
€16.26
€13.22 tax excl.
Waiting for confirmation of delivery date
Product unavailable
30-day returns
PayPal payment
Manufacturer: Shelly

Product description: Shelly Uni - universal WiFi module

Shelly Uni's universal WiFi module, which allows you to control any legacy device viaWiFi, such as a coffee machine. Powered by 12 V to 36 V DC and 12 V to 24 V AC. The module is equipped with2 digital inputsthat support voltages from 2.2 V to 35 V DC and from 12 V to 24 V AC, as well astwo potential-free outputsthat allow switching voltages up to 36 V AC and up to 24 V DC / 100 mA. ThreeDS18B20temperature sensors can also be connected to the module. The board is protected by a plastic cover that protects it from moisture, dust and accidental short circuit.

Uniwersalny moduł WiFiUniversal WiFi module.
Schemat podłączenia

Wiring diagram for Shelly Uni.

Main features of the Shelly Uni module

  • Small in size- Shelly Uni is the smallest module that can turn any device into a smart one. Its dimensions are 33 x 20 x 13 mm.
  • Wide range of supply voltage- the module can be supplied with 12 V to 36 V DC or 12 V to 24 V AC.
  • Universal digital input- has 2 independent digital inputs for 2.2 V to 36 V DC or 12 V to 24 V AC.
  • Universal outputs- equipped with 2 potential-free outputs, which allow control from the inputs or separately, can switch voltage up to 36 V AC and up to 24 V DC and with a maximum current of 100 mA for each.
  • Universal ADC- allows for voltage measurement from 0 V to 30 V DC.
  • Temperature and humidity sensor- Shelly Uni supports up to 3 DS18B20 sensors or 1 humidity sensor.
  • Universal protocols- supports REST, MQTT, CoAP, Alexa, Google Home and Samsung Smart Things, making it compatible with many home automation platforms.
  • Moisture protection- the board has a plastic cover to protect against dust, moisture and accidental short circuit.

Shelly Uni WiFi Universal Module Specifications

Parameter Value
AC supply voltage 12 V to 24 V
DC supply voltage 12 V to 36 V
Entrances 2 independent inputs from 2.2 V to 36 V DC and 12 V to 24 V AC
Outputs 2 potential-free outputs up to 36 V AC and 24 V DC, max. 100 mA each
Overload protection No
Energy measurement ADC - two ranges from 0 to 12 V and from 12 V to 30 V
Number of channels 2
Energy consumption Up to 1 W
Intelligent switching on/off Yes
Sunrise/sunset function Yes
Weekly schedule Yes
UL option No
WiFi communication protocol 802.11 b/g/n
Frequency From 2400 MHz to 2500 MHz
Signal strength 1 mW
Reach Up to 50 m outside and up to 30 m inside (depending on the materials of the building)
Operating temperatures from -40°C to 40°C
Dimensions 33 x 20 x 13 mm
