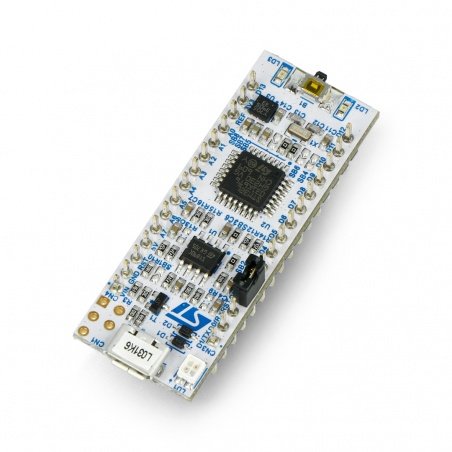

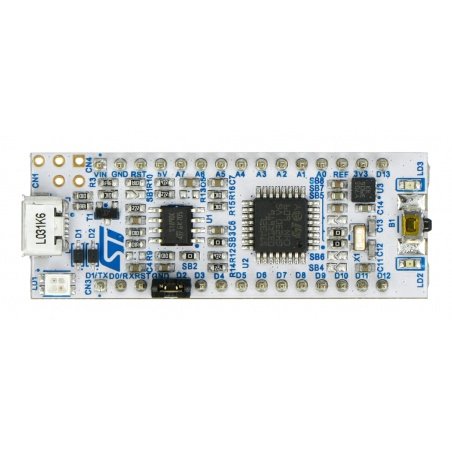

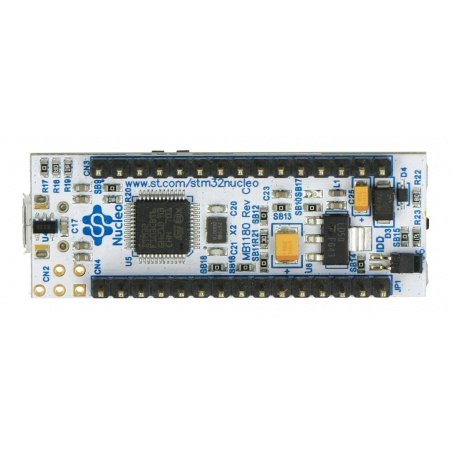

STM32 NUCLEO-32 L031K6 - with STM32L031K6 MCU - compatible with Arduino Nano

Index: MAS-18799 EAN: 5904422364878
Nucleo board with 32-bit ARM Cortex M0+ core clocked at 32 MHz. The Nucleo works with most popular development platforms, which include Keil, IAR, and environments based on the GCC compiler. The connector layout is compatible with Arduino Nano, thus extending the functionality of the platform. The Nucleo-32 does not require any separate probe as it integrates the ST-LINK debugger / programmer.
STM32 NUCLEO-32 L031K6 - with STM32L031K6 MCU - compatible with Arduino Nano
€18.21
€14.80 tax excl.
Available
Check quantity
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: STMicroelectronics

Product description: STM32 NUCLEO-32 L031K6 - with STM32L031K6 MCU - compatible with Arduino Nano

Nucleoboard with32-bitARM Cortex M0+core clocked at32 MHz. Nucleo works with most popular development platforms, which include Keil, IAR, and environments based on GCC compiler. The connector layout is compatible withArduino Nano, thus extending the functionality of the platform. The Nucleo-32does not require any separate probe, as it integrates the ST-LINK debugger / programmer.

Product compatible with Arduino Nano

The manufacturer providestechnical documentationand a detaileduser guide.

STM32 NUCLEO-32 L031K6 - z MCU STM32L031K6.STM32 NUCLEO-32 L031K6 - with STM32L031K6 MCU.
Wyposażona w rdzeń ARM Cortex M0+.Equipped with ARM Cortex M0+ core.

Technical specification

  • STM32L031K6 microcontroller
  • Core: ARM Cortex M0+
  • Clock speed: 32 MHz
  • RAM: 8 kB
  • Flash memory: 32 kB
  • Supply voltage: 1.65 V to 3.6 V
  • Interface: I2C, SPI, UART, USART
  • Number of I/Os: 25
  • Number of ADC channels: 10
  • Connector compatible with Arduino Nano
  • Built-in ST-LINK/V2 debugger with SWD connector
  • Equipped with three LEDs
    • LD1 - USB communication
    • LD2 - power supply
    • LD3 - user led
  • RESET button
  • Compatible environments: ARM mbed, IAR, Keil, GCC
