Product description: 3D scanner - Creality RaptorX
Creality RaptorX is the world's first wireless hybrid 3D scanner , combining 34 intersecting blue laser lines, 7 parallel lines and NIR light . It offers metrological precision down to 0.02 mm and scanning objects from 5 mm to 4000 mm in size. With a processing speed of up to 1,020,000 points/s and scanning up to 60 fps (laser) and 30 fps (NIR), it enables smooth digitization of complex shapes. Equipped with WiFi 6, the AX6000 allows data transfer at up to 4.7 Gb/s with a latency of 10 ms. The 35400 mWh battery provides up to 4 hours of operation, and a quick charge of up to 80% takes 1.5 hours. The scanner weighs only 405 g. RaptorX also offers marker-free scanning, full-color imaging and intuitive CrealityScan software make it an ideal tool for reverse engineering, quality control, character digitization and 3D printing .

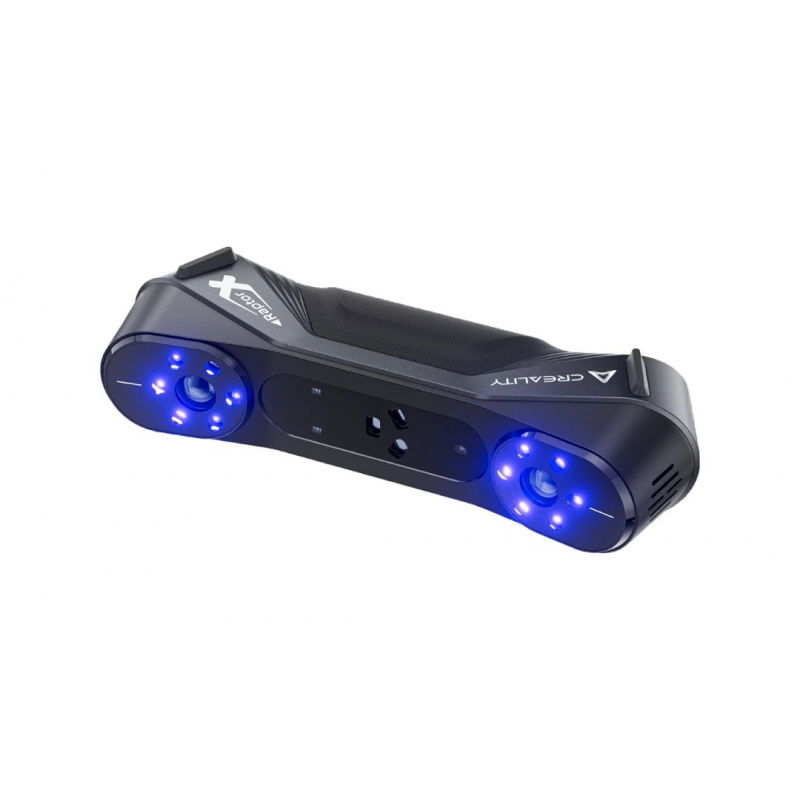

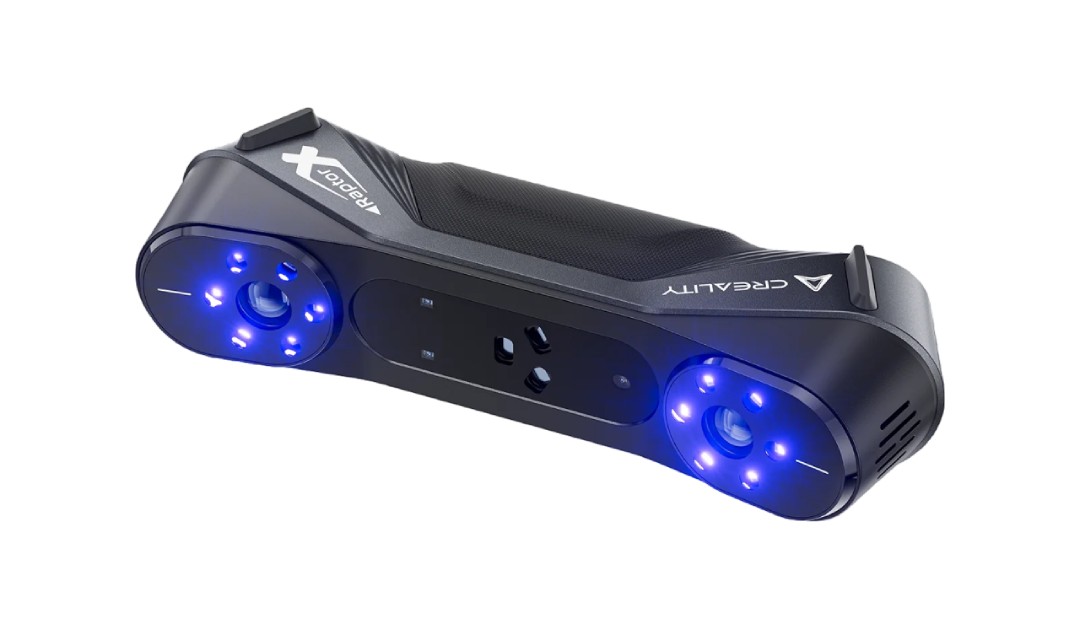

3D scanner - Creality RaptorX.

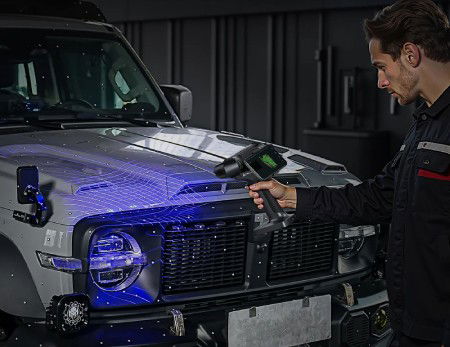

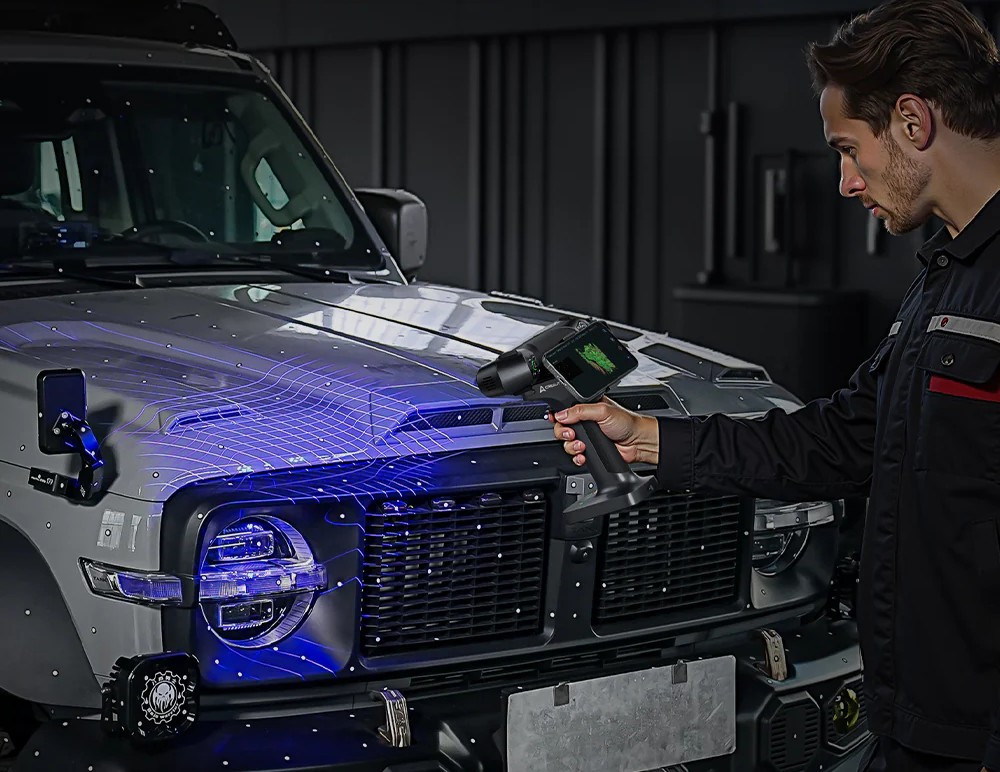

34 intersecting laser lines enable quick scanning of medium to large objects.
Advanced Hybrid 3D Scanning Technology
Creality RaptorX uses innovative hybrid technology, combining 41 blue laser lines and near infrared (NIR) light , providing high precision and flexibility. 34 intersecting blue laser lines enable fast mapping of large objects , and 7 parallel lines allow you to capture the smallest details in HD mode . NIR technology enables scanning without markings, ideal for black and glossy surfaces . The use of these methods in one device makes RaptorX an exceptionally versatile tool in professional 3D scanning
Super fast scanning with the highest accuracy
RaptorX offers incredible performance, processing up to 1,020,000 points per second , which significantly reduces the time needed to obtain a full 3D model. Laser mode allows scanning at up to 60 frames/s , while NIR mode reaches 30 frames/s . Thanks to such high parameters, the device easily copes with both simple forms and complex technical shapes. It is an ideal solution for users who expect the highest quality reproduction in minimal time.
Reliable connectivity and long life
Equipped with an advanced WiFi 6 (AX6000) module , RaptorX offers lightning-fast data transfer speeds of up to 4.7 Gbps and a minimum latency of 10 ms. This allows for smooth transmission of scans without the use of cables, increasing the comfort of work in all conditions. A large 35400 mWh battery provides up to 4 hours of scanning , and fast charging to 80% takes only 1.5 hours. The device is therefore ready for long scanning sessions both in the studio and in the field.
Scan from the smallest details to large-sized objects
Creality RaptorX supports a wide range of object sizes - from just 5 x 5 x 5 mm in laser mode, to huge models up to 4000 x 4000 x 4000 mm in size. In NIR mode, the range is from 150 x 150 x 150 mm to 2000 x 2000 x 2000 mm . Such capabilities allow for the digitization of both precision technical elements and large objects such as car bodies, figures or works of art. The scanner's versatility makes it an ideal tool in many industries.

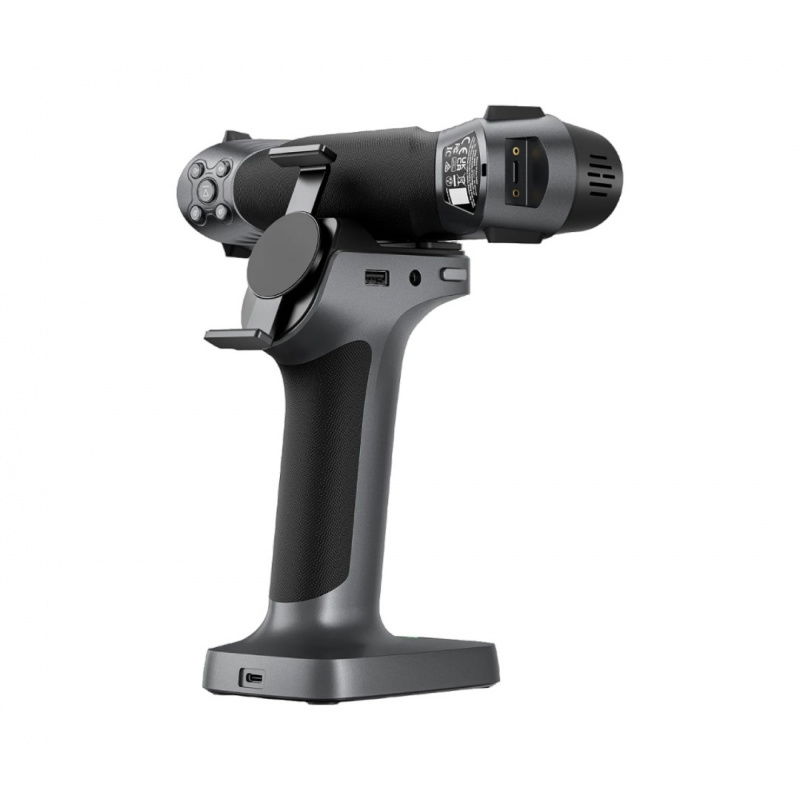

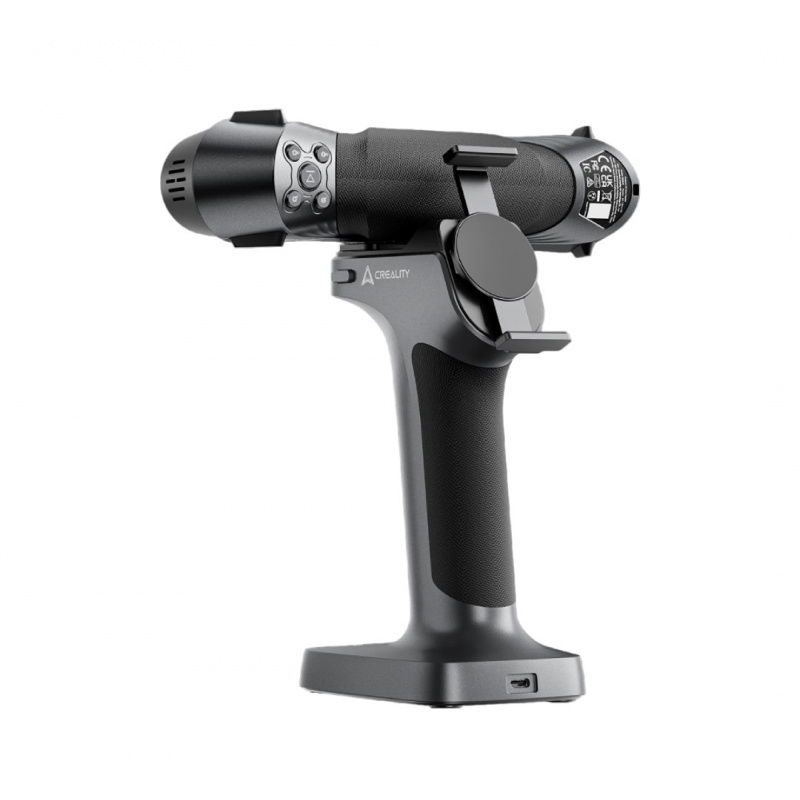

With wireless operation and intuitive software, RaptorX provides exceptional mobility and ease of use.

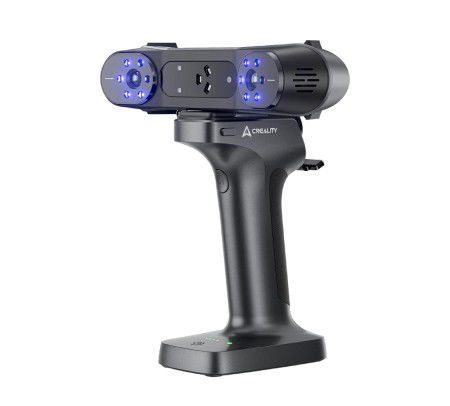

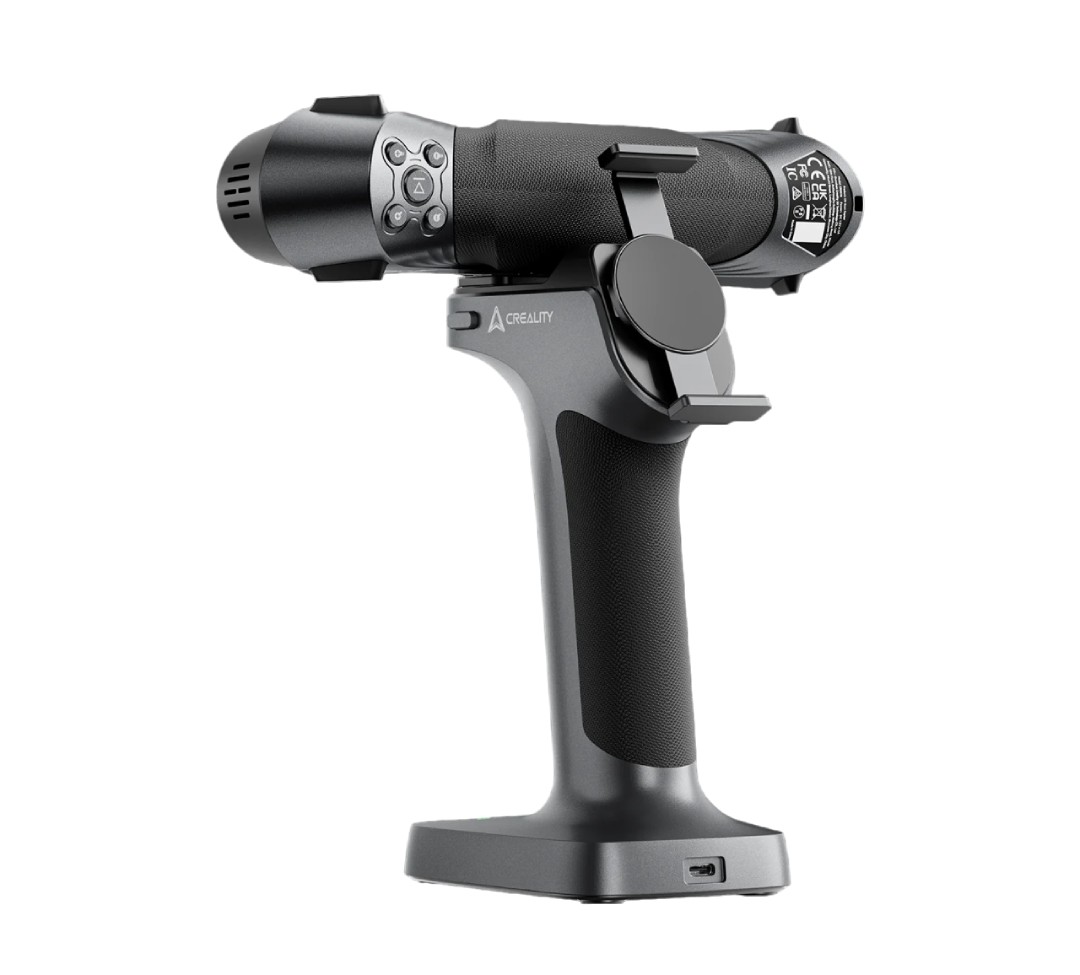

The scanner has a holder for wireless scanning and battery charging.
Professional software and integration with CAD/CAM tools
The scanner works with CrealityScan software, offering an intuitive user interface, automatic model processing and point cloud editing . Thanks to support for popular file formats (STL, PLY, OBJ), data from the scanner can be easily used in CAD projects, 3D printing or quality analysis. RaptorX integrates seamlessly with Geomagic Control X, Design X and Verisurf Inspect , supporting reverse engineering and manufacturing processes. Scanning has never been so simple and comprehensive.
Other features and functions that make the difference

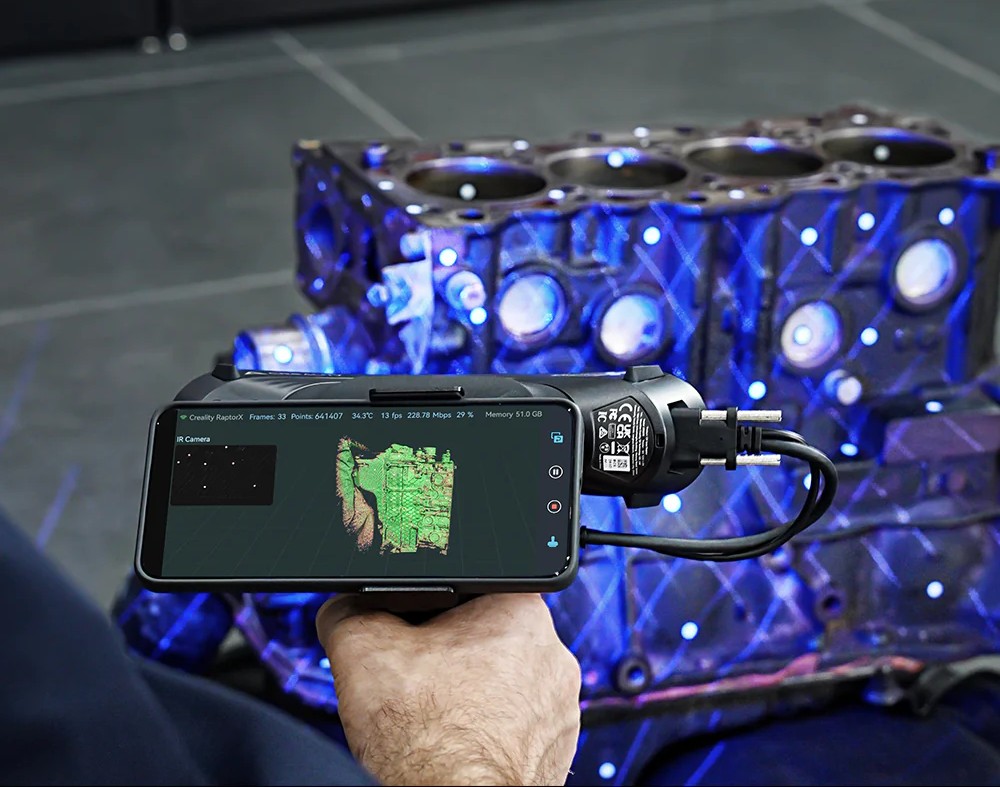

RaptorX offers a range of functionalities that significantly improve the convenience of everyday work. The built-in LED indicator, non-slip grip and attachable lanyard increase safety and ergonomics during long scanning sessions. Thanks to the magnetic phone holder and mirroring function, you can preview the scan in real time without the need to use a computer. Full-color scanning in 24-bit color depth and additional LED lighting guarantee high quality texture reproduction. Stability and accuracy of operation are supported by the temperature compensation algorithm and precise optics with low deformation, which makes the scanner perfect also in outdoor conditions - even with a light intensity of up to 100,000 lux.
Kit Contents
- Creality RaptorX 3D Scanner
- Wireless scanning and charging holder
- Precision Glass Calibration Plate
- Card with quick connector screwed manually
- Magnetic phone holder
- WiFi 6 USB Adapter
- Power adapter kit
- USB 3.0 cable (USB Type-C - USB Type-A)
- Data transmission cable
- Fast charging cable
- Set of reflective markers (40 pcs. D6 mm + 40 pcs. D3 mm)
- USB Type-C Adapter
- Cleaning cloth
- Safety leash
- Quick start guide
- Carrying case

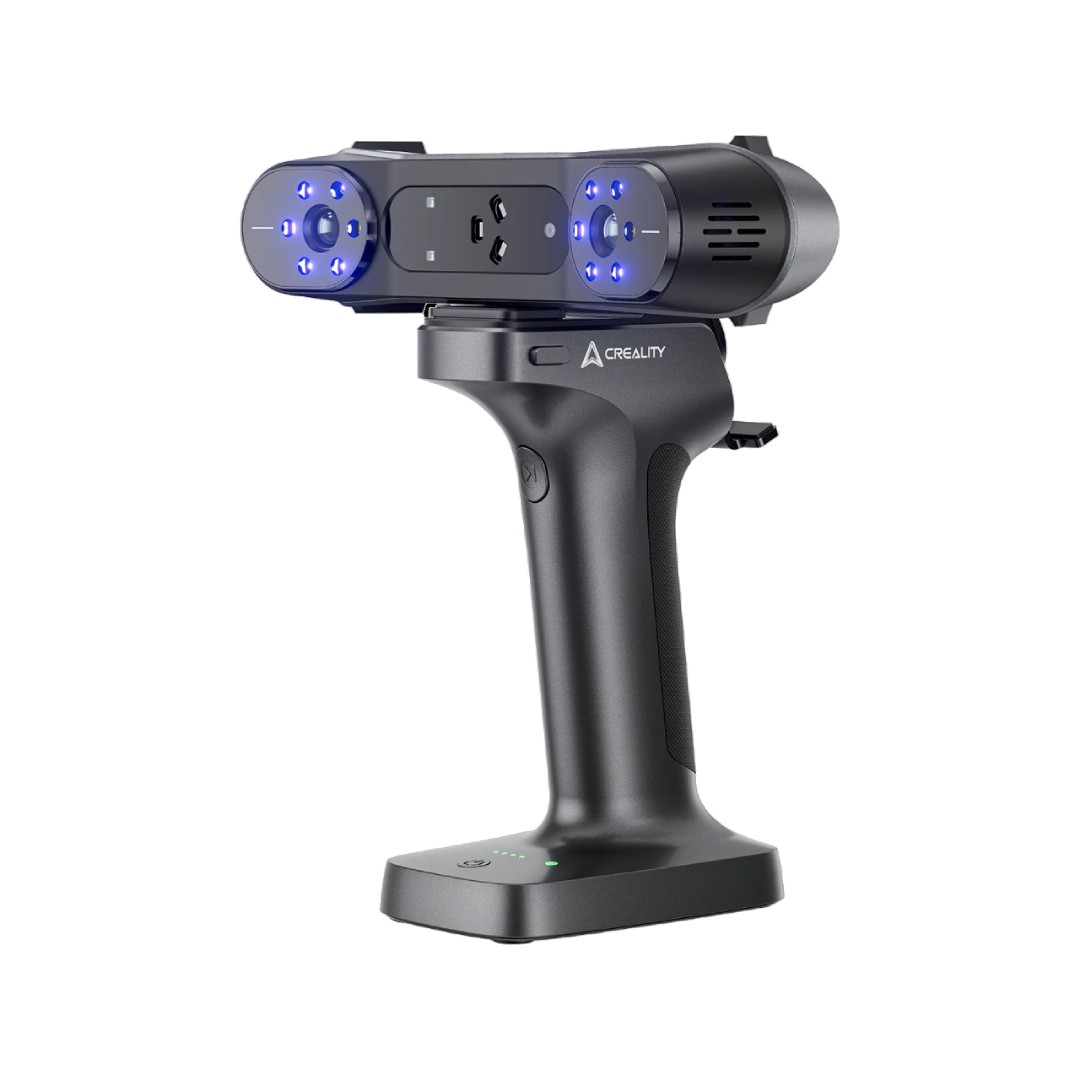

Equipped with One-Shot 3D imaging technology, Creality RaptorX is naturally stabilized and less prone to tracking loss.
| Creality RaptorX 3D Scanner Technical Specifications | |||
|---|---|---|---|
| Data interface | USB 3.0 / USB Type-C | ||
| Power supply | 12V / 2A | ||
| Operating system | Windows 10/11 (64-bit), macOS | ||
| Calibration | precision glass plate | ||
| Wireless scanning | supported | ||
| Software | Creality Scan | ||
| Operating temperature | from -10°C to 40°C | ||
| Working humidity | from 0% to 90% RH | ||
| Dimensions | 215x50x74mm | ||
| Mass | 405g | ||
| Scan mode | 7 parallel blue laser lines | 34 parallel blue laser lines (cross) | NIR (structured light) |
| Accuracy | up to 0.02 mm | up to 0.02 mm | up to 0.05 mm |
| Volumetric accuracy | 0.02mm + 0.06mm/m | 0.02mm + 0.06mm/m | 0.05mm + 0.1mm/m |
| 3D resolution | from 0.02mm to 2mm | from 0.02mm to 2mm | from 0.1mm to 2mm |
| Minimum scan volume | 5x5x5mm | 5x5x5mm | 150x150x150mm |
| Single capture range | 270 x 170mm at 300mm | up to 452 x 348 mm at 600 mm | 630 x 550mm at 1000mm |
| Working distance | from 150mm to 400mm | from 200mm to 600mm | from 170mm to 1200mm |
| Scanning speed | up to 60fps | up to 60fps | up to 30fps |
| Measurement speed | 420,000 measurements/sec | 1,020,000 measurements/sec | 3,580,000 measurements/sec |
| Alignment mode | marker | marker | marker / geometry / texture |
| Color Mapping | Yes | Yes | Yes |
| Assist Diodes (Texture) | 12 white LEDs | 12 white LEDs | 12 white LEDs |
| Ambient Lighting (Max) | ≤ 50,000 lux | ≤ 100,000 lux | ≤ 30,000 lux |
| Marker support | 12 blue LEDs | 12 blue LEDs | 12 blue LEDs |
| 3D camera resolution | 1920x1200px | 1920x1200px | 1920x1200px |
| Laser Safety | class I | class II | class I |
| Button/switch | mechanical | mechanical | mechanical |
| IMU | Yes | Yes | Yes |
| Output file formats | .ply, .obj, .stl | .ply, .obj, .stl | .ply, .obj, .stl |
