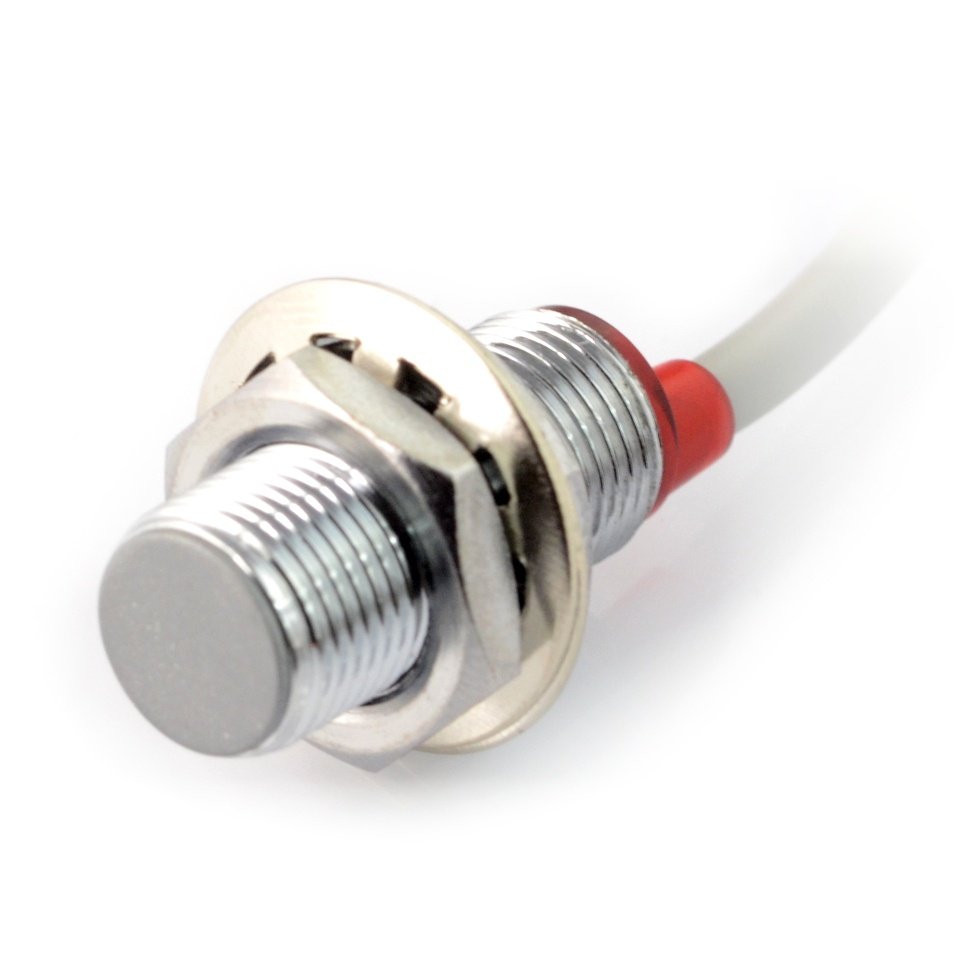

Proximity Hall sensor - NJK-5002C 10mm 6-36V

Index: DNG-11861 EAN: 5904422372675

Proximity sensor with Hall effect, with a cable with the length of 110 cm and nuts to facilitate mounting. It detects metal at a distance of up to 2 mm. The object detection is signaled by the appearance of a low status at the output. It is powered with the voltage from 6 V to 36 V. Type: NPN.

Proximity Hall sensor - NJK-5002C 10mm 6-36V
€5.90
€4.80 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: OEM

Description

Proximity sensor with Hall effect, with a cable with the length of 110 cm and nuts to facilitate mounting. It detects metal at a distance of up to 2 mm. It is powered with the voltage from 6 V to 36 V. The object detection is signaled by the appearance of a low status at the output (black wire) and the switching on of the red LED.

Specification

  • Supply voltage: 6 V to 36 V
  • Current consumption: 12 mA
  • Measuring range: 0 to 10 mm ± 10%
  • Output signal: digital 200 mA
  • Output status: by default, in a high status, after the detection of the object, it changes to low status.
  • Output type: NPN - NO
  • LED, indicating the detection of the object
  • Detected object: metal
  • Response time: below 2 ms
  • Diameter: 12 mm
  • Sensor's length: 25 mm



Connection

  • Brown wire - supply voltage
  • Blue wire - ground - GND
  • Black wire - digital output - OUT
    • there is no object - high status
    • object detected - low status
Package width 7.5 cm
Package height 2 cm
Package depth 13 cm
Package weight 0.1 kg
