Product description: LWLP5000 I2C Differential Pressure Sensor - DFRobot SEN0343

High resolution differential pressure sensor based on theLWLP5000chip. Communicates viaI2Cinterface, used to measure differential pressure at two points on the device. High-performanceMEMSchip and a special conditioning circuit, allows to make comparative measurements between two points. In addition, the chip uses a unique multi-stage temperature compensation algorithm to reduce the environmental impact on the sensor output. The module allows for pressure measurements in the range of approx.500 pa. It requires connection to a microcontroller equipped with an I2C interface, such as anArduinoorRaspberry Pi, to work properly. It is poweredfrom 3.3V to 5V.

Main features

  • Multi-stage temperature compensation algorithm
  • Digital I2C output
  • High resolution
Czujnik różnicy ciśnień

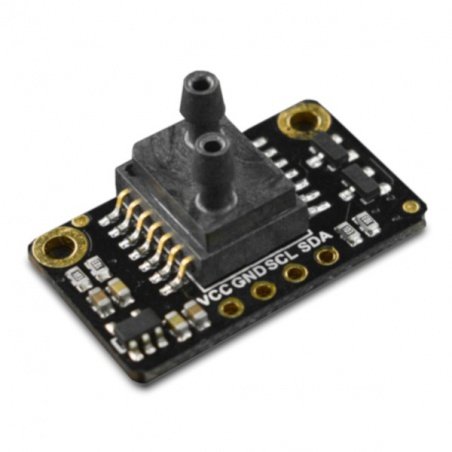

Differential pressure sensor LWLP5000.
Attention!

To ensure high resolution and long life of the sensor, use it in clean air. Be careful not to let water get into the sensor nozzle, as this will damage the sensor.

Czujnik różnicy ciśnień

DFRobot differential pressure sensor

Sensor application

  • Home care equipment
  • Portable medical equipment
  • Medical monitoring
  • Industrial control
  • Central ventilation system

Differential pressure sensor specifications

  • Operating voltage: 3.3 V or 5 V
  • Measuring range: ± 500 pa (± 1.5% FS)
  • Current consumption: up to 5 mA
  • Communication: I2C
  • I2C address: 0x00
  • Working temperature: from -40°C to 85°C
  • Temperature compensation range: -5°C to 65°c
  • Dimensions: 14.5 x 24 mm

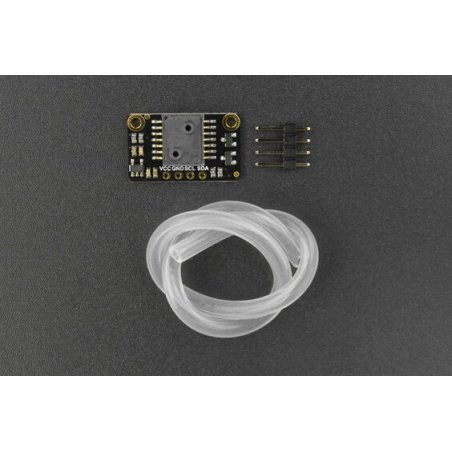

  • Included:
    • Differential pressure sensor
    • 4-pin goldpin strip
    • Silicon tube 20 cm

Connections of the module

Pin Description
VCC Supply voltage 3.3 V or 5 V.
GND System ground.
SCL I2C bus clock line.
SDA . I2C bus data line.
Sensor - type pressure
Package width 5.6 cm
Package height 6.2 cm
Package depth 2.5 cm
Package weight 0.01 kg
