- EOL
|
Attention! The product has been discontinued. Check other products in category. |
Product description: Voltcraft VC155 Universal Meter
Universal metercapable of measuringDC and ACvoltageup to 600 VandDC current up to 10 A. Additionally, with the Voltcraft VC155 we can measure resistance, temperature and diode test. The device has a robust housing with a comfortable bracket on the back panel, which makes it easy to place the meter at a right angle during measurements. An additional advantage of the meter is a built-inLED flashlight and backlit display, which significantly facilitates work in a darkened room.
Within the scope of quality control, allVoltcraftmeasuring devices undergo calibration in accordance with a workshop standard after the production phase. The certificate is not issued in a hard copy.

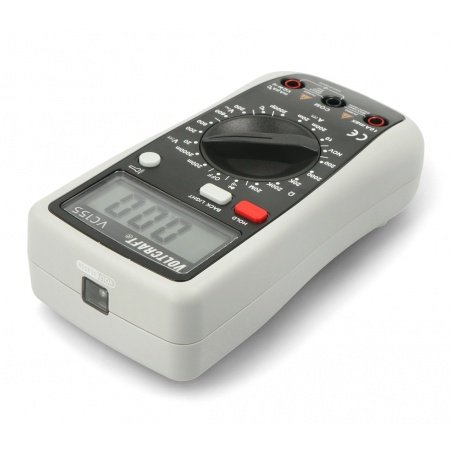

Voltcraft VC155 Universal meter.
The meter has a built-in LED flashlight.
Functions of the Voltcraft VC155 meter
- Manual selection of measurement range, allowing for selection of appropriate resolution
- Possibility to measure temperature and humidity with the device
- Backlit display and built-in LED flashlight facilitates measurements in poorly lit rooms
- HOLD function
- Rubber casing increases durability of the device and provides a firm grip during measurement
- Acoustic continuity tester
- Low battery indicator
Voltcraft VC155 specification
| Parameter | Range |
|---|---|
| Minimum measurement range of DC voltage | 0.1 mV |
| Maximum measuring range of DC voltage | 600 V |
| Minimum measuring range of AC voltage | 0.1 mV |
| Maximum measuring range of AC voltage | 600 V |
| Minimum measuring range of DC current | 1 µA |
| Maximum measurement range of DC current | 10 V |
| Resistance measurement range | 0.1 Ω to 20 MΩ |
| Temperature measurement range | from -40°C to 1000°C |
| Internal resistance DC | 10 MΩ |
| Internal resistance AC | 4.5 MΩ |
| Basic accuracy (+/-) | 0,5% |
| Type of measurement | average value |
| Voltage measurement | AC / DC |
| Current intensity measurement | DC |
| Frequency range | 40 Hz to 400 Hz |
| Power supply | battery 9V 6LF61 (included) |
| Measuring category | CAT III 600 V |
| Type of display | digital |
| Dimensions of product | 75 x 150 mm |
| Weight | 200 g |
Contents of the set
- Voltcraft VC155 universal meter
- Measuring cables
- Type K temperature sensor
- Instruction manual
- Battery 9V 6LF61
The kit includes a9V 6LF61 battery necessary to power the multimeter.
Elements included in the meter set.
