Product description: SPI FLASH Breakout - module with Flash memory W25Q64 - 64 Mb / 8 MB - Adafruit 5636
SPI FLASH Breakout from Adafruit is a module with Flash memory W25Q64 with a capacity of 64 Mb / 8 MB . The module uses the SPI interface to communicate with connected devices, it has also been equipped with a voltage level converter , thanks to which it can work with boards powered by 3.3 V and 5 V. It can be used as an additional, external memory during the implementation of projects that require storing more amount of data, e.g. images to operate the display or audio clips.
Arduino compatible product!
The manufacturer has prepared a detailed user guide that will help you get started with the module. In it you will find, among others, a connection diagram of individual pins and a sample program code - check it out!

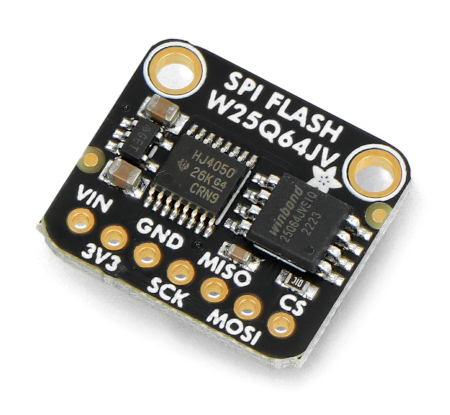

SPI FLASH Breakout - module with Flash memory W25Q64 - 64 Mb / 8 MB - Adafruit 5636.
Connection diagram of the module with the Metro board and breadboard (not included, sold separately).
Pinout description and connection diagram
The board has outputs in the form of soldering pads , to which the goldpin strip included in the set should be soldered. The module can also be connected using a contact plate and appropriate wires - without the need for soldering. Individual pins should be connected in accordance with the following relationships:
- VIN - 5V power pin
- 3V3 - 3.3V power pin
- GND - system ground
- SCK - clock line of the SPI bus
- MISO - input data line of the SPI bus
- MOSI - output data line of the SPI bus
- CS - Chip Select for SPI
Technical specification of the SPI FLASH Breakout module
- Type: memory module
- Memory Type: Flash
- Capacity: 64MB / 8MB
- Built-in chip: W25Q64
- Communication interface: SPI
- Supply voltage: 3.3V / 5V
- Board dimensions: 20.3 x 17.7 x 3.5 mm
Kit contents
- SPI FLASH Breakout - module with Flash memory W25Q64 - 64 Mb / 8 MB - 1 piece
- Goldpin strip 1x7 - raster 2.54 mm - 1 piece

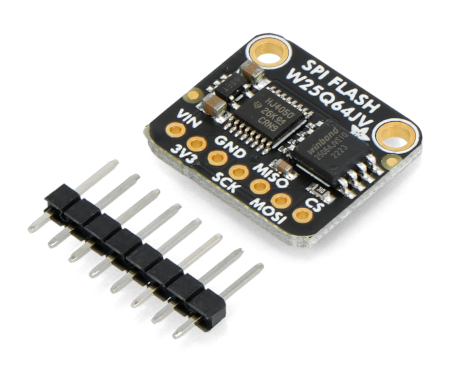

Components included in the set.
