Flash memory module - QSPI DIP - W25Q64JVSSIQ - 64 Mb / 8 MB - Adafruit 5633

Index: ADA-22387
Module with Flash memory W25Q64JVSSIQ with a capacity of 64 Mb / 8 MB from Adafruit . It uses the QSPI interface to communicate with connected devices, it can work with boards powered by 3.3 V. The compact dimensions and form of the adapter allow it to be quickly adapted to an existing prototype. The Flash memory module is used as an additional external memory for projects that require more data to be stored, e.g. images to support the display or audio clips.
Flash memory module - QSPI DIP - W25Q64JVSSIQ - 64 Mb / 8 MB - Adafruit 5633
€3.90
€3.17 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: Adafruit

Product description: Module with Flash memory - QSPI DIP - W25Q64JVSSIQ - 64 Mb / 8 MB - Adafruit 5633

Module with Flash memory W25Q64JVSSIQ with a capacity of 64 Mb / 8 MB from Adafruit . It uses the QSPI interface to communicate with connected devices, it can work with boards powered by 3.3 V. The compact dimensions and form of the adapter allow it to be quickly adapted to an existing prototype. The Flash memory module is used as an additional external memory for projects that require more data to be stored, e.g. images to support the display or audio clips.

Arduino compatible product!

The manufacturer has prepared a detailed user guide that will help you get started with the module. In it you will find, among others, a connection diagram of individual pins and a sample program code - check it out!

Module with flash memory - QSPI DIP - W25Q64JVSSIQ - 64 Mbit / 8 MB - Adafruit 5633

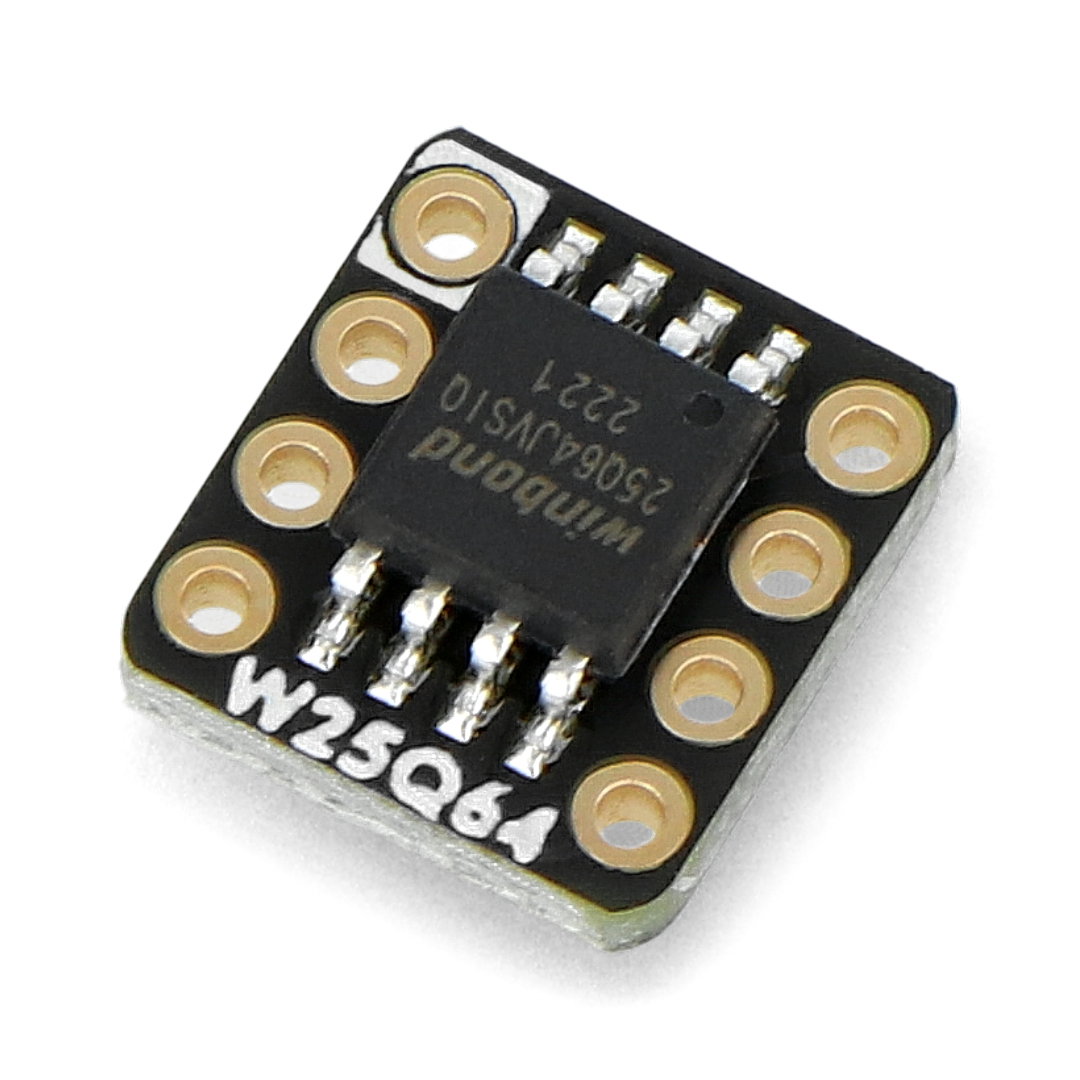

Module with Flash memory - QSPI DIP - W25Q64JVSSIQ - 64 Mb / 8 MB - Adafruit 5633.

Connection diagram of the module with the Metro board (not included, sold separately).

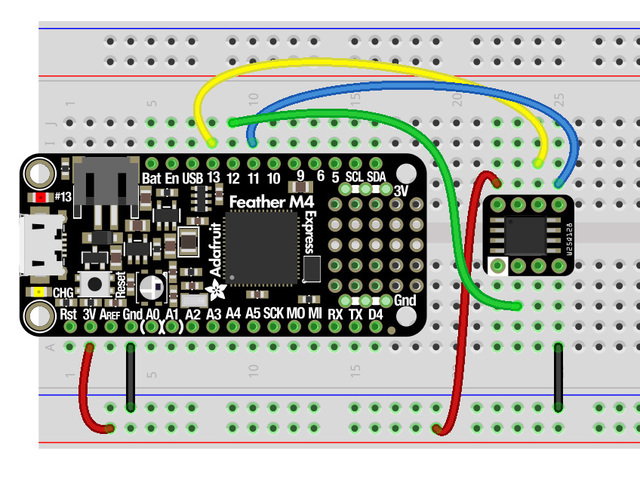

Connection diagram of the module with Feather M4 and breadboard (not included, sold separately).

Pinout description and connection diagram

The board has outputs in the form of soldering pads , to which the goldpin strip included in the set should be soldered. The module can also be connected using a contact plate and appropriate wires - without the need for soldering. Individual pins should be connected in accordance with the following relationships:

  • 3V3 - 3.3V power pin
  • G (GND) - mass of the system
  • IO0 - output data line of the SPI bus
  • IO1 - input data line of the SPI bus
  • SCK - clock line of the SPI bus
  • CS - Chip Select for SPI

Module technical specification

  • Type: memory module
  • Memory Type: Flash
  • Capacity: 64MB / 8MB
  • Built-in chip: W25Q64JVSSIQ
  • Communication interface: SPI
  • Supply voltage: 3.3V
  • Board dimensions: 11.2 x 10.2 x 3.5 mm

Kit contents

  • Module with flash memory - QSPI DIP - W25Q64JVSSIQ - 64 Mb / 8 MB - 1 piece
  • Goldpin strip 1x8 - raster 2.54 mm - 1 piece

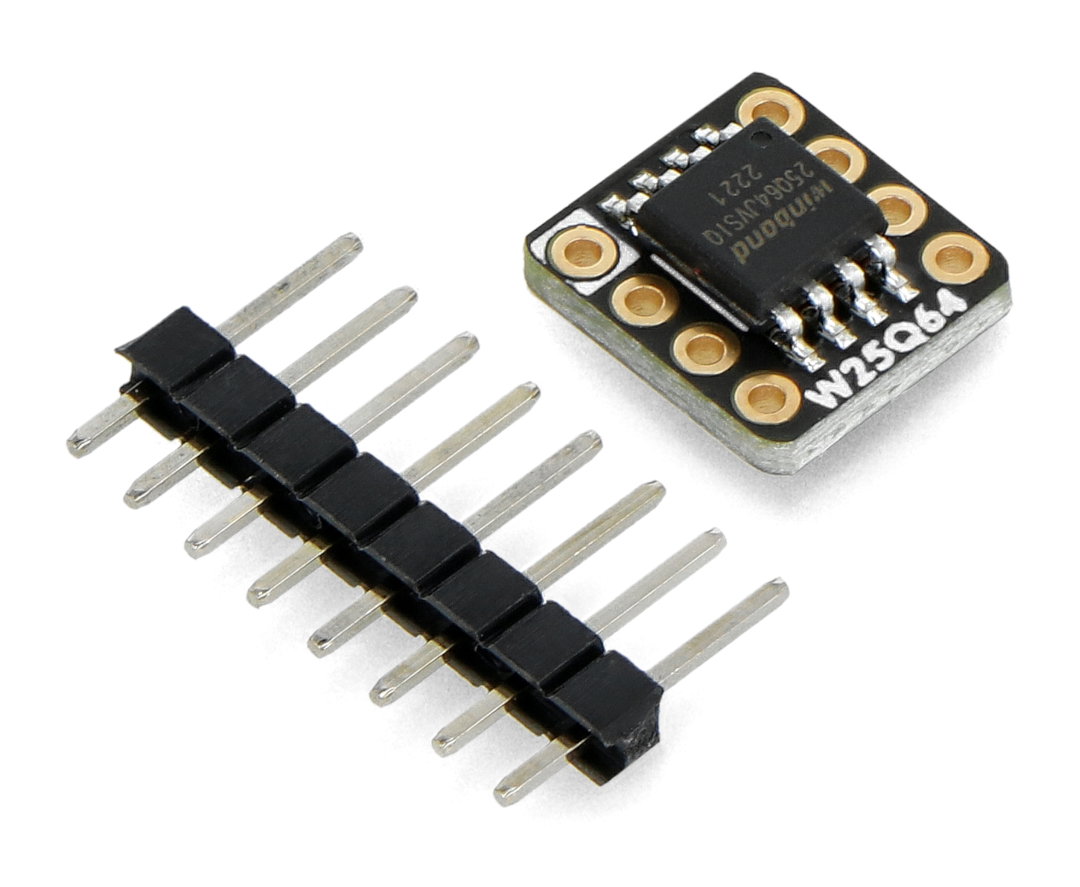

Components included in the set.

Components included in the set.

Package width 7.5 cm
Package height 11 cm
Package depth 1 cm
Package weight 0.002 kg
