Flash memory module - QSPI DIP - W25Q128JVSSIQ - 128 Mb / 16 MB - Adafruit 5634

Index: ADA-22388
A module with Flash memory W25Q128JVSSIQ manufactured by Adafruit , which allows you to extend the project with RP2040, ESP32, RT10xx and STM32 series microcontrollers with an additional memory of 128 Mb / 16 MB . It can work with boards powered by 3.3 V and uses the QSPI interface to communicate with them.
Flash memory module - QSPI DIP - W25Q128JVSSIQ - 128 Mb / 16 MB - Adafruit 5634
€4.00
€3.25 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: Adafruit
Compatibility: Arduino

Product description: Module with Flash memory - QSPI DIP - W25Q128JVSSIQ - 128 Mb / 16 MB - Adafruit 5634

A module with Flash memory W25Q128JVSSIQ produced by Adafruit , which allows you to extend the project with microcontrollers of the RP2040, ESP32, RT10xx and STM32 series with an additional memory of 128 Mb / 16 MB . It can work with boards powered by 3.3 V and uses the QSPI interface to communicate with them. Thanks to the small dimensions and form of the adapter, it can be adapted to an existing prototype. The Flash memory module is used as an additional external memory for projects that require more data to be stored, e.g. images to support the display or audio clips.

Arduino compatible product!

The manufacturer has prepared a detailed user guide that will help you get started with the module. In it you will find, among others, a connection diagram of individual pins and a sample program code - check it out!

Module with Flash memory - QSPI DIP - W25Q128JVSSIQ - 128 Mb / 16 MB - Adafruit 5634.

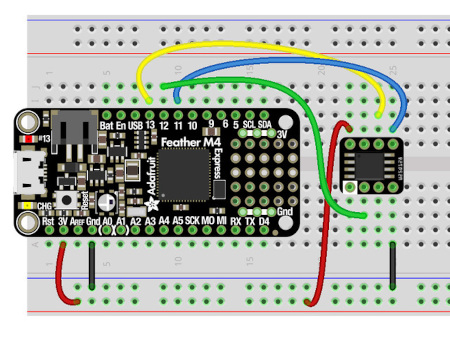

Connection diagram of the module with the Metro board (not included, sold separately).

Connection diagram of the module with Feather M4 and breadboard (not included, sold separately).

Pinout description and connection diagram

The board has outputs in the form of soldering pads , to which the goldpin strip included in the set should be soldered. The module can also be connected using a contact plate and appropriate wires - without the need for soldering. Individual pins should be connected in accordance with the following relationships:

  • 3V3 - 3.3V power pin
  • G (GND) - mass of the system
  • IO0 - output data line of the SPI bus
  • IO1 - input data line of the SPI bus
  • SCK - clock line of the SPI bus
  • CS - Chip Select for SPI

Module technical specification

  • Type: memory module
  • Memory Type: Flash
  • Capacity: 128MB / 16MB
  • Built-in chip: W25Q128JVSSIQ
  • Communication interface: QSPI
  • Supply voltage: 3.3V
  • Board dimensions: 11.2 x 10.2 x 3.5 mm

Kit contents

  • Module with flash memory - QSPI DIP - W25Q128JVSSIQ - 128 Mb / 16 MB - 1 piece
  • Goldpin strip - raster 2.54 mm - 1 piece

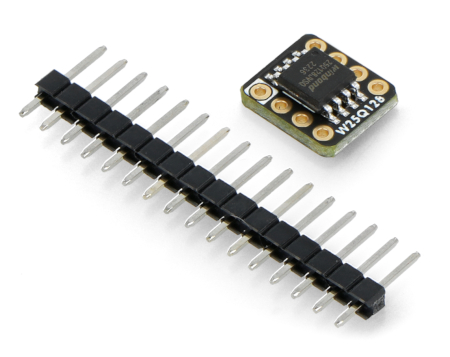

Components included in the set.

Components included in the set.

Package width 8 cm
Package height 11 cm
Package depth 1 cm
Package weight 0.003 kg
