SPI FLASH Breakout - Flash memory module W25Q128 - 128Mb / 16MB - Adafruit 5643

Index: ADA-22383
Module manufactured by Adafruit with Flash memory 128 Mb / 16 MB equipped with W25Q128 chip. It has a built-in voltage converter , so it can work with boards powered by 3.3 V and 5 V. It uses the SPI interface to communicate with connected devices.
SPI FLASH Breakout - Flash memory module W25Q128 - 128Mb / 16MB - Adafruit 5643
€6.90
€5.61 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: Adafruit
Compatibility: Arduino

Product description: SPI FLASH Breakout - module with Flash memory W25Q128 - 128 Mb / 16 MB - Adafruit 5643

Module manufactured by Adafruit with Flash memory 128 Mb / 16 MB equipped with W25Q128 chip. It has a built-in voltage converter , so it can work with boards powered by 3.3 V and 5 V. It uses the SPI interface to communicate with connected devices. It is used in projects that require the use of additional memory to store more data, for example, images to support the display or audio clips.

Arduino compatible product!

The manufacturer has prepared a detailed user guide that will help you get started with the module. In it you will find, among others, a connection diagram of individual pins and a sample program code - check it out!

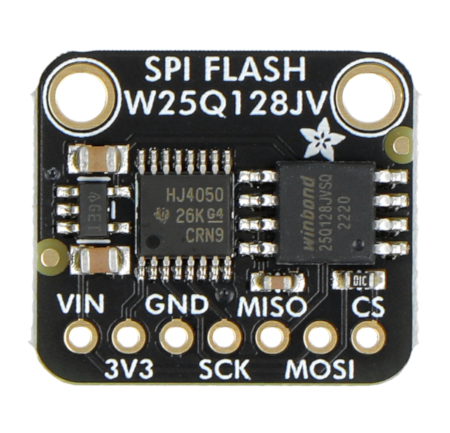

SPI FLASH Breakout - module with Flash memory W25Q128 - 128 Mb / 16 MB - Adafruit 5643.

SPI FLASH Breakout - module with Flash memory W25Q128 - 128 Mb / 16 MB - Adafruit 5643.

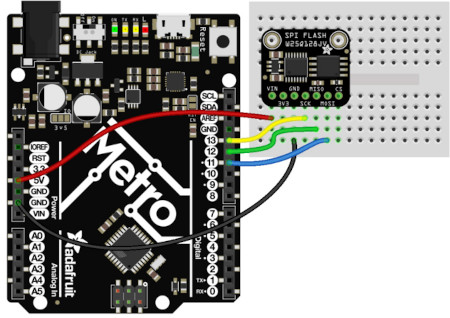

Connection diagram of the module with the Metro board (not included, sold separately).

Connection diagram of the module with the Metro board and breadboard (not included, sold separately).

Pinout description and connection diagram

The board has outputs in the form of soldering pads , to which the goldpin strip included in the set should be soldered. The module can also be connected using a contact plate and appropriate wires - without the need for soldering. Individual pins should be connected in accordance with the following relationships:

  • VIN - 5V power pin
  • 3V3 - 3.3V power pin
  • GND - system ground
  • SCK - clock line of the SPI bus
  • MISO - input data line of the SPI bus
  • MOSI - output data line of the SPI bus
  • CS - Chip Select for SPI

Technical specification of the SPI FLASH Breakout module

  • Type: memory module
  • Memory Type: Flash
  • Capacity: 128MB / 16MB
  • Built-in chip: W25Q128
  • Communication interface: SPI
  • Supply voltage: 3.3V / 5V
  • Board dimensions: 20.3 x 17.7 x 3.5 mm
  • Weight: 1.4g

Kit contents

  • SPI FLASH Breakout - module with Flash memory W25Q128 - 128 Mb / 16 MB - 1 piece
  • Goldpin strip 1x8 - raster 2.54 mm - 1 piece

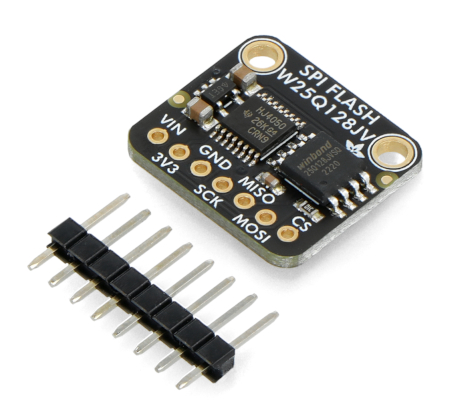

Components included in the set.

Components included in the set.

UC - Flash 16 MB
Package width 7.5 cm
Package height 8 cm
Package depth 0.5 cm
Package weight 0.003 kg
