Product description: LA10P 500 N 13 mm/sec 12 V electric actuator with potentiometer - 5 cm extension
Linear actuatorpowered by12 V with potentiometer.The maximum extension is 5 cm and the permitted load capacity is 50 kg (500 N).The actuator has an IP65 rating to protect against dust and moisture. Twolimit switchesprovide overtravel protection.

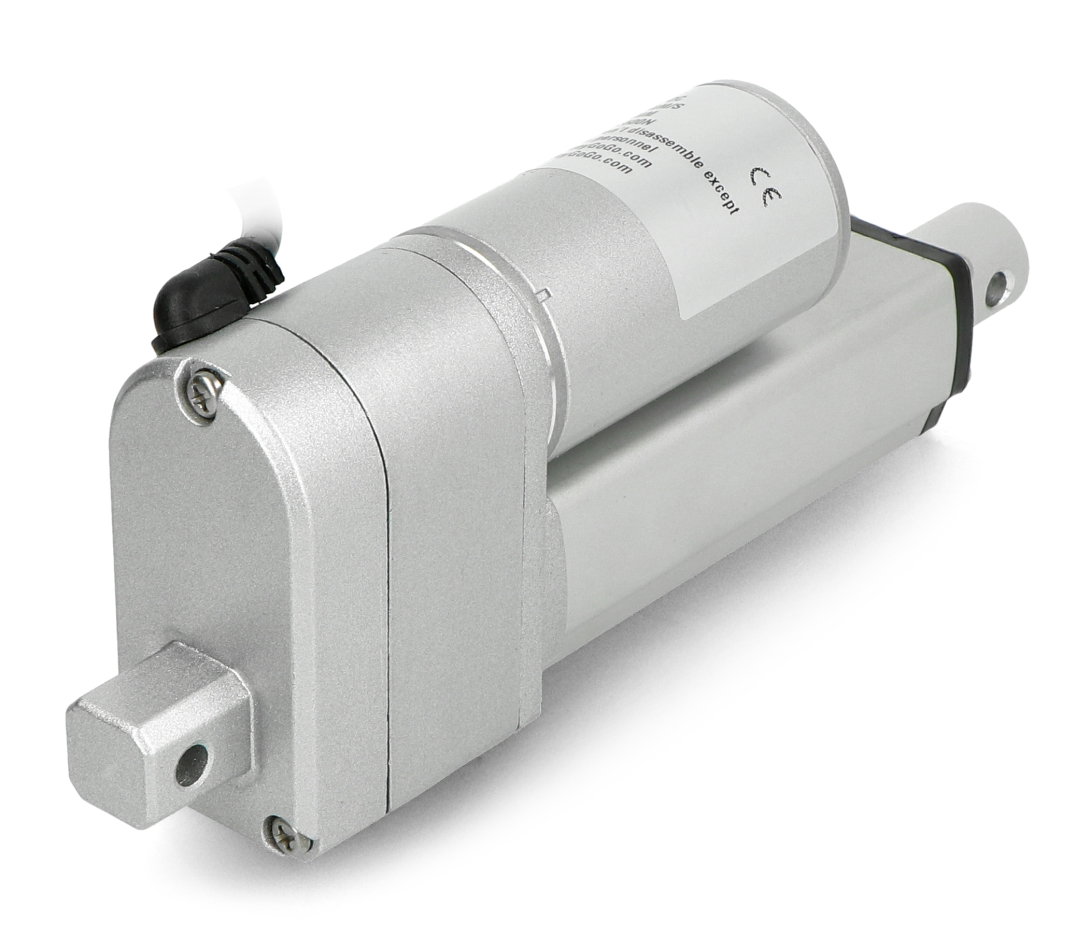

LA10P 500 N electric actuator 13 mm/sec 12 V with potentiometer - 5 cm extension.
Application of linear actuators
- Home automation elements responsible for tilting windows and doors
- Flap adjustment in motor vehicles
- Tilt adjustment of solar panels in photovoltaics
- Agricultural machinery components
- Precision industrial automation components
- Industrial valves opening regulation
|
As inDC motors,the direction is changed by reversing the polarity. |
Scheme of potentiometer outputs
The potentiometer used in the LA10P hasthree outputs, which must be connected according to the following diagram.
The outputs of the potentiometer in the LA10P actuator.
LA10P linear actuator specification 500 N
| Name | Parameter |
|---|---|
| Supply voltage | 12 V DC |
| Speed | 13 mm/s |
| Maximum power | 500 N (50 kg) |
| Duty cycle | 25% |
| Extension length | 50 mm |
| Total length in folded condition (Lmin) | 195 mm |
| Diameter | 20 mm |
| Mounting type | fixture H |
| Operating temperature | from -25°C to 65°C |
| Safeguards | limit switches |
| Leakage class | IP65 |
Dimensions of the LA10P 500 N.
