- Wheel diameter: 80mm
- Bus width: 10 mm
- Hole diameter : 3mm (D-shaped)
- Weight: 15 g
- Number of wheels included: 2
The wheels have treads so they reduce the influence of surface contamination on friction and grip.
The mounting hole is matched with the shaftsof the Pololu micro motors. Wheels also collaborate with plastic corner engines. In order to ensure connectivity with different kind of drive systems, developed were specialadapters (hub) fitted for shafts with diameter:3mm,4mm,5mm and 6mm.
The store also has wheels and tires from Pololu in other sizes.

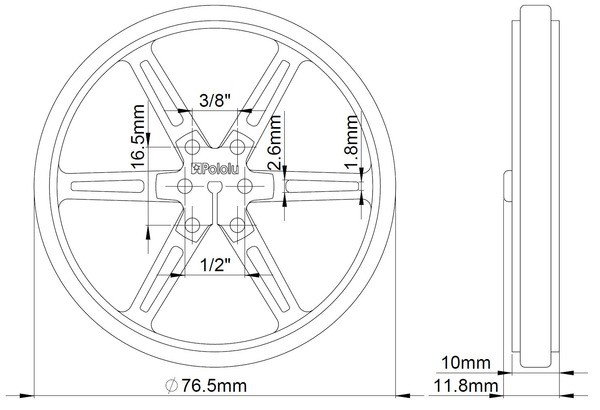

The diameter of tyre is 80mm. Width of whole is 10 mm. The mounting hole has the shape of a letter D with a diameter of 3mm. Rim dimensions are shown in the figure below.
