Arduino Giga R1 WiFi - ABX00063

Index: ARD-22660 EAN: 7630049203266
Arduino Giga R1 WiFi is designed for ambitious makers who are looking for an efficient board with wireless communication for their project. The board is based on a dual-core, 32-bit STM32H747XI microcontroller (ARM Cotex M7 480 MHz and ARM Cortex M4 240 MHz), which allows you to run MicroPython and Arduino codes simultaneously. The Murata 1DX chip is responsible for WiFi / Bluetooth wireless communication. The Arduino Giga has the same pin layout as the popular Arduino Mega and Arduino Due.
Arduino Giga R1 WiFi - ABX00063
€89.50
€72.76 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: Arduino

Product description: Arduino Giga R1 WiFi - ABX00063

Arduino Giga R1 WiFi is designed for ambitious makers who are looking for an efficient board with wireless communication for their projects. It will work with gamers, artists, composers, machine learning (Machine Learning), computer vision (Computer Vision), games, robotics and many others. The board is based on a dual-core, 32-bit STM32H747XI microcontroller (ARM Cotex M7 480 MHz and ARM Cortex M4 240 MHz), which allows you to run MicroPython and Arduino codes simultaneously. Wireless communication is possible thanks to the Murata 1DX chip, which allows WiFi / Bluetooth communication. Thanks to it, it is possible to connect the board to the Arduino IoT Cloud and remotely control and monitor the project. The connection is encrypted using the ATECC608A chip.

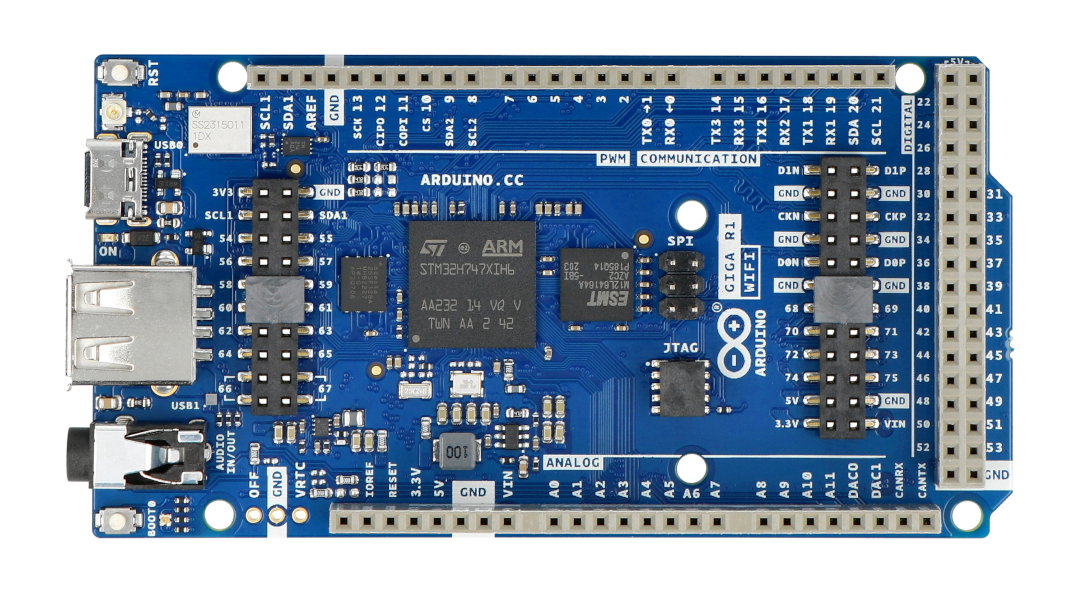

Arduino Giga R1 WiFi Arduino Giga R1 WiFi.

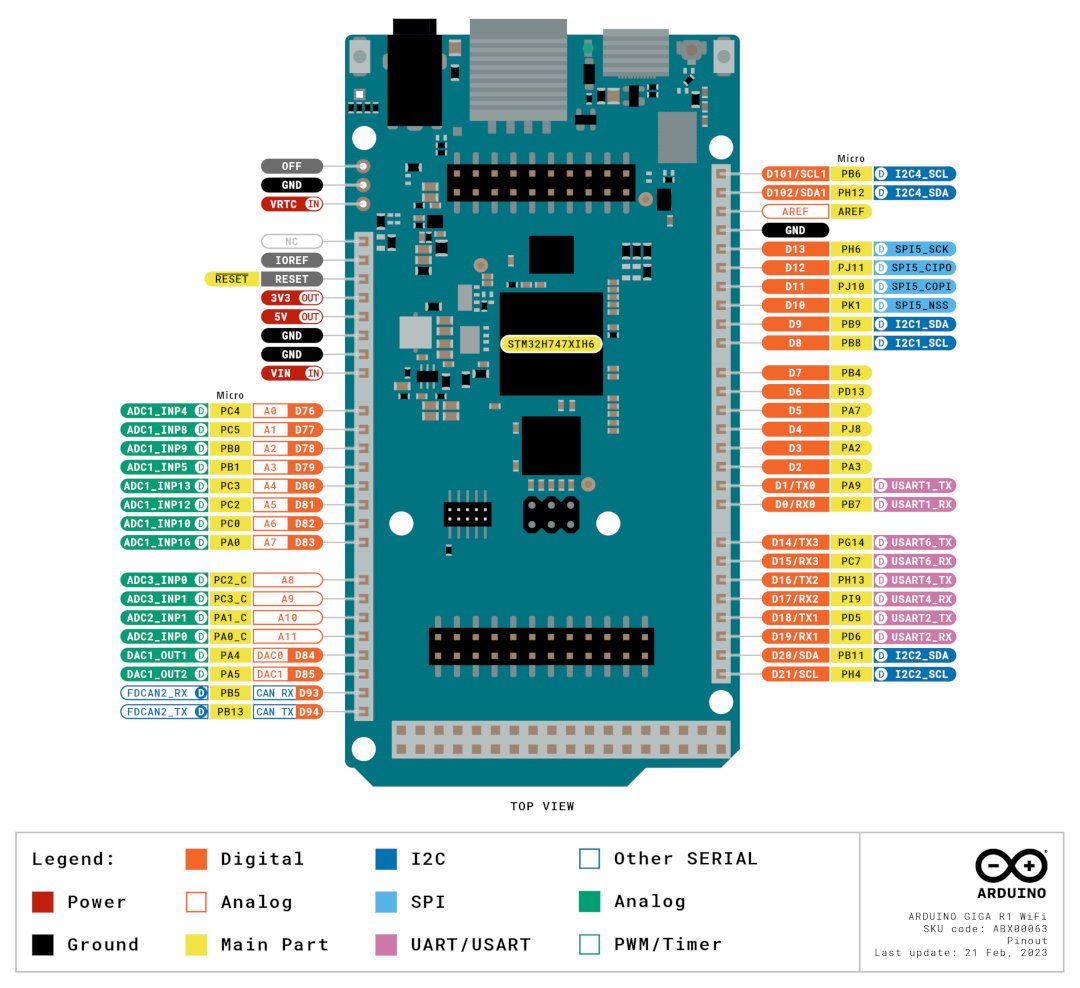

Arduino Giga pins Arduino Giga pins.

Arduino Giga pins

The Arduino Giga has the same pin layout as the popular Arduino Mega and Arduino Due . It has been equipped with 4 UART ports (hardware serial ports), 3 I2C ports, 2 SPI ports and 1 FDSCAN port. Arduino Giga WiFi is compatible with shields for Arduino Mega / Due (remember that it works with a voltage of 3.3 V!) , Several GPIOs have also been added, which gives a total of 76 pins. There is also a VRTC connector on the board for connecting the RTC battery.

Arduino Giga connectors

Giga R1 WiFi has additional connectors that will facilitate the creation of projects without additional equipment. The board is equipped with:

  • USB type A connector: for connecting USB sticks, other mass storage devices and HID devices such as a keyboard or mouse.
  • 3.5mm jack: Connected to DAC0, DAC1 and A7.
  • USB Type-C connector: for powering and programming the board, as well as for simulating an HID device such as a mouse or keyboard.
  • JTAG connector, 2 x 5 pin, pitch 1.27 mm.
  • 20-pin connector for connecting the Arducam camera.

Main features of Arduino Giga R1 WiFi

  • Cheat sheet - short documentation prepared by the manufacturer with a description of the most important functions of the board.
  • Advanced ADC/DAC - learn more about ADC/DAC features from the guide .
  • Dual-core microcontroller - the board uses a dual-core STM32H747XI microcontroller, which can be programmed separately (M4 / M7). For example, you can run MicroPython and Arduino code simultaneously and communicate via RPC.
  • Wireless communication - the board is equipped with the Murata LBEE5KL1DX-883 system for WiFi / Bluetooth communication.
  • MicroPython - The Arduino Giga R1 WiFi supports MicroPython which can be set up in minutes.
  • USB - the board is equipped with a USB type C connector for communication / power supply / programming and a USB type A connector for connecting USB devices (keyboards, mass storage).
  • Camera support - check how to connect the camera using a dedicated connector .
Arduino Giga WiFi

Arduino Giga R1 WiFi - ABX00063.

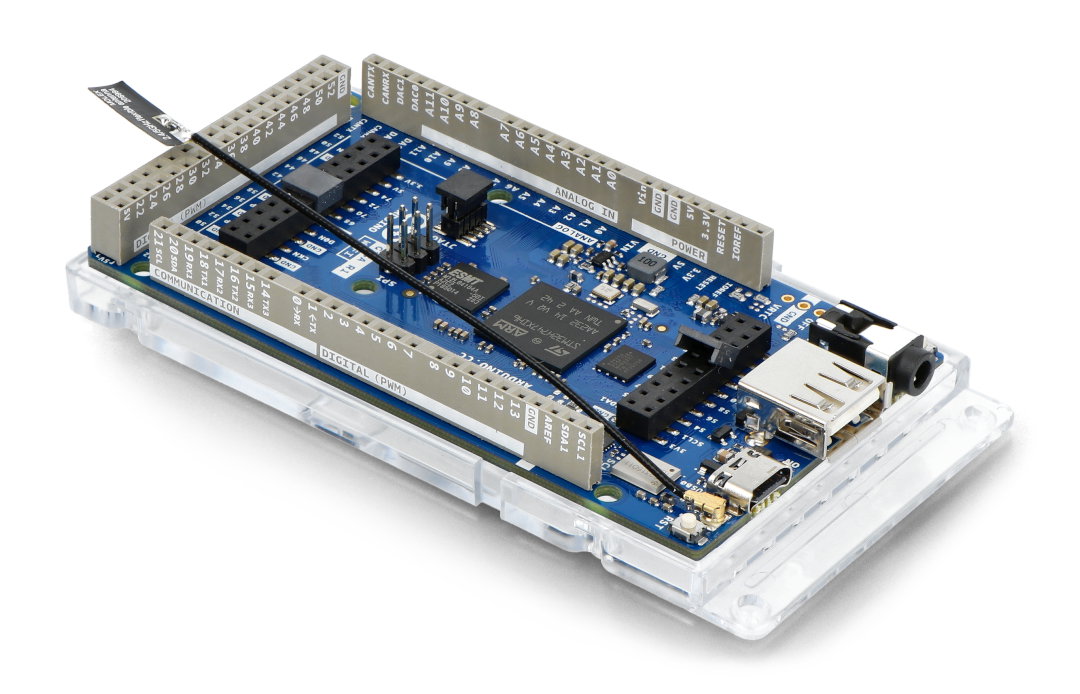

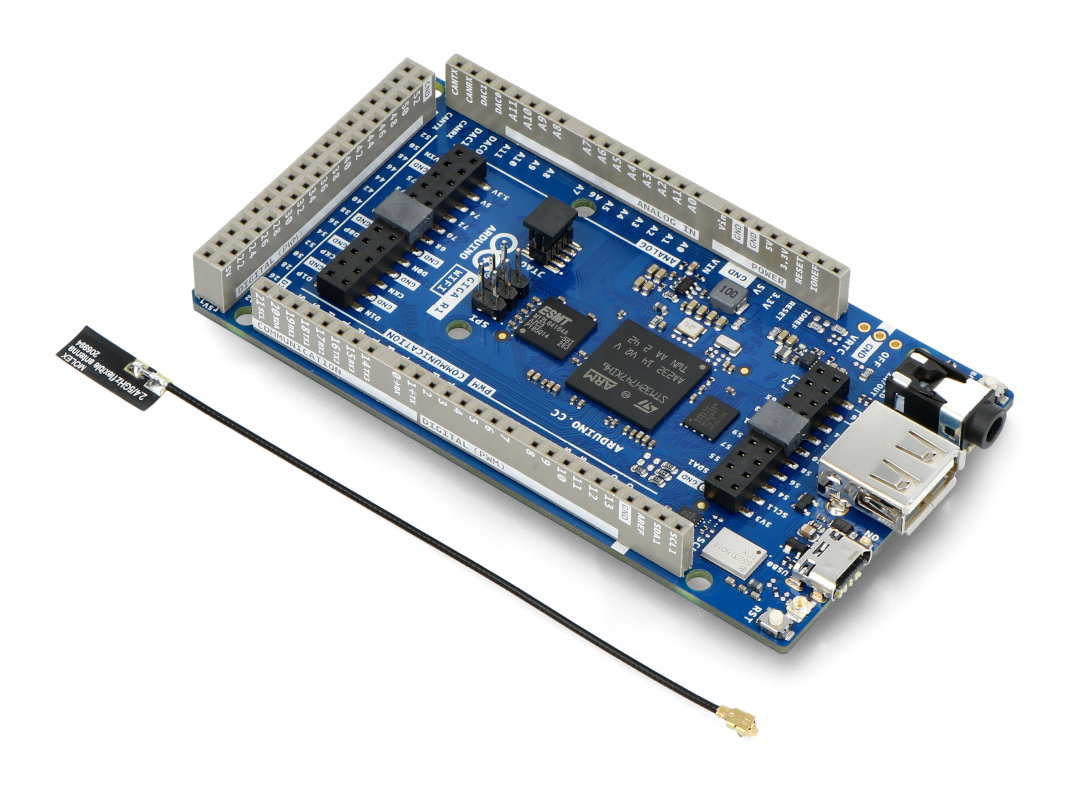

Kit contents Arduino Giga WiFi with antenna included in the kit.

Arduino Giga R1 WiFi specification

  • Microcontroller: STM32H747XI Dual Core Cortex M7 + M4 32-bit
  • Wireless communication: Murata 1DX dual WiFi 802.11 b/g/n 65 Mb/s and Bluetooth
  • Protection chip: ATECC608A-MAHDA-T
  • USB:
    • USB type C: programming / HID
    • USB Type A: Host (enabled with PA_15)
  • Leads:
    • digital inputs / outputs: 75
    • analog pins: 12
    • DAC: 2 (DAC0 / DAC1)
    • PWM pins: 12
    • others: VRT and OFF
  • Interfaces:
    • UART: 4
    • I2C: 3
    • SPI: 2
    • CAN: yes (requires external transceiver)
  • Connectors:
    • camera: I2C + D54-D64
    • display: D1N, D0N, D1P, D0P, CKN, CKP + D68-D75
    • sound: DAC0, DAC1, A7
  • Power:
    • operating voltage: 3.3V
    • input voltage (VIN): 6 V to 24 V
    • current capacity of I / O pins: 8 mA
  • Timing:
    • Cortex M7: 480MHz
    • Cortex M4: 240MHz
  • Flash memory: 2MB
  • RAM: 1 MB
  • Dimensions: 101 x 53mm

UC - Microcontroller STM32H747XI
UC - Core Cortex M7+M4
UC - Flash 2048 kB
UC - RAM 1024 kB
UC - core 2. Dual Core
UC - Digital pins 76
UC - analog in 12
UC - freq 240 + 480 MHz
UC - A/C Tak
UC - PWM 12
UC - WiFi yes
UC - USB 1x USB
UC - Bluetooth yes
UC - I2C yes
UC - UART yes
UC - Connector USB typ C
UC - SPI interface yes
UC - Camera interface yes
Package width 6 cm
Package height 12 cm
Package depth 2.5 cm
Package weight 0.065 kg

Krzysztof Zajączkowski

07/04/23

Question: Arduino Giga R1 WiFi - ABX00063 Can this board work properly with solid state SSR relays? I have an Arduino Mega 2560 and would like to replace it with this module but I don't think 3.3 volts is enough to switch these relays. Alternatively do you have any module for mega 2560 ready to plug in without any soldering
Answer: SSR relays work with voltages from 3 V, so there should be no problem with control, using the Arduino Giga.
