Product description: reCamera 2002 - 8 GB - OV5647 5 MPx camera - AI-Vision - Seeedstudio 102991894
reCamera 2002 with 8GB eMMC is a small but powerful AI camera that combines computational performance with expandability. Equipped with a RISC-V processor and offering AI performance at 1 TOPS , it can perform advanced computer vision tasks such as detecting up to 80 object classes simultaneously . With support for various sensors (e.g. global shutter, thermal), the camera is versatile and suitable for many applications. It offers a range of interfaces such as 2 programmable I/O, USB Type-C and Ethernet , allowing easy integration with a variety of systems. The camera supports Node-RED , making it easy to set up and use without having to write code. Ideal for education, robotics, or industrial applications. Powered by a USB Type-C port with a voltage of 5V / 1A . The camera's dimensions are only 40 x 40 x 36.5 mm , making it an ideal solution for projects requiring a small size.

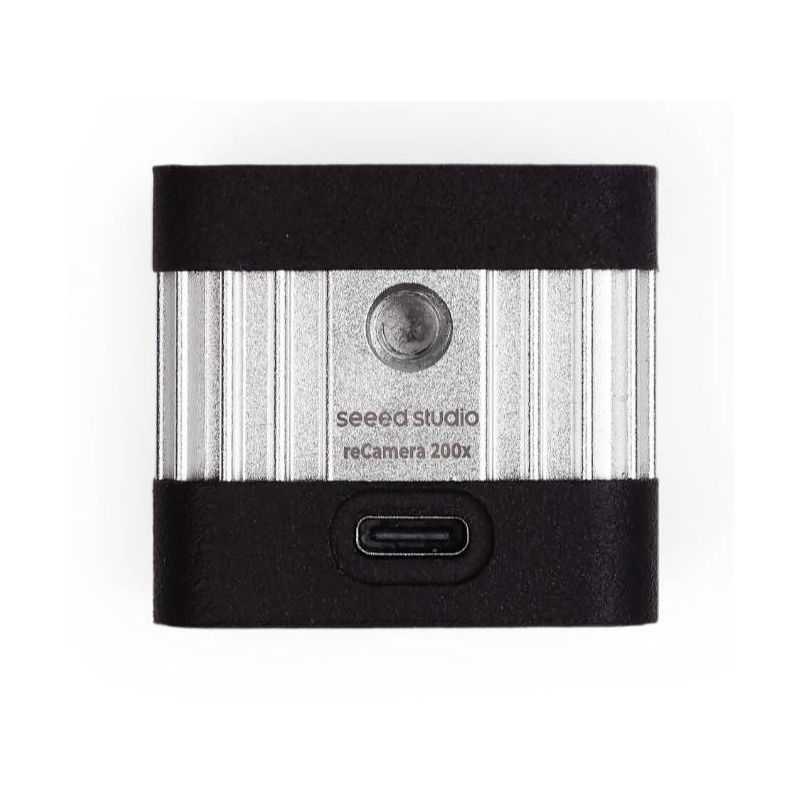

reCamera 2002 - 8 GB - OV5647 5 MPx camera - AI-Vision - Seeedstudio 102991894.
The camera is powered by a USB Type-C port.
Main camera features
- AI Performance 1 TOPS (int8) : enables advanced detection and real-time video analysis, supporting up to 80 object classes simultaneously
- Modular design : supports various sensors such as global shutter, thermal, and night vision sensors, which increases the versatility of the device
- Easy AI setup : Node-RED for intuitive setup and integration of AI models without the need for programming
- Versatile connectivity options : Ethernet and USB Type-C ports enable easy integration with various systems, and a TF card slot with up to 2TB capacity allows convenient storage of large data sets, videos, and AI model files
- Compact dimensions : the camera measures only 40 x 40 x 36.5 mm, making it ideal for applications with limited space
Practical applications
reCamera 2002 is perfect for education, robotics and industrial applications. Thanks to its compact design, it can be used in robots, drones or monitoring systems . In educational applications, it allows learning AI programming and computer vision, and in robotics it allows intelligent control of robot arms or gimbals. In industry, reCamera can be used for video analysis, object recognition and real-time image capture. With features such as object detection, motion analysis and object classification, reCamera is becoming an indispensable tool in many modern technological applications.
Using the intuitive Node-RED platform, you can easily adapt the camera to your needs.
The camera has a microSD card slot.
reCamera 2002 Software
reCamera 2002 runs on open-source software that supports Node-RED , which enables easy setup and AI integration without the need for coding . With built-in support for popular frameworks like TensorFlow Lite and Pytorch , you can quickly load and run AI models for object detection, face recognition, gesture analysis, and more. There’s also the option of remote access to the camera via SSH , making it easy to manage the device and develop remote applications. With these features, reCamera becomes a versatile tool for anyone looking to use computer vision in their projects.
| Technical specifications and comparison of reCamera 2002 and reCamera 2002w | ||
|---|---|---|
| Model: | reCamera2002 | reCamera2002w |
| AI Performance: | 1 TOPS at Int8 | 1 TOPS at Int8 |
| Built-in system: | SG2002 | SG2002 |
| Processor: | C906 clocked at 1 GHz + C906 clocked at 700 MHz | C906 clocked at 1 GHz + C906 clocked at 700 MHz |
| Microcontroller: | 8051 with 8kB SRAM | 8051 with 8kB SRAM |
| RAM: | 256MB | 256MB |
| Video processing: | 5MPx at 30fps | 5MPx at 30fps |
| Camera sensor: | OV5647 | OV5647 |
| Built-in eMMC memory: | 8GB | 8GB or 64GB |
| TF card slot: | up to 2 TB, not included | up to 2 TB, not included |
| Interfaces and I/O: | Ethernet: 100 Mbps Wi-Fi: none Bluetooth: none USB: USB Type-C (2.0) Buttons: Reset, Boot | Ethernet: 100 Mbps WiFi: 2.4G / 5G, Bluetooth: BT4.2/5.0 USB: USB Type-C (2.0) Buttons: Reset, Boot |
| Illuminating light: | 0.3 W white light | 0.3 W white light |
| LED indicators: | 1 power indicator, 2 programmable inputs/outputs | 1 power indicator, 2 programmable inputs/outputs |
| Microphone: | Built-in | Built-in |
| Loudspeaker: | External | External |
| Power supply: | 5V/1A | 5V/1A |
| Dimensions: | 40x40x36.5mm | 40x40x36.5mm |
