NB-IoT Expansion Shield SIM7000A - shield for Arduino - DFRobot DFR0763

Index: DFR-19195 EAN: 5904422361631
The SIM7000A overlay is a multi-band LTE-FDD module in an SMT package, supporting LTE CAT-M1(eMTC) data transmission up to 375 kbps. It can be expanded via UART, USB 2.0, GPIO interfaces , etc. It provides simple component integration and is compatible with SIM900 and SIM800F. This module is ideal for M2M applications such as metering, telematics, asset tracking, remote monitoring, E-health or mobile mail terminals.
€52.58
€42.75 tax excl.

Available
(Check quantity)
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: DFRobot
Compatibility: Arduino

Product description: NB-IoT Expansion Shield SIM7000A overlay for Arduino - DFRobot DFR0763

The SIM7000Aoverlay is a multi-bandLTE-FDD modulein an SMT package, supporting LTE CAT-M1(eMTC) data transmission up to375 kbps. It can be expanded via UART, USB 2.0, GPIO interfaces, etc. It provides simple component integration and is compatible with SIM900 and SIM800F. This module is ideal for M2M applications such as metering, telematics, asset tracking, remote monitoring, E-health or mobile mail terminals. It allows to make voice calls or send SMS messages. On the SIM7000A board there are, among others, aSIM cardconnector and a u.FL socket for mounting an externalantenna. NB-IoT is a new field of the Internet of Things, which supports connection to a mobile network over a WAN. In addition,the overlayhas a BME280 environmental sensor.

Połączenie modułu SIM7000A z kontrolerem. Płytkę Arduino należy kupić osobno.

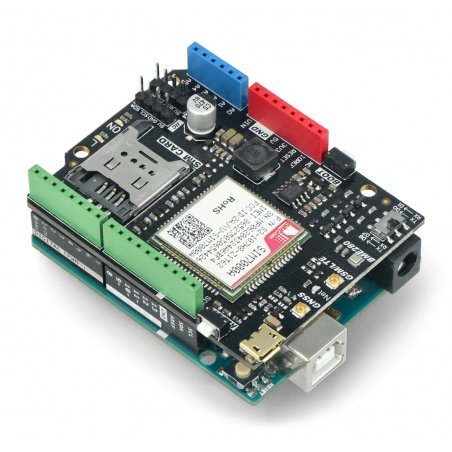

Connecting the SIM7000A module to the controller. Arduino board must be purchased separately.

Product compatible withArduino

The manufacturer provides a detaileduser guidethat includes, among other things,sample program code.

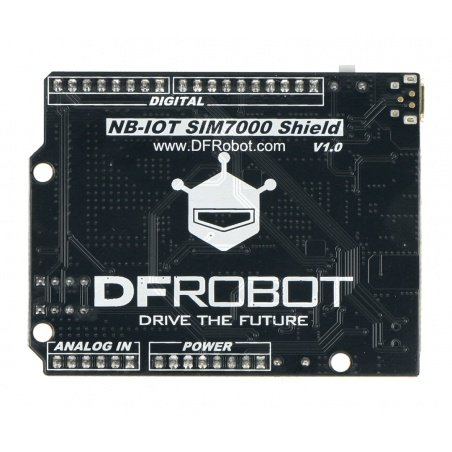

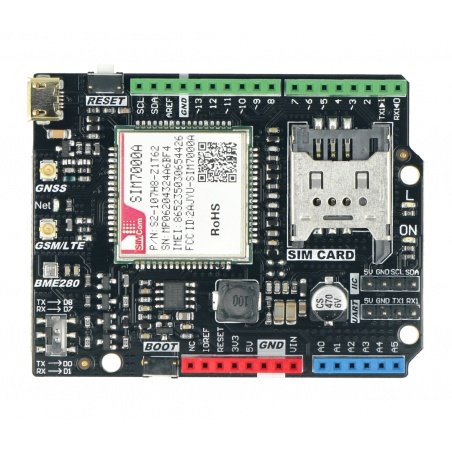

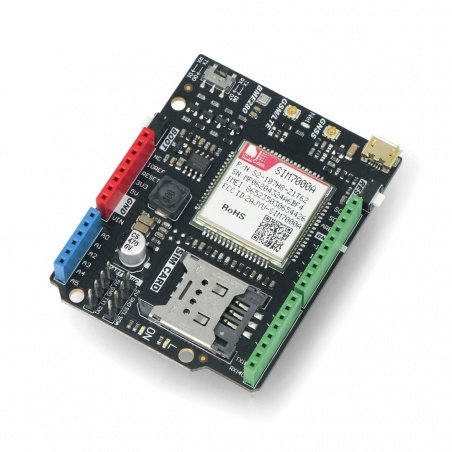

NB-IoT Expansion Shield SIM7000A

NB-IoT Expansion Shield SIM7000A.

Technical specification SIM7000

  • Operating voltage: 5 V -NOTE: The module draws a large amount of current immediately when plugged in. An external power supply is required.
  • Supply voltage: 7 V to 12 V (recommended); VIN range: 6 V to 20 V
  • SIM card and NB-IoT card support -NOTE: Make sure that the frequency range of the SIM card used is included in the supported frequency range
  • Communication Module SIM7000A
  • Four-band FDD-LTE: B2 / B4 / B12 / B13
  • Cat-M: B2 / B4 / B12 / B13
  • Cat-NB: B2 / B4 / B12 / B13
  • Module controlled by AT commands
  • Operating temperature: from -40℃ to + 85℃
  • GNSS (GPS, GLONASS, BeiDou, Compass, Galileo, QZSS)
  • Software update via USB 2.0
  • Dimensions: 67 x 54 mm

Environmental Sensor Technical Specification

  • Type: environmental sensor
  • Chip: BME280
  • Temperature measurement
    • measuring range: from -40°C to 85°C
    • resolution: 0.1°C
    • accuracy: ± 0.5°C
  • Humidity measurement:
    • measuring range: from 0% to 100% RH
    • resolution 0.1% RH
    • accuracy: ± 2% RH
    • sampling time 1 s
  • Pressure measurement
    • measuring range: from 300 hPa to 1100 hPa
Zestaw zawiera także zewnętrzną antenę.

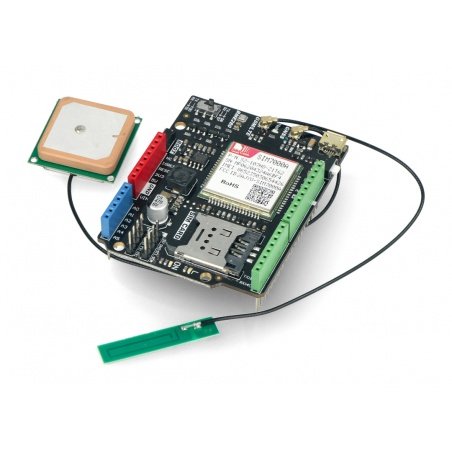

The set also includes an external antenna.
