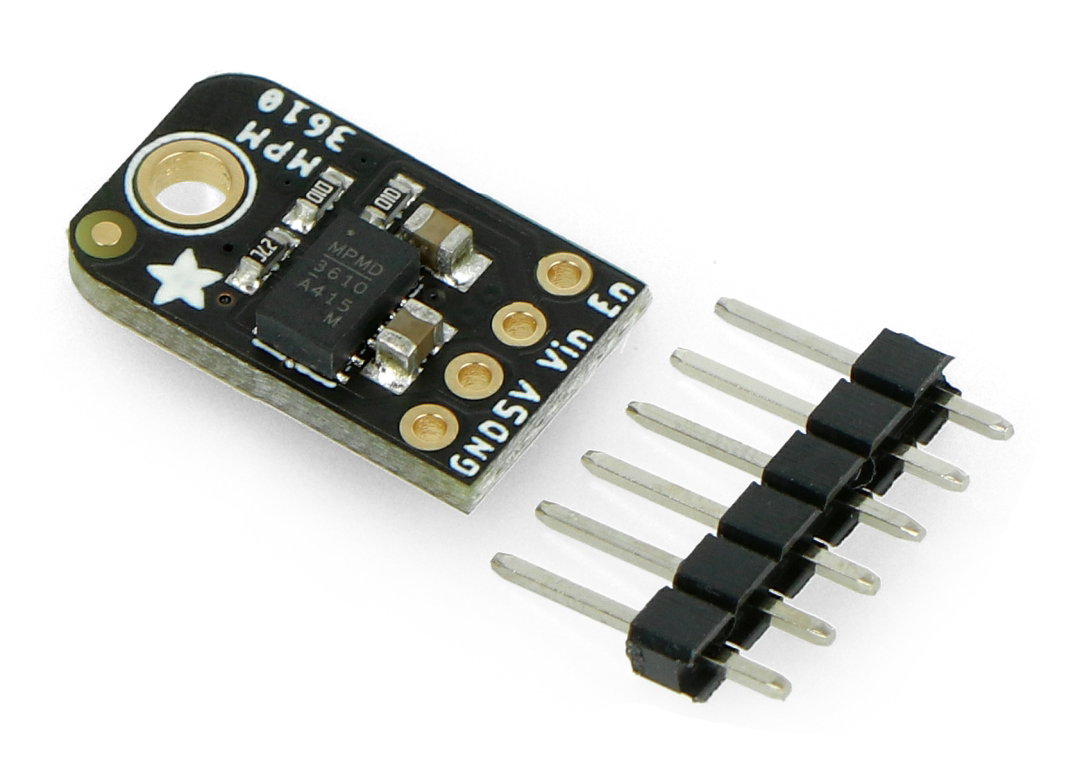

MPM3610 - Step-Down Voltage Regulator 6V-21V / 1,2A - Adafruit 4739
Step-down converter based on MPM3610 chip. Input voltage range is from 6 V to 21 V, the output voltage is 5 V and the current capacity is 1.2 A. The module operates at a constant frequency of 2 MHz during PWM mode. It operates at a constant frequency of 2 MHz during PWM mode. It is designed for use in circuits that should be supplied with 5 V from the battery or power supply. Thanks to its application the user can achieve much higher efficiency of the project.
We could not load the price.
The promotional price does not combine with quantity discounts.
MPM3610 - 6V-21V / 1,2A step-down converter - Adafruit 4739.
Step-down converterbased onMPM3610chip. Input voltage range is 6 V to 21 V, the output voltage is5 Vand thecurrent capacity is1.2 A. The module operates at a constant frequency of2 Mhzduring PWM mode. It operates at a constant frequency of 2 Mhz during PWM mode. It is dedicated for use in circuits that should be supplied with 5 V from thebatteryor power supply. Thanks to its application the user can achieve muchhigher efficiency ofthe project.
Botland is an official distributor of Adafruit electronics. These dependable American solutions cover sensors, controllers, Arduino shields, educational systems, smart building and a wide range of accessories. The Botland range holds original Adafruit products only.
Technical specifications of the Adafruit MPM3610 step-down converter
- Inverter system: MPM3610
- Input voltage range: 6 V to 21 V
- Output voltage: 5 V
- Current intensity: up to 1.2 A
- Operating frequency (PWM mode): 2 MHz
The kit includes goldpin connectors, dedicated to connect the step-down converter to the main module or prototype board.
Set contents
- MPM3610 step-down converter module
- Goldpin raster connectors 2.54 mm
Useful links
| Name | Value |
|---|---|
| Voltage to | 6.0 V |
| Voltage from | 21.0 V |
| Current | 1.2 A |
| Stabilizer - Type2 | switching |
| Stabilizer - Type | step-down |
| Width | 7.5 cm |
| Height | 0.5 cm |
| Depth | 11 cm |
| Weight | 0.002 kg |
