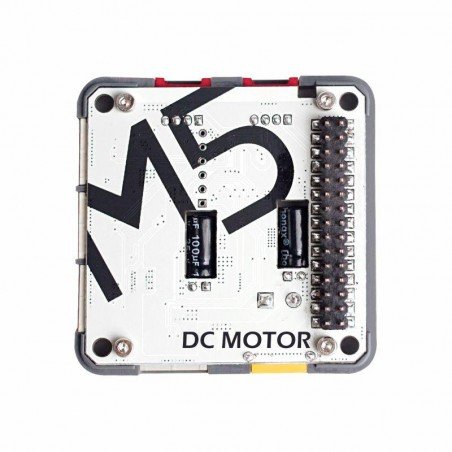

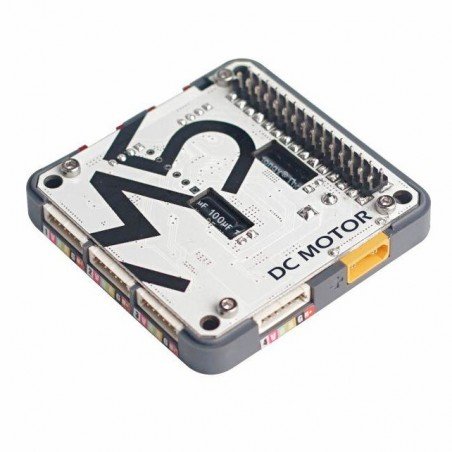

M5Stack Core DC Motor - DC motor controller with 4-channel encoder

Index: MSS-18009 EAN: 6972934170453

Extension module for M5Stack series development modules. 4-channel DC motor controller based on two systems: MEGA328 and L293DD. It has a DC power input, which can be used to deliver more power to the circuit. Thanks to built-in M-Bus connectors, the M5Stack Core development module is powered automatically via a DC connector. The motor controller module allows for trouble-free and fast control of RJ12 encoder motors, including the Lego ev3 motor.

€16.02
€13.02 tax excl.

Available, 24h shipping!
(Check quantity)
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: M5Stack
Compatibility: M5Stack Core

Description: M5Stack Core DC Motor - DC motor controller with 4-channel encoder

Extension module forM5Stackseries development modules. 4-channel DCmotor controllerbased on two systems:MEGA328andL293DD. It has a DC power input, which can be used to deliver more power to the circuit. Thanks to built-inM-Busconnectors, the power supply to the development module, e.g.M5Stack Core, is provided automatically via the DC connector. The motor controller module allows fortrouble-freeandfastcontrol of an encoder motor with RJ12 interface, includingthe Lego ev3 motor.

Sterownik silnika firmy M5Stack.

M5Stack motor controller.

Zestaw zawiera moduł sterownika, przewód połączeniowy oraz adapter DC.

The kit includes the controller module, connection cable and DC adapter.

Technical specifications

  • The engine controller: 4-channel
  • Power input: 6 V to 12 V DC
  • DC connector type: XT30 (female)
  • Additional connector: M-Bus
  • Communication interface: I2C / Grove
  • Interface address: 0x56
  • PUSH-PULL controller chip: L293DD
  • Programming platform: Arduino, UlFlow

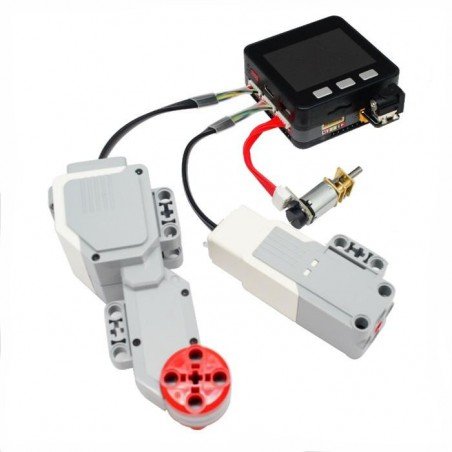

  • Module compatible with the Lego ev3 motor
  • Dimensions: 54 x 54 x 12 mm
  • Weight: 17 g

Set contents

  • M5Stack motor controller module
  • Motor connection cable - 1 x 10 cm
  • DC adapter
Voltage to 6.0 V
Voltage from 12.0 V
Channels 4
UC - I2C yes
