Fermion 8421 vertical encoder module - 16 positions - DFRobot DFR0721

Index: DFR-19390 EAN: 5903351245500
Vertical encoder 8421 manufactured by DFRobot. It has 16 possible positions from 0 to F. Data from the Fermion 8421 sensor are read out via digital outputs that represent consecutive bits of the 8421 code (BCD). Unlike a potentiometer, the encoder does not need any additional memory, reference point or continuous counting function to work properly. The position can be read out at any time.
Fermion 8421 vertical encoder module - 16 positions - DFRobot DFR0721
€4.88
€3.97 tax excl.
Available
Check quantity
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: DFRobot
Compatibility: Arduino

Product description: Fermion 8421 vertical encoder module - 16-position - DFRobot DFR0721

8421verticalencodermodule manufactured by DFRobot. It has16possible positionsfrom 0 to F. Data from the Fermion 8421 sensor is read viadigitaloutputs that represent consecutive bits of the 8421 code (BCD). Unlike apotentiometer, the encoder does not need any additionalmemory, reference point or continuous counting function to work properly. The position can be read outat any time. Encoder is also characterized byincreased resistance to interferenceand reliability of transmitted data. The product finds versatile use in widely understood industrial systems, designed to control the status of individual devices.

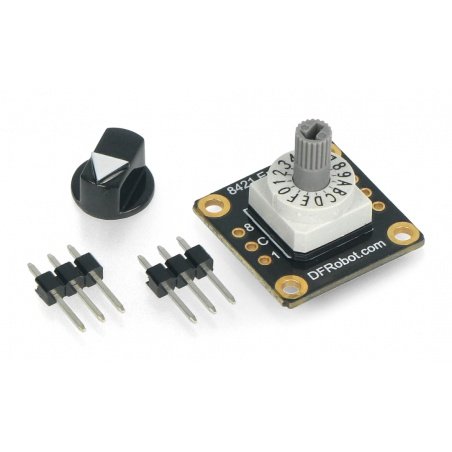

Zawartość zestawu z enkoderem od DFRobot.

The contents of the kit with an encoder from DFRobot.

The product is compatible with Arduino

A detaileduser guideis available on the manufacturer's website, which makes it easy to get started with the module. It includes connection instructions, sample program code and a truth table.

Schemat połączenia enkodera z płytą DFRduino, będącej odpowiednikiem popularnego Arduino.

Scheme of connecting the encoder toDFRduinoboard, which is equivalent to popular Arduino. The board is not included in the kit, you can buy it separately in our shop.

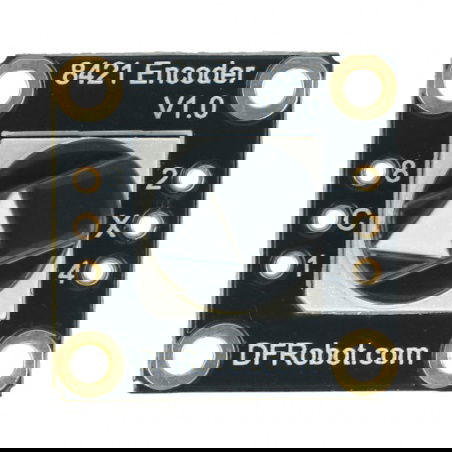

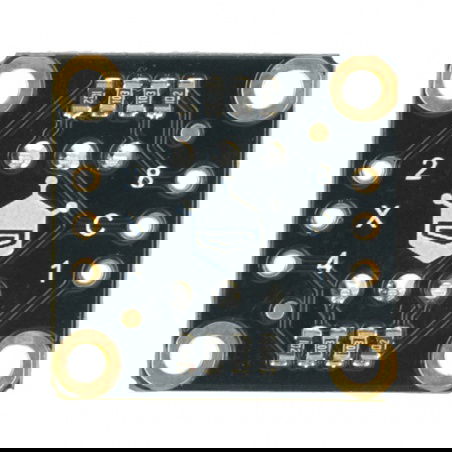

Pinout description

  • 8 - pin 8421 BCD of the port number 8
  • 4 - pin 8421 BCD of the port number 4
  • 2 - pin 8421 BCD of port number 2
  • 1 - pin 8421 BCD of port number 1
  • C - Common port, to be connected to VCC power supply
  • X - commond port, for connecting to GND

Set contents

  • Fermion 8421 vertical encoder module
  • Connector goldpin 1x3 aster 2,54 mm - 2 pcs.

In our assortment you can find also otherencoders. We encourage you to familiarize with the offer.

Technical specification of the encoder

  • Type: vertical encoder
  • Operating parameters: 150 mA / 42 V
  • BCD 8421 coding: 16 positions
  • Position designation: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, A, B, C, D, E, F
  • Lifetime: 10000 moves
  • Operating temperature: from -40°C to 85°C
  • Module dimensions: 19 x 19 mm
    • Mounting holes diameter: 2 mm
    • spacing of mounting holes: 15 x 15 mm

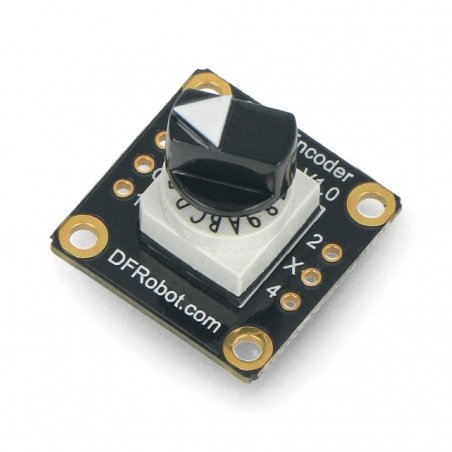

Fermion 8421 - moduł z enkoderem pionowym.

Fermion 8421 - module with vertical encoder.
