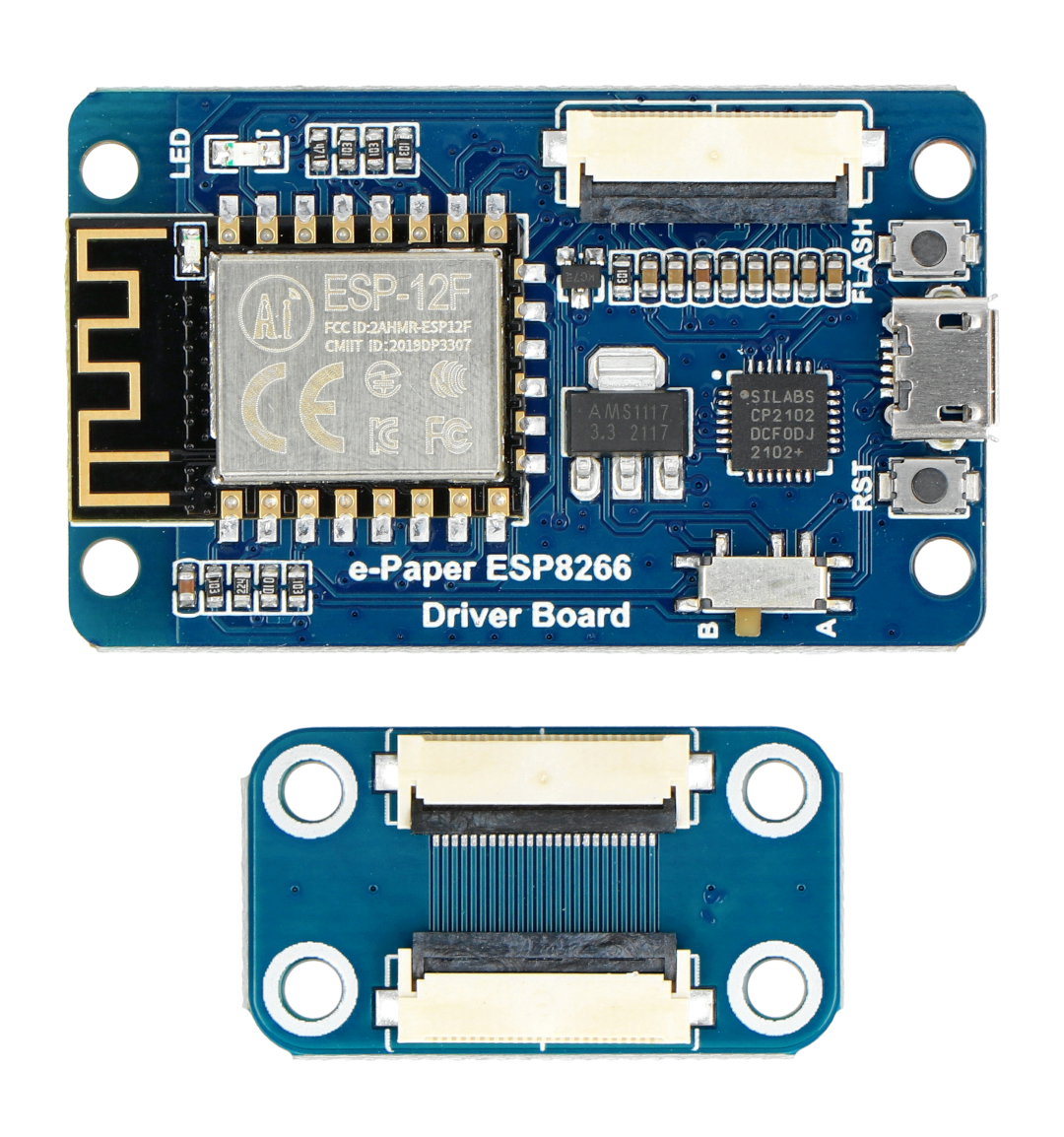

WiFi module ESP8266 with an e-paper screen connector - compatible with Arduino - Waveshare 14138

Index: WSR-11924 EAN: 5904422318222
4.5
(3)
Ask a question

Universal board for e-paper displays with built-in wi-fi ESP8266 module. Board compatible with Arduino. The supply voltage is 5 V, it has the SPI 3-wire and 4-wire interface. It supports popular image formats.

WiFi module ESP8266 with an e-paper screen connector - compatible with Arduino - Waveshare 14138
€13.50
€10.98 tax excl.
Check quantity
Available
Shipping in 24 hours
Free shipping
30 days to return
PayPal payment
Check quantity
Manufacturer: Waveshare

Description

Universal board for e-paper displays with built-in wi-fi ESP8266 module. Board compatible with Arduino. The supply voltage is 5 V, it has the SPI 3-wire and 4-wire interface. It supports popular image formats.

The set also includes an adapter with a 24-pin ribbon for displays.

Pins

The module has two 30-pin connectors with the popular interfaces. Detailed description of the pins can be found inthe user guide.

Moduł WiFi ESP8266 ze złączem do ekranu e-paper

Specification

  • Supply voltage: 5 V
  • System: ESP8266
  • The wi-fi standard: 802.11 b/g/n
  • Interface: SPI
  • Size: 29,57 x 48,26 mm
  • Mounting hole: 2.9 mm

UC - Microcontroller ESP-8266
Test 4
Package width 8 cm
Package height 1.4 cm
Package depth 12 cm
Package weight 0.015 kg
