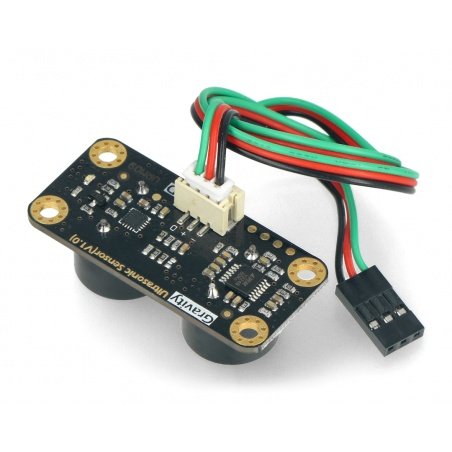

Product description: Gravity - TRIG URM09 ultrasonic distance sensor - DFRobot SEN0388

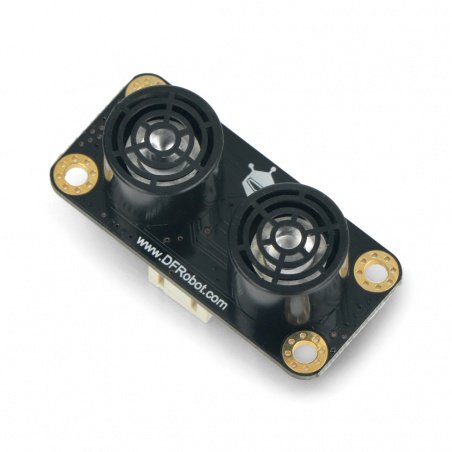

Ultrasonicdistance measuringmodule produced byDFRobotwith integratedURM09chip. It detects objects at a distancefrom 2 cm to 500 cm. The distance is determined with a resolution of1 cmwith an accuracy of1%. The sensor can be powered from3.3 V to 5.5 V DC. Small size,high measurement accuracy, Plug&Play support and wide measurement range make the module widely applicable in projects whose mission is to avoid obstacles, warn about crossing the safety line or applications such as a car reversing signal or a smart doorbell.
Compatible with Arduino and Raspberry Pi
The manufacturer has prepared a detaileduser guidewhich includes sample program code for Arduino IDE environment andURM09_Trig libraryfor MakeCode graphic editor.
Example diagram of sensor connection using DFRobot board, Arduino equivalent. The board is not a part of kit, you can buy it separately in our shop.

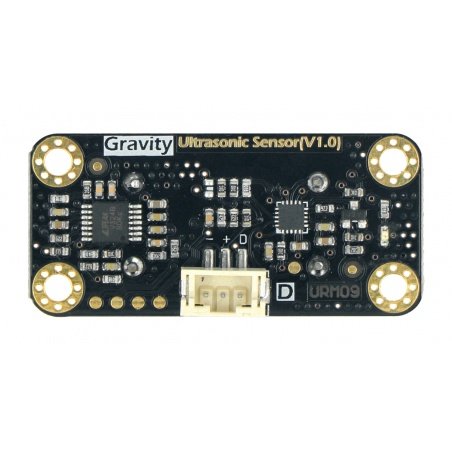

Pinout description and example connection diagram
The module is equipped with a connector compatible withGravitystandard. Thanks to it, it's possible toquicklyandconvenientlyconnect the sensor with the controller board -without additional soldering. Connect thesensorwith the microcontroller module according to the description below, using the included cable:
- "-" - GND - system ground
- "+" - VCC - power supply in range from 3,3 V to 5,5 V
- D - IO digital output (TRIG / ECHO multiplexing)

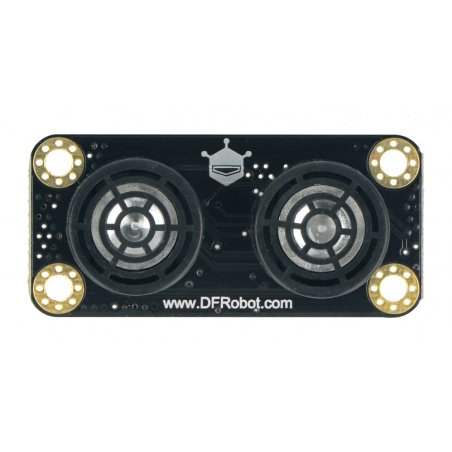

Technical specifications of the distance sensor from DFRobot
- Compatible with Arduino and Raspberry Pi controllers
- Module: ultrasonic distance sensor
- Embedded chip: URM09
- Connector standard: Gravity
- Input voltage range: 3.3 V to 5.5 V
- Maximum operating current (instantaneous): < 20 mA
- Distance measuring range: from 2 cm to 500 cm
- Resolution of measurement: 1 cm
- Measurement accuracy: 1%
- Acoustic frequency: 40 ± 2 kHz
- Maximum frequency range: up to 25 Hz
- Plug&Play support
- Operating temperature range: from -10°C to 70°C
- Module dimensions: 47 x 22 mm

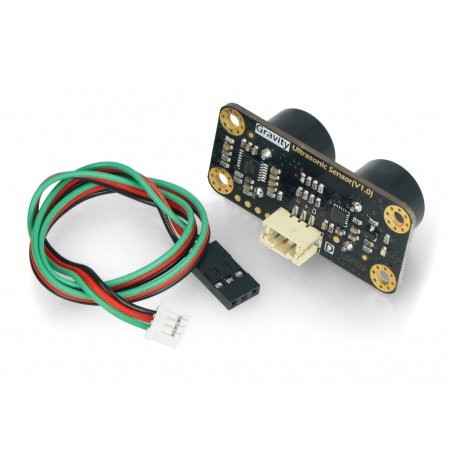

Contents of set
- Gravity - ultrasonic distance sensor TRIG URM09
- Connection cable Gravity
In our assortment you can also find othersensors with Gravity connector. We invite you to familiarize yourself with the offer.
