Product description: Gravity - Speech Synthesis Module - speech synthesis module - English and Chinese language support - DFRobot DFR0760

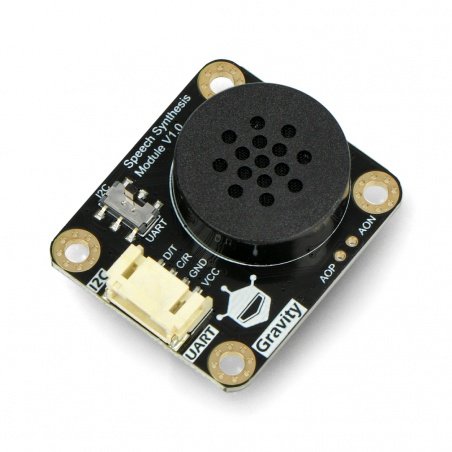

Speech Synthesis Module isa speech synthesis module thatsupports two languages -EnglishandChinese. Manufactured by DFRobot, it uses theI2CandUARTinterface to communicate with the controller module. Once connected, the module converts the written text into speech - it is equipped with a loudspeaker, so you do not have to buy it separately. In addition, there is aGravityconnector on the board.
Suggested use
- Voice broadcast
- Voice prompt and automatic text reading
- Robot voice
- Text-to-speech processing
Speech Synthesis Module equipped with a Gravity connector for convenient connection.
The product is compatible with Arduino
A detailed user guideis available on the manufacturer's website, which makes it much easier to start working with the module. It contains, among others, a description of the leads, connection instructions, as well as programming facilities in the form of a library and sample program codes for Arduino.
Scheme of connection of the Speech Synthesis Module with the board from DFRobot, which is a derivative of Arduino. The plate can be purchased separately.

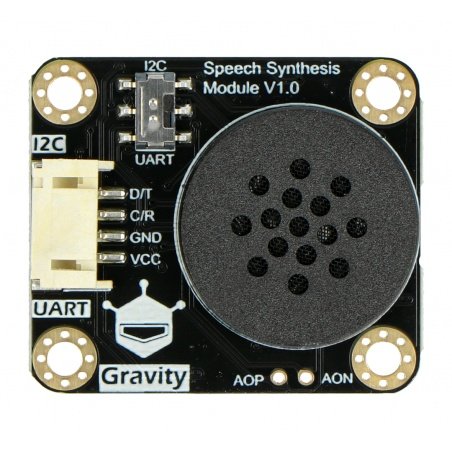

Description of the pins, speech synthesis module from DFRobot
- D / T:
- D - SDA - data line of the I2C interface
- T - TX - UART interface line
- C / R:
- C - SCL - clock line of the I2C interface
- R - RX - UART interface line
- GND - the ground of the system
- VCC - power pin from 3.3 V to 5 V
- AOP - Audio Out (+)
- AON - audio output (-)
Technical specification of the Speech Synthesis Module
- Type: speech synthesis module
- Supported languages: English and Chinese
- Module power supply: from 3.3 V to 5 V
- Working current: <50 ma="" li="">
- Communication interface: I2C / UART
- Connector technology: Gravity
- Operating temperature range: -40 ° C to 85 ° C
- Operating humidity range: 5% to 85% RH
- Module dimensions: 37 x 32 mm

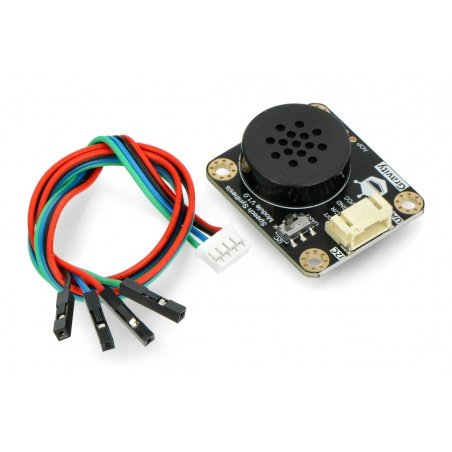

Kit contents
- Gravity - Speech Synthesis Module - speech synthesis module
- Gravity connection cable
