Gravity - Speech Synthesis Module - English and Chinese language support - DFRobot DFR0760

Index: DFR-19377 EAN: 6959420918485

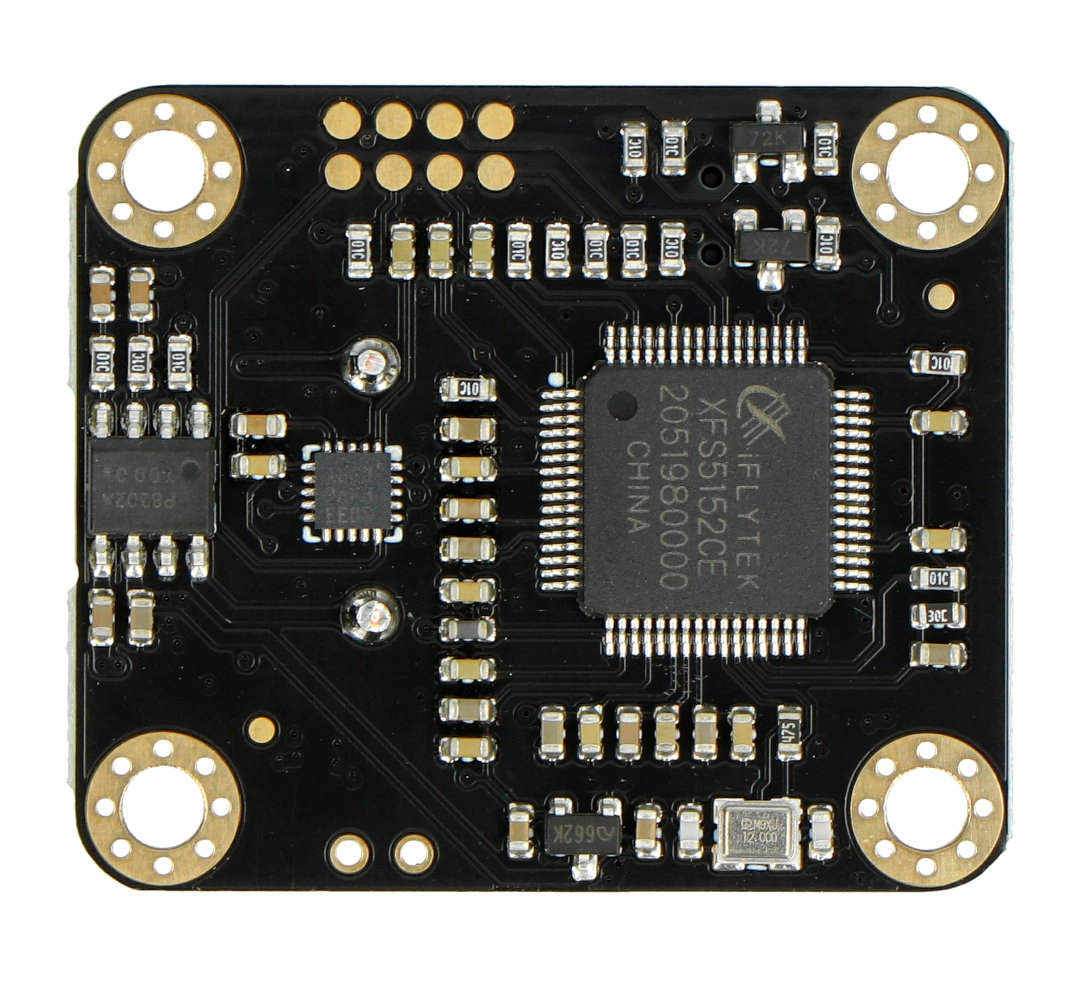

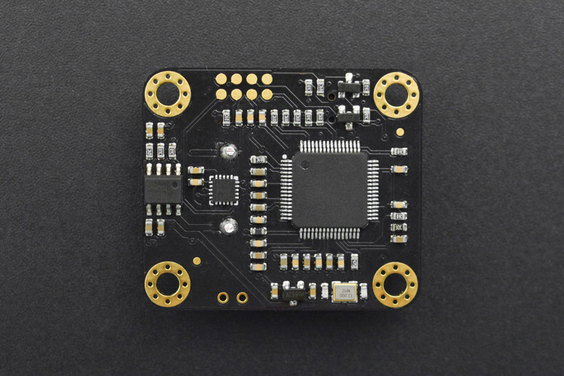

Speech Synthesis Module is a speech synthesis module that supports two languages - English and Chinese . It uses the I2C and UART interface to communicate with the controller module. Once connected, the module converts the written text into speech - it is equipped with a loudspeaker, so you do not have to buy it separately. In addition, there is a Gravity connector on the board.
Gravity - Speech Synthesis Module - English and Chinese language support - DFRobot DFR0760
€37.90
€30.81 tax excl.
Waiting time: 4-6 weeks
Only on request
PayPal payment
Manufacturer: DFRobot
Compatibility: Arduino

Product description: Gravity - Speech Synthesis Module - speech synthesis module - English and Chinese language support - DFRobot DFR0760

Speech Synthesis Module isa speech synthesis module thatsupports two languages -EnglishandChinese. Manufactured by DFRobot, it uses theI2CandUARTinterface to communicate with the controller module. Once connected, the module converts the written text into speech - it is equipped with a loudspeaker, so you do not have to buy it separately. In addition, there is aGravityconnector on the board.

Suggested use

  • Voice broadcast
  • Voice prompt and automatic text reading
  • Robot voice
  • Text-to-speech processing

Speech Synthesis Module wyposażony w złącze Gravity pozwalające na wygodne połączenie.
Speech Synthesis Module equipped with a Gravity connector for convenient connection.

The product is compatible with Arduino

A detailed user guideis available on the manufacturer's website, which makes it much easier to start working with the module. It contains, among others, a description of the leads, connection instructions, as well as programming facilities in the form of a library and sample program codes for Arduino.

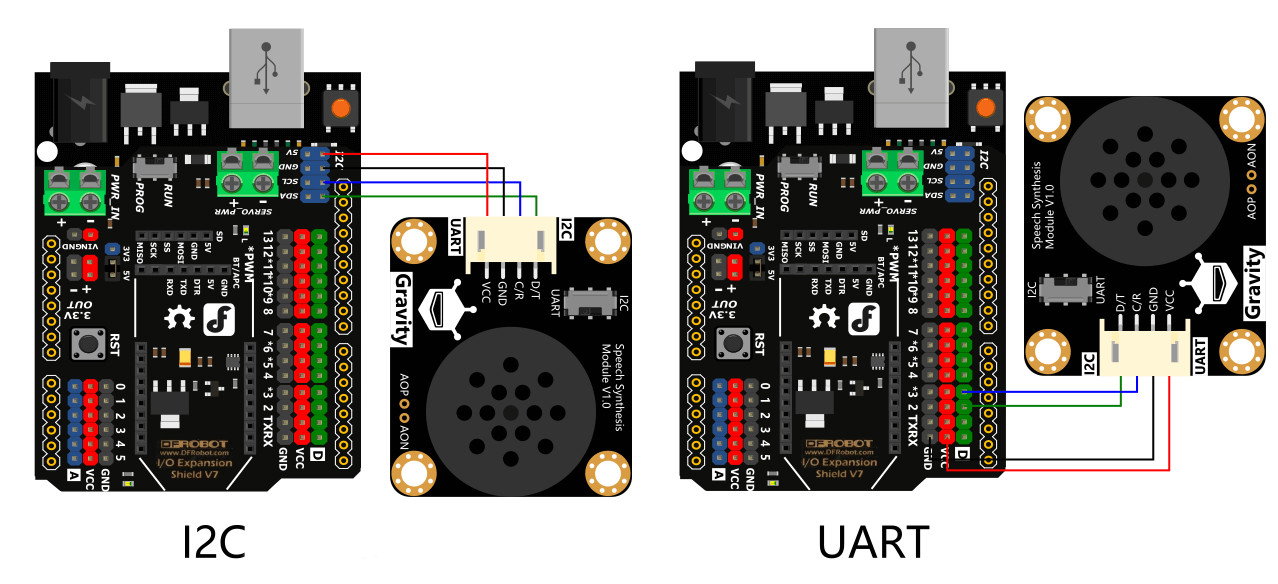

Scheme of connection of the Speech Synthesis Module with the board from DFRobot, which is a derivative of Arduino. The plate can be purchased separately.

Scheme of connection of the Speech Synthesis Module with the board from DFRobot, which is a derivative of Arduino. The plate can be purchased separately.

Description of the pins, speech synthesis module from DFRobot

  • D / T:
    • D - SDA - data line of the I2C interface
    • T - TX - UART interface line
  • C / R:
    • C - SCL - clock line of the I2C interface
    • R - RX - UART interface line
  • GND - the ground of the system
  • VCC - power pin from 3.3 V to 5 V
  • AOP - Audio Out (+)
  • AON - audio output (-)

Technical specification of the Speech Synthesis Module

  • Type: speech synthesis module
  • Supported languages: English and Chinese
  • Module power supply: from 3.3 V to 5 V
  • Working current: <50 ma="" li="">
  • Communication interface: I2C / UART
  • Connector technology: Gravity
  • Operating temperature range: -40 ° C to 85 ° C
  • Operating humidity range: 5% to 85% RH
  • Module dimensions: 37 x 32 mm

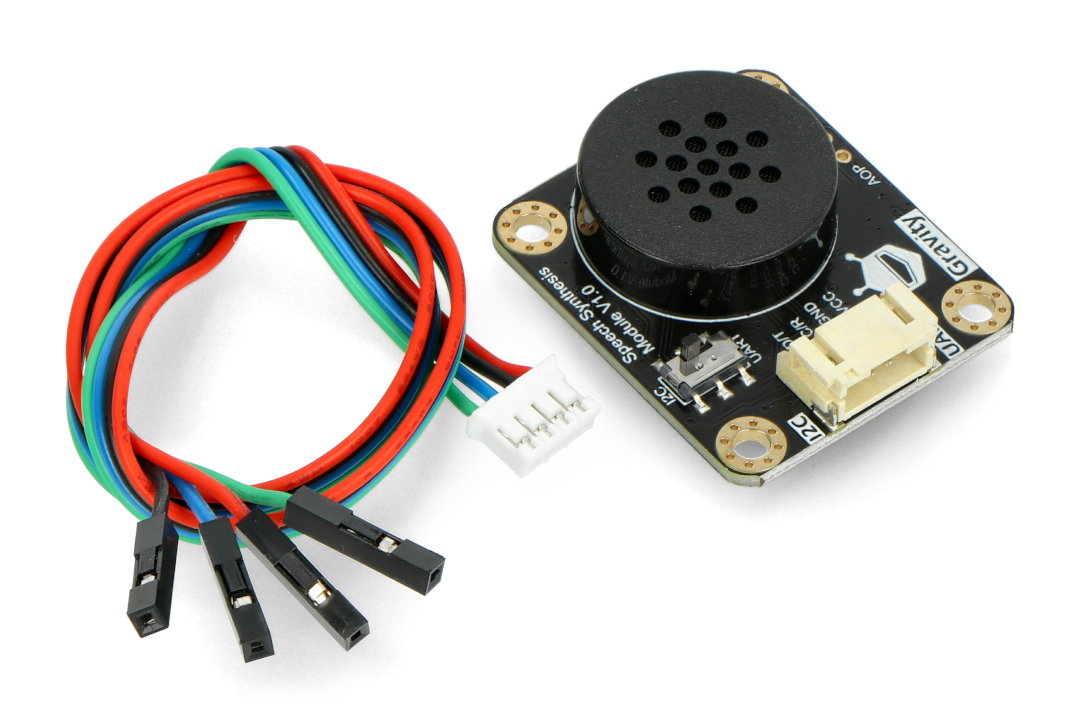

Kit contents

  • Gravity - Speech Synthesis Module - speech synthesis module
  • Gravity connection cable
Modul podporuje dva jazyky - angličtinu a čínštinu.


The module supports two languages - English and Chinese.

Package width 5.5 cm
Package height 2.5 cm
Package depth 6 cm
Package weight 0.019 kg
